仿真失败一般问题
发布于 2025-02-13 22:03:22
查看 16过去545天

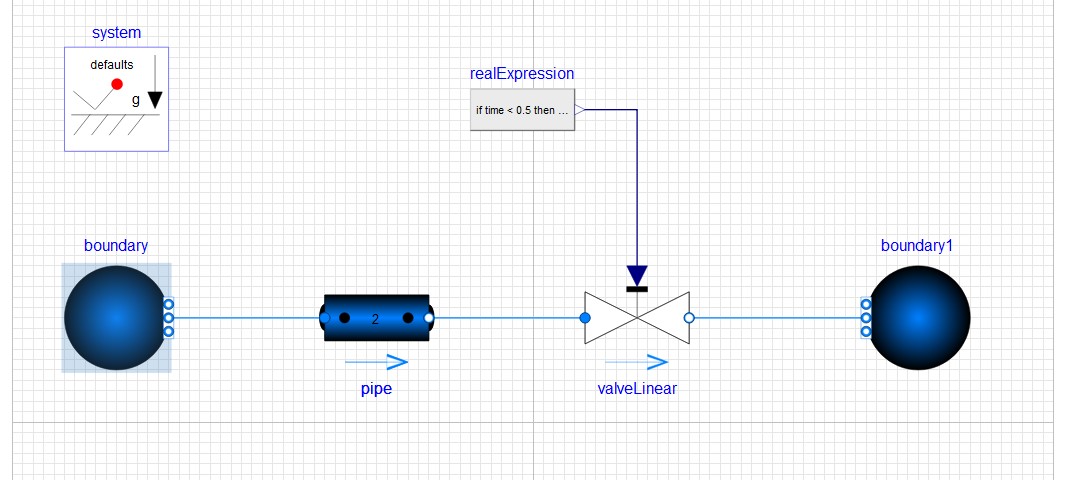

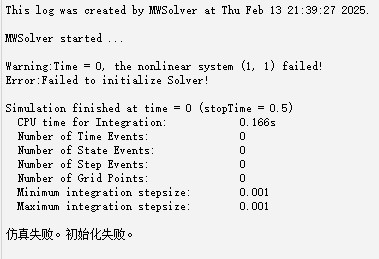

跟随b站第二节的管道加阀门部分，检查的没问题，为啥仿真是失败？
【2-流体系统建模仿真应用】 https://www.bilibili.com/video/BV16C4y1b7M7/?share_source=copy_web&vd_source=cc5509b6f5458d71cb05bb678ec3b6c9
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
