modelica标准库或者同元的模型库如何使用自己定义的换热模型
一般问题
发布于 2025-02-13 23:51:02
查看 14过去500天

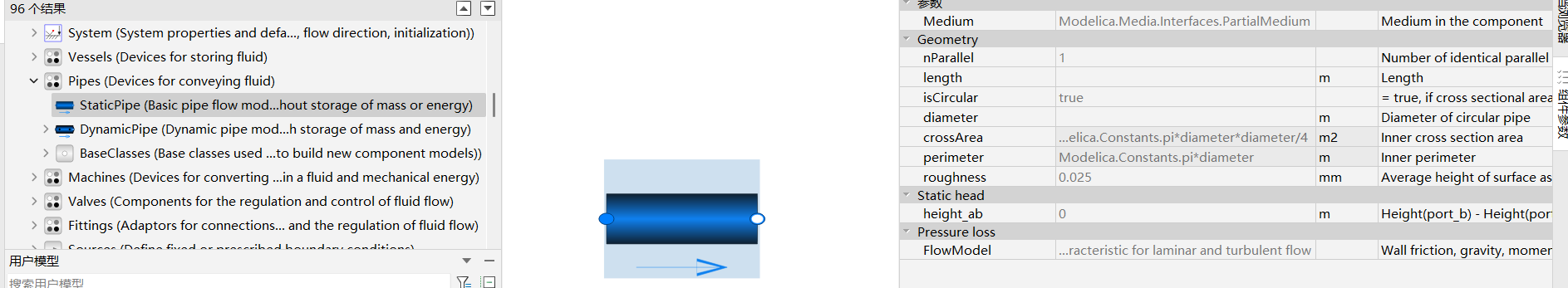

当所提供的模型都不符合条件时，需要自己写公式来计算，如何在提供的模型中增加或者修改公式内容呢？，例如管道模型
这里我想增添螺旋管的修正项，该如何修改呢？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
当所提供的模型都不符合条件时，需要自己写公式来计算，如何在提供的模型中增加或者修改公式内容呢？，例如管道模型
这里我想增添螺旋管的修正项，该如何修改呢？
您好，对于标准库，可以直接将该管道模型复制之后进行修改，而商业库中的模型进行了加密处理，无法进行修改。
