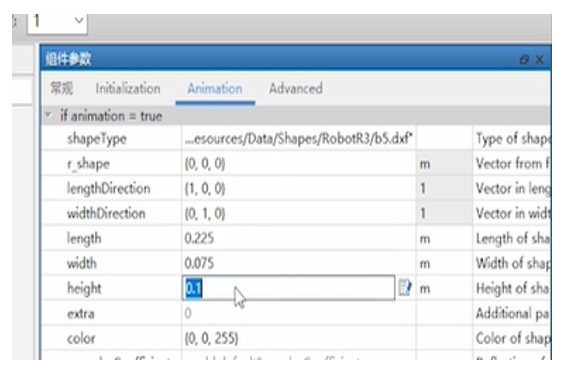

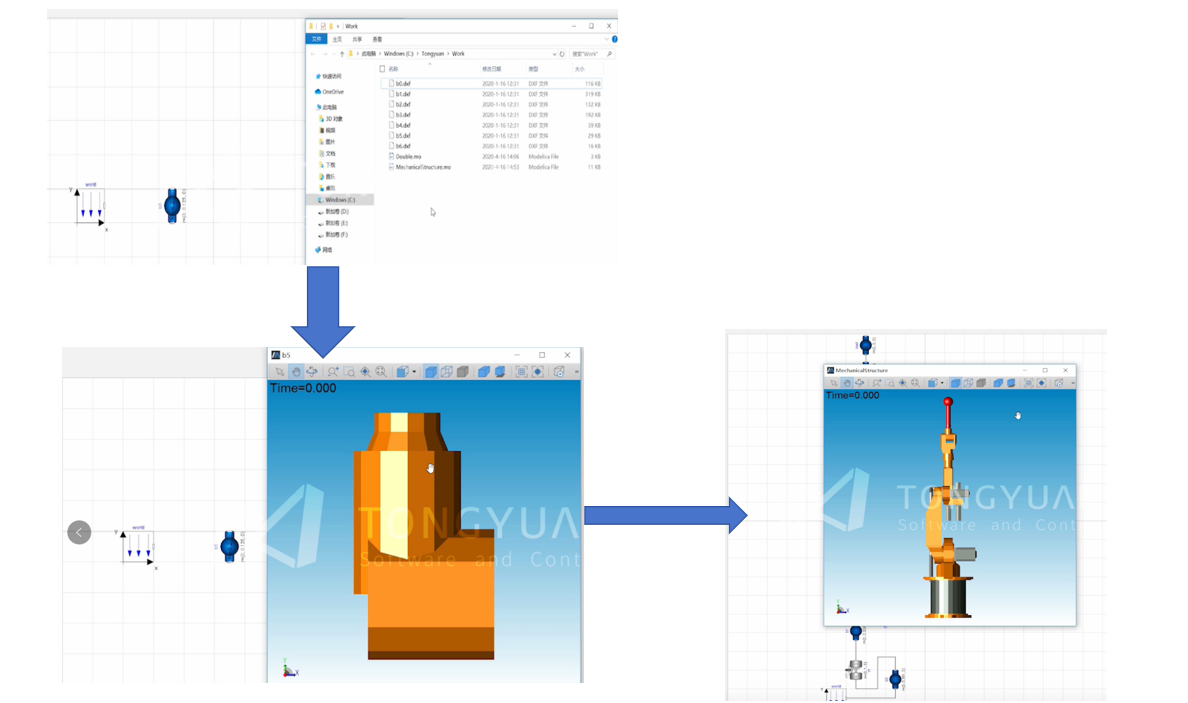

三维单体模型和bodyshape关联一般问题xzg发布于 2025-02-19 17:08:32查看 34过去494天 如何像图片中一样设置自己绘制的机器人三维单体模型和bodyshape关联，在Animation中设置设置路径时找不到自己的dxf文件 所属专栏：Modelica语言产品信息：Sysplorer CAD 工具箱系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
MoHub发布于 2025-02-19 17:40:43您好可以使用CAD工具箱，直接将CAD模型导入到Sysplorer中，不再需要额外设置参数，具体使用方法可见此链接与用户手册CAD 工具箱。 0 0回复
