如何实现三维模型和bodyshape关联，实现机械手三维模型显示
一般问题
发布于 2025-02-20 09:28:17
查看 23过去494天

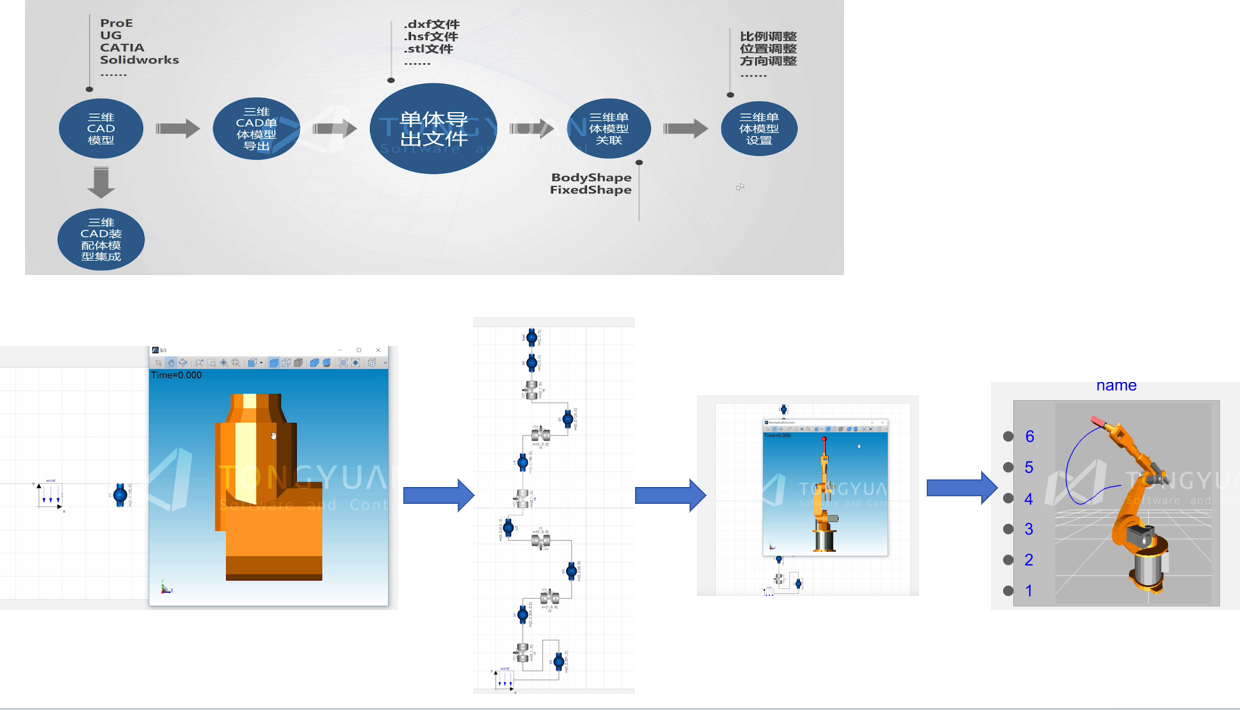

按照图片中的步骤实现机械手各个关节三维模型和bodyshape关联，完成机械手机构模型，实现机械手的三维模型显示，并封装成一个独立的组件可以进行调用。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer CAD 工具箱
1 个附件(2362kb) 专栏
标签
高校专区
1 个附件(2362kb) 全部回答 2
发布于 2025-02-20 17:47:20
您好，建议您参考此贴下面的回答，使用CAD工具箱将三维模型转换为 Modelica 模型的方式效率更高，执行操作更为简单。
发布于 2025-02-21 14:47:31

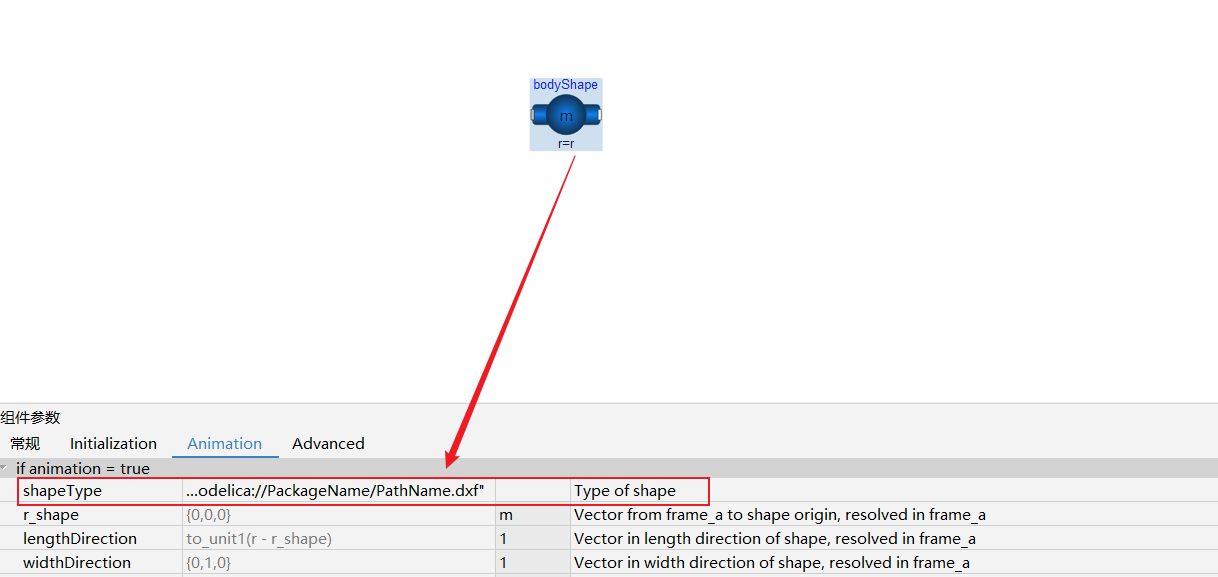

如果您要将dxf文件与bodyshape组件相关联，可以将dxf文件所在的路径输入到bodyshape的shapeType中，如下图所示。
