四轮小车模型-车轮与平面接触穿模问题
一般问题
发布于 2025-03-06 21:51:50
查看 37过去479天
搭建了一个轨道小车模型，期望通过cylinderRectangle_Contact接触模型来实现车轮圆柱面和轨道平面的碰撞与接触，仿真结果中虽然有一定的效果，但是存在明显的穿模问题，几经修改参数后都没有效果，请问这是什么原因导致的呢？该如何修正解决？谢谢！

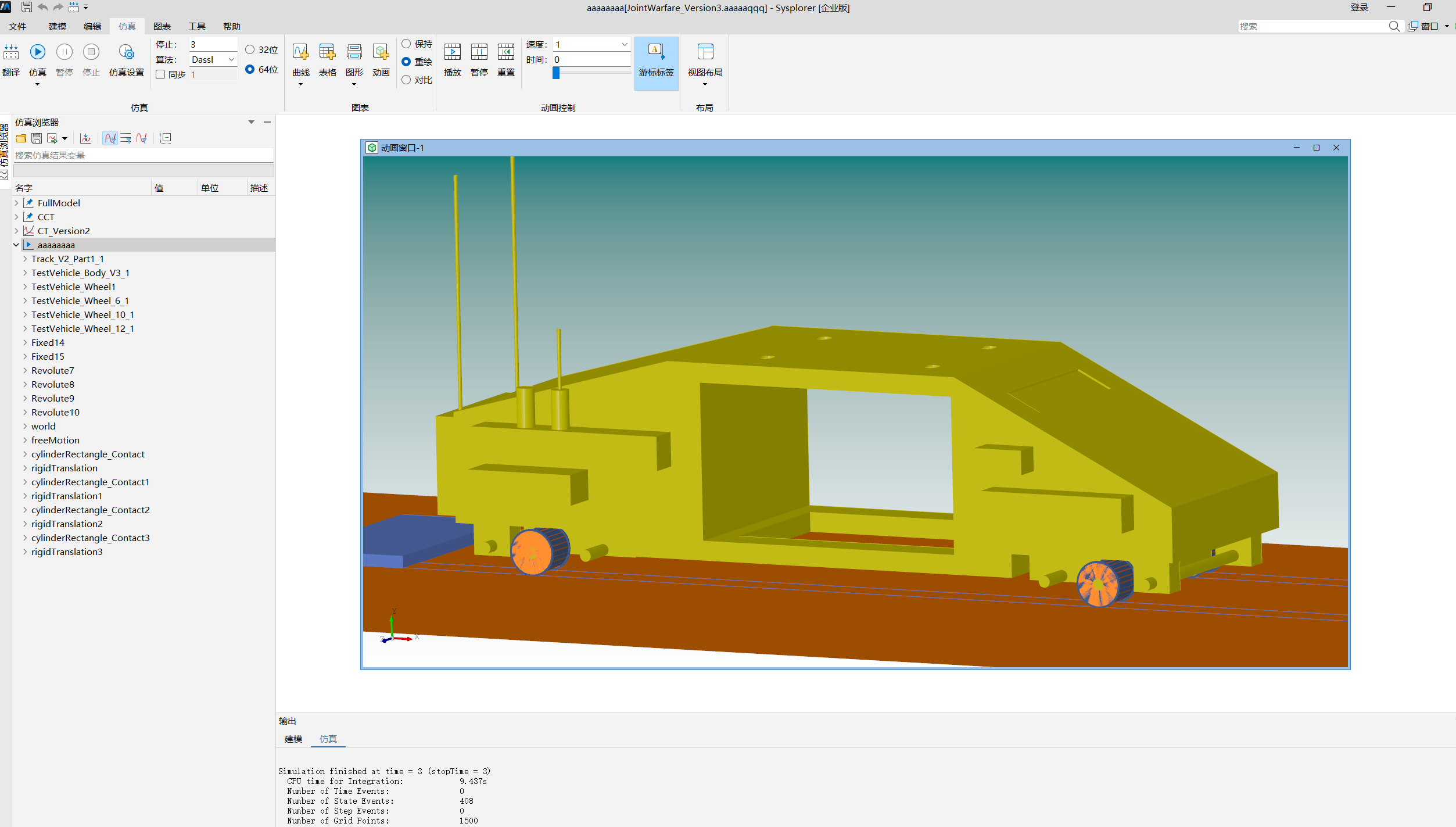

初始状态：小车略微有悬空，仿真开始后会掉到平面上弹跳起来

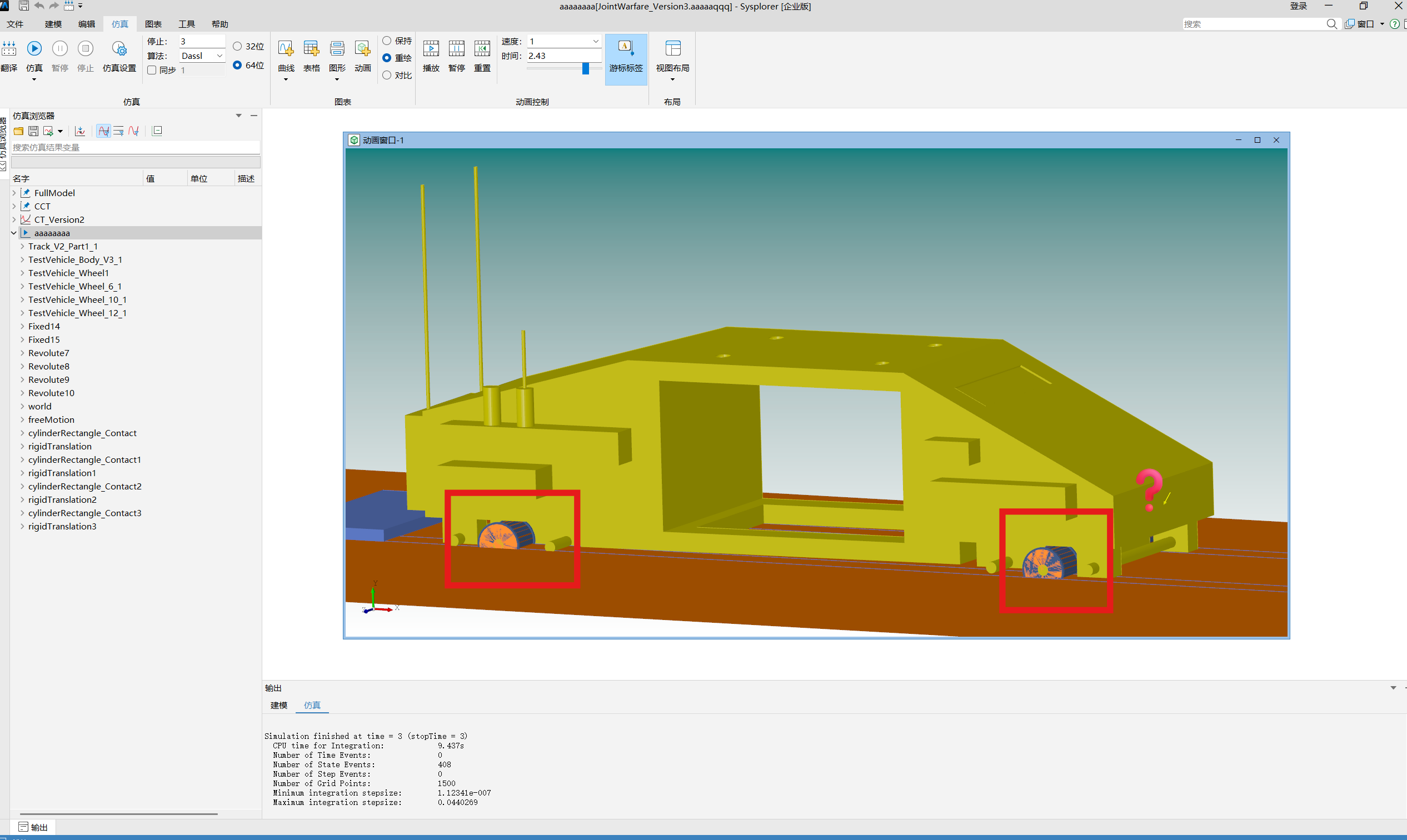

与平面接触后：车轮有相当部分直接没入接触平面，形成明显的穿模

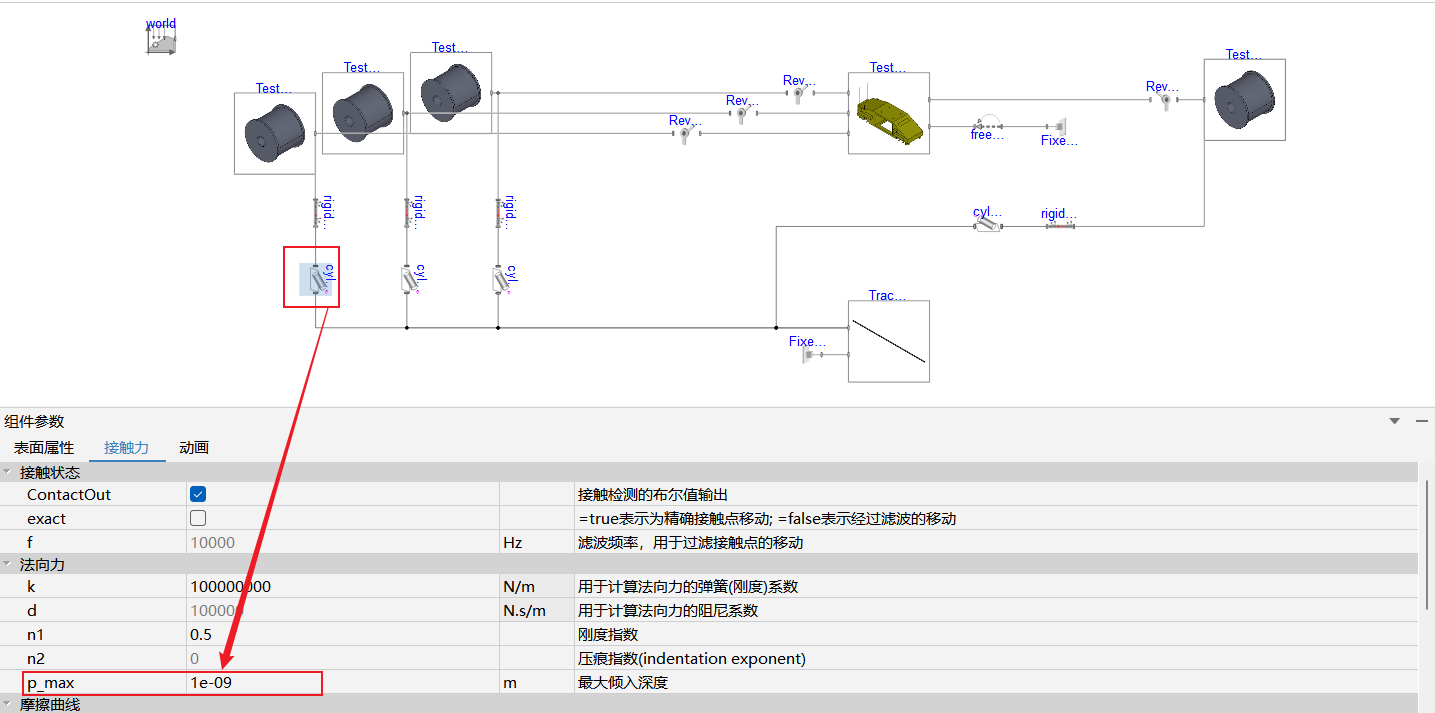

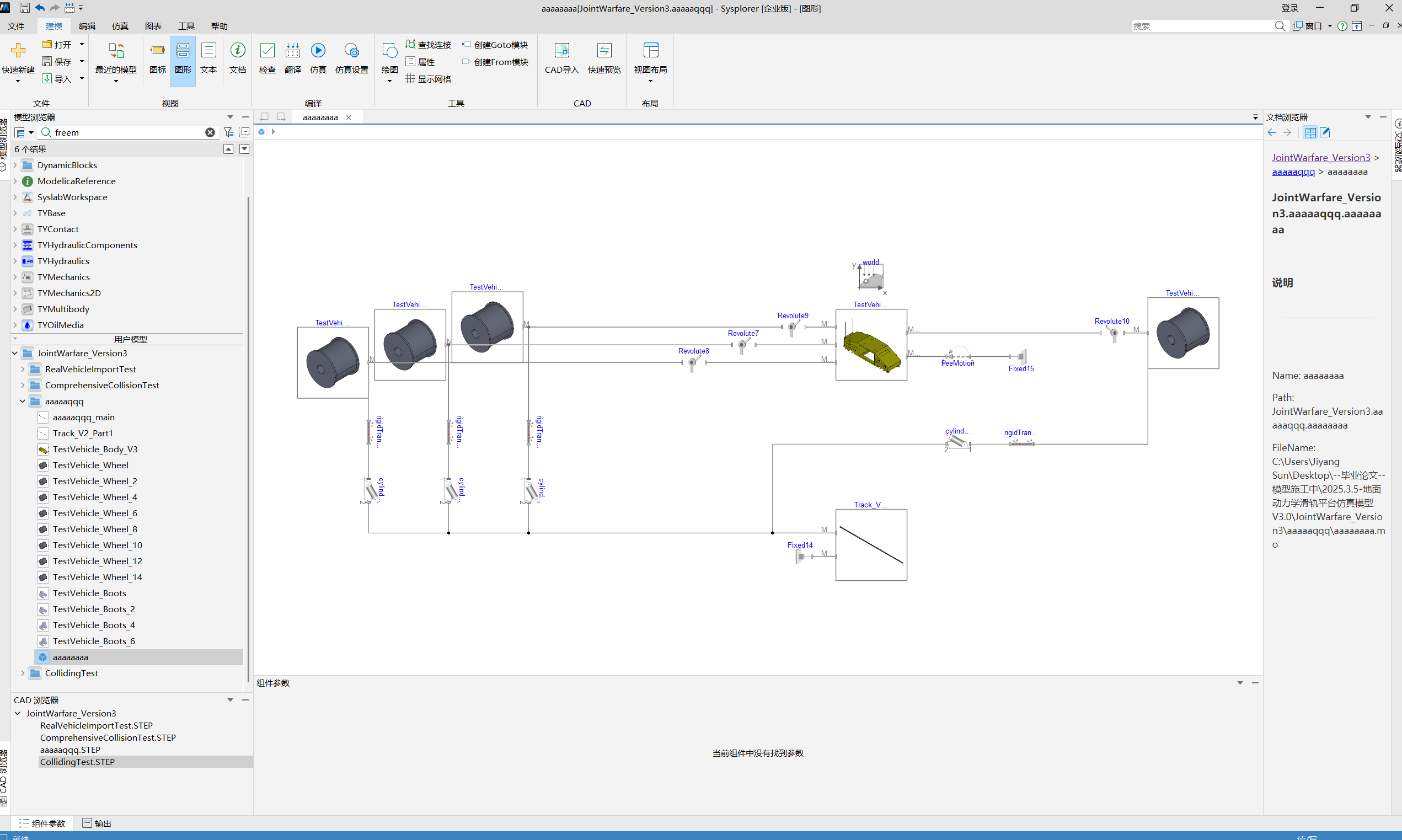

模型搭建界面：
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(718kb)
