仿真单步求解失败
一般问题
发布于 2025-03-13 19:58:00
查看 9过去472天

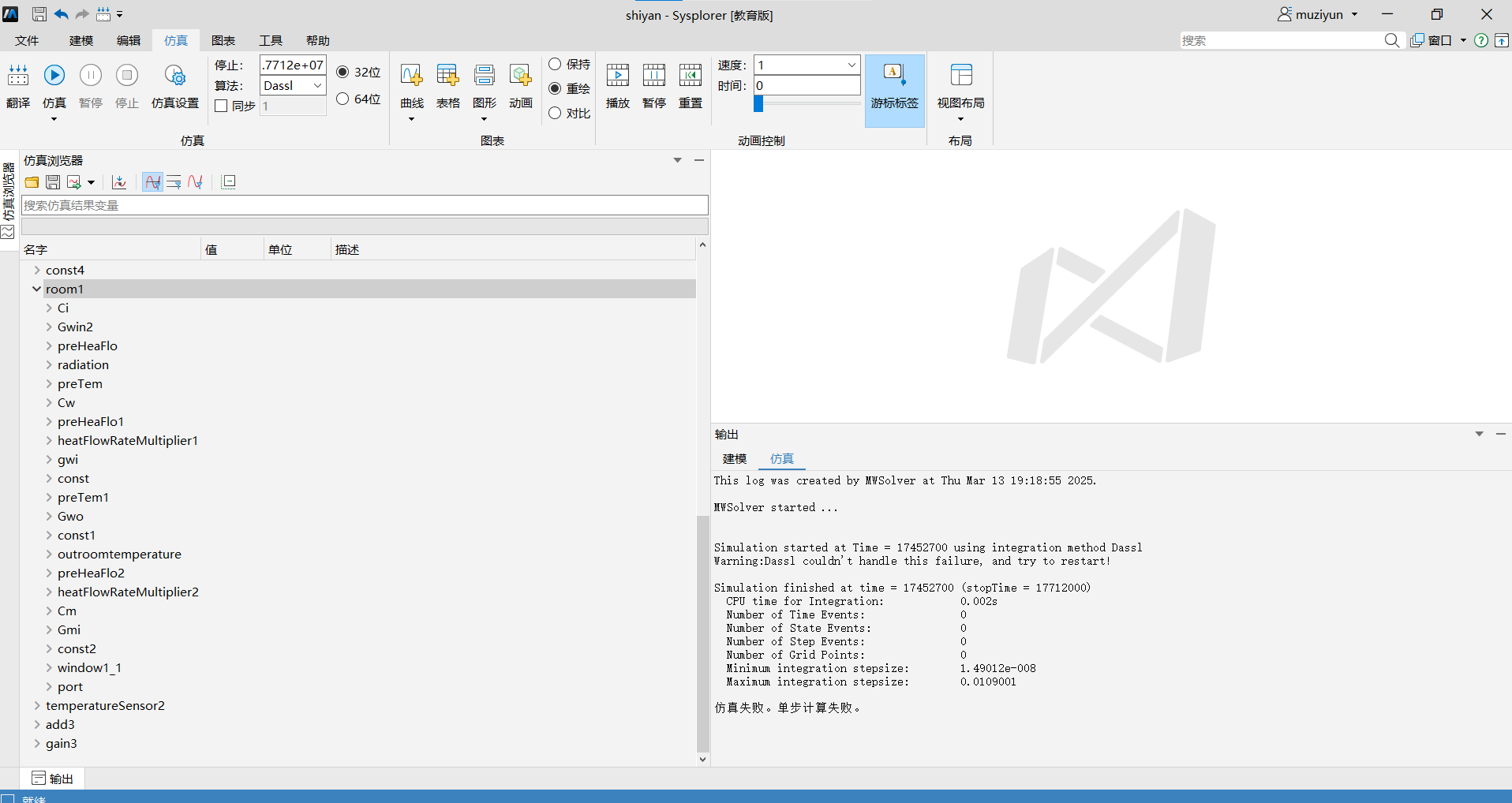

模型检查，翻译都没错，仿真不出来，显示单步求解失败，请问这种情况是什么原因，该怎么解决
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
模型检查，翻译都没错，仿真不出来，显示单步求解失败，请问这种情况是什么原因，该怎么解决
您好，您可以通过勾选仿真设置中调试栏下的方程诊断信息，查看仿真输出日志，根据输出信息进行方程调整。
您好，您可以通过勾选仿真设置中调试栏下的方程诊断信息，查看仿真输出日志，根据输出信息进行方程调整。
