仿真单步计算失败问题
一般问题
发布于 2025-03-14 12:17:18
查看 24过去471天

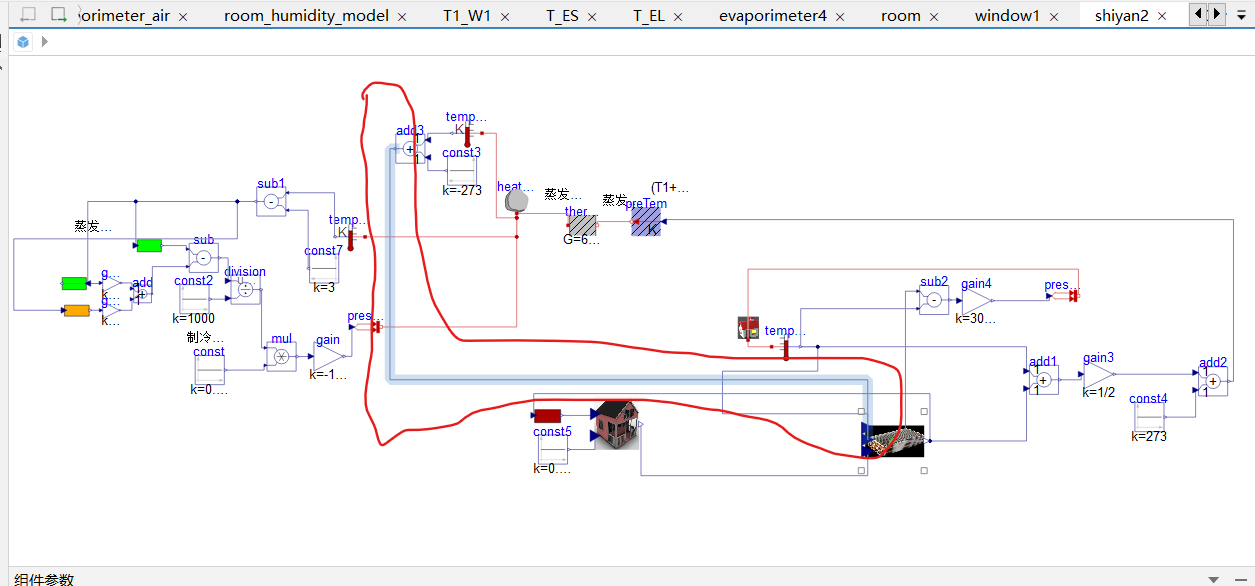

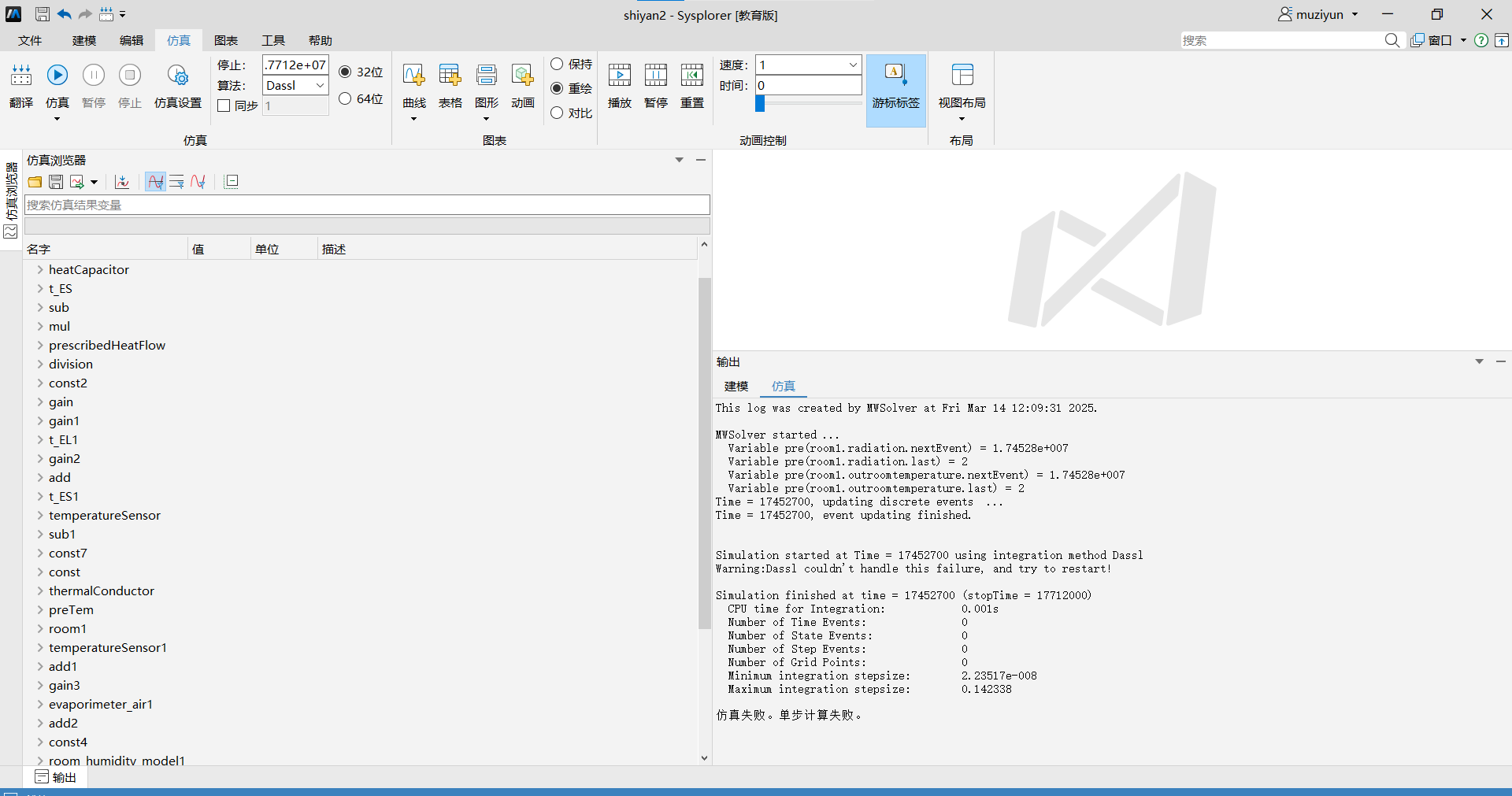

你好，关于上一个问题我还没有解决，在仿真设置的调试那里我已经调整了，我逐步筛查了下，是因为这个热容的温度传感器的输出连接到下面的模块的输入，当连上的时候，就会报错如下：
但是当我用一个常数模块连到下面这个模块的输入时，就不会报错，然后上面那个温度传感器的输出是在0-5℃之间，我这个常数模块的值也设置在这范围内，然后是没有报错的，主要关于这个报错的内容我不太理解，不知道改该如何修改，才能使得上面那个热容的温度可以稳定的输出到下面模块的输入处
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
