发布于 2025-03-19 09:26:13
查看 10过去467天
所属专栏:Sysplorer基础平台
产品信息:Sysplorer系统建模仿真环境
控制工程
全部回答 1

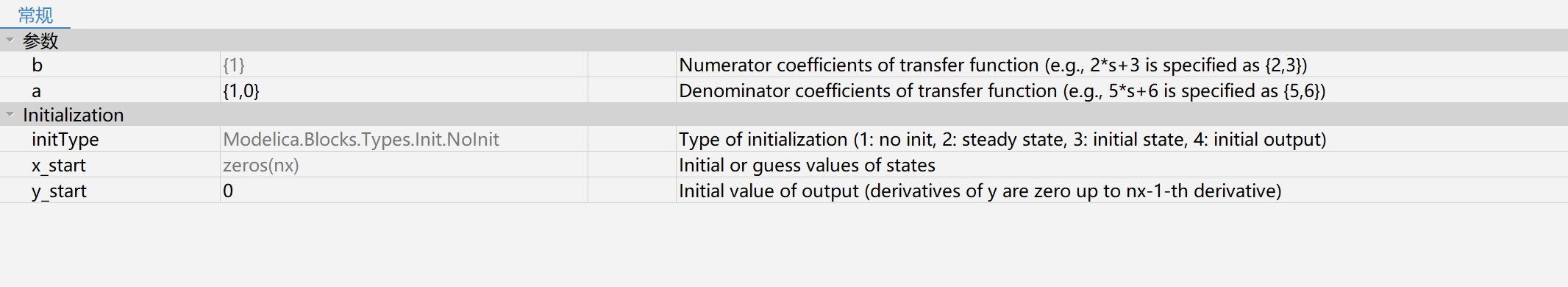

发布于 2025-03-19 10:34:55 您好,不同的初始值类型有不同含义
- No Init:不进行显式初始化,状态变量(如微分方程中的导数项)默认初始值为。
- Steady State:设置状态导数为零,不是初值,积分器输出是反求出来的,不一定是0。
- InitialState:用户直接指定状态变量的初始值
- InitialOutput:用户指定输出初始值y_start,系统反向计算对应的状态初始值。
