三相有源逆变一般问题
发布于 2025-03-30 08:45:21
查看 10过去591天

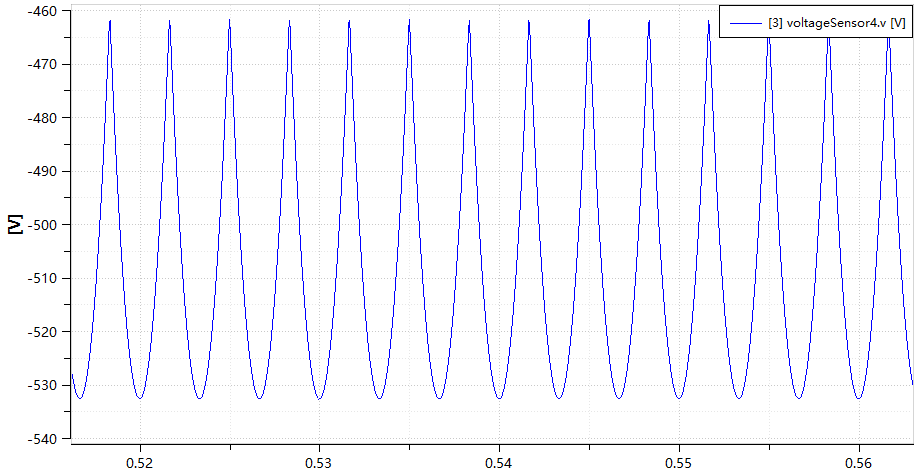

在设置触发脉冲延迟时间上面出现了一个问题，初始触发角应该是pi/2-pi时工作在逆变状态，但仿真过程中设置初始角为0可以实现逆变，为120°时不能工作在逆变状态是什么原因
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(13kb) 在设置触发脉冲延迟时间上面出现了一个问题，初始触发角应该是pi/2-pi时工作在逆变状态，但仿真过程中设置初始角为0可以实现逆变，为120°时不能工作在逆变状态是什么原因
1 个附件(13kb) 您好，可以尝试修改一下晶闸管的相关参数。
