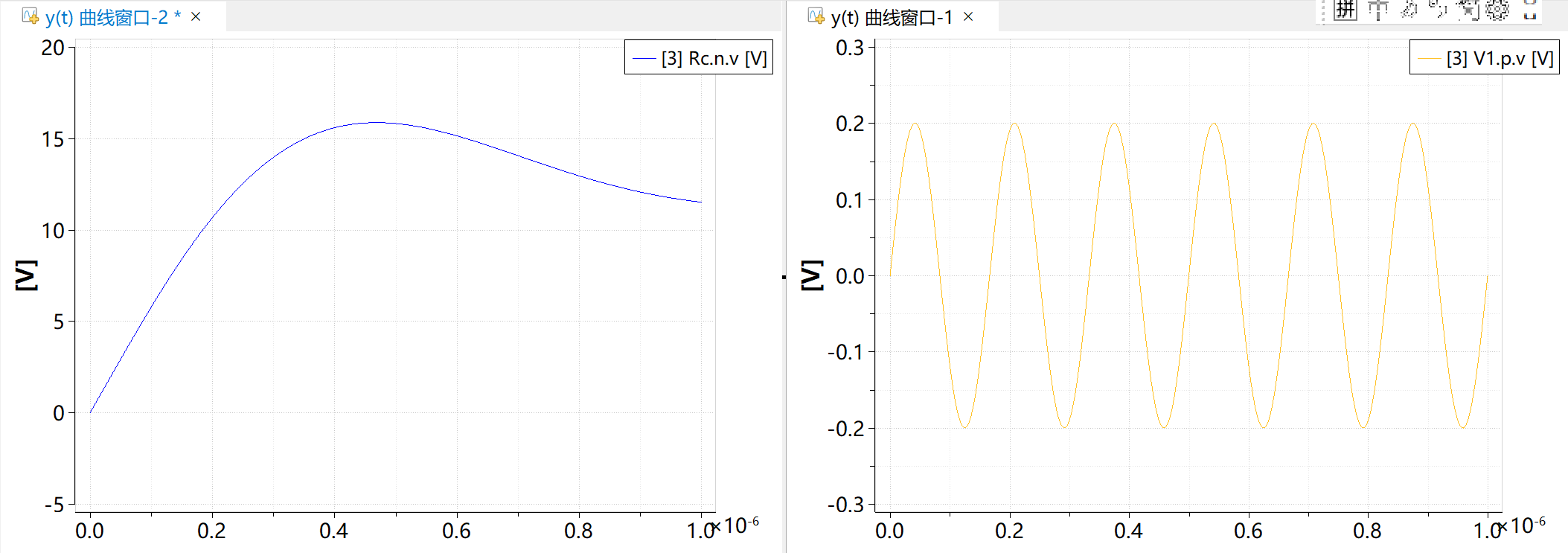

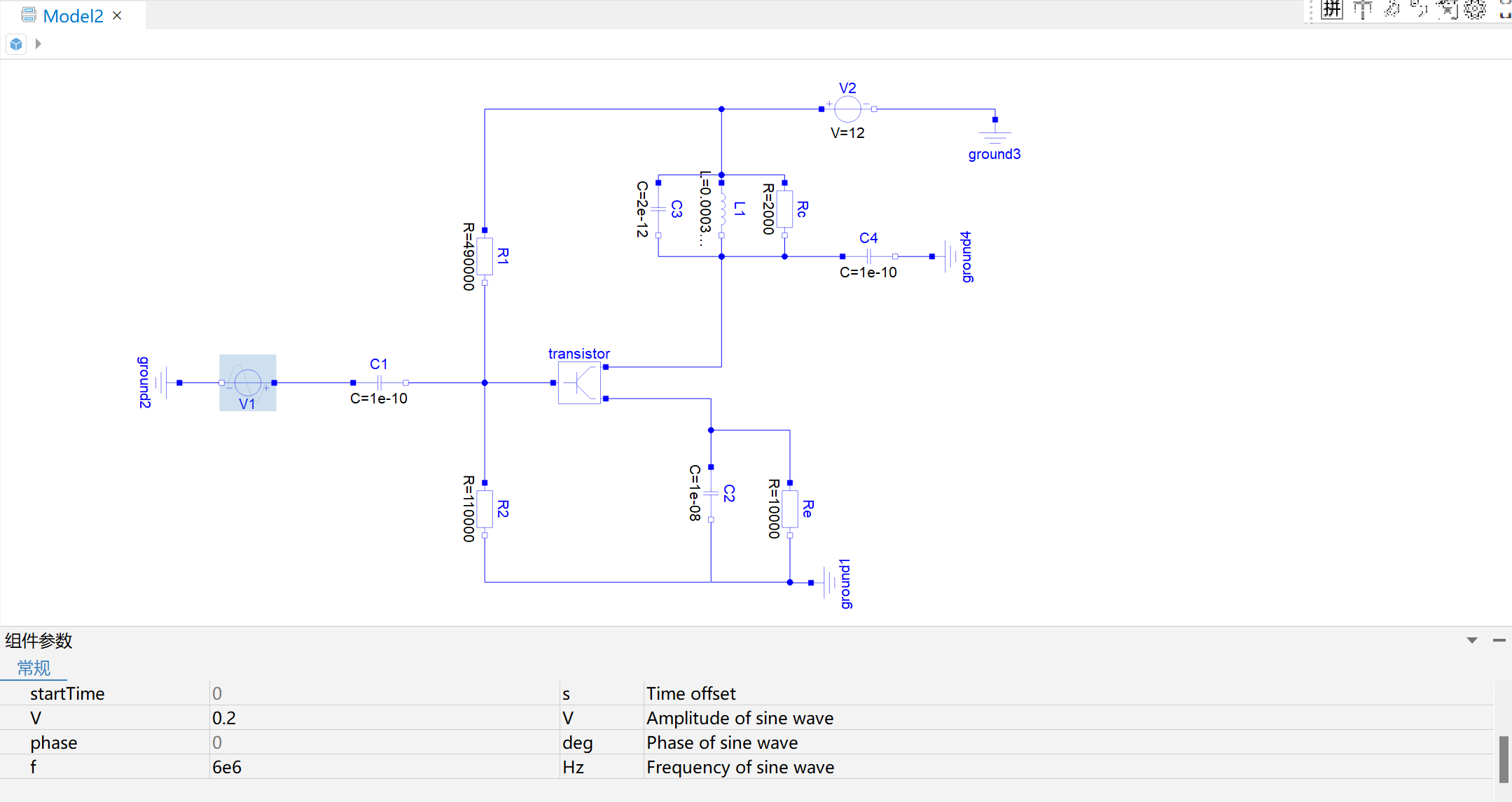

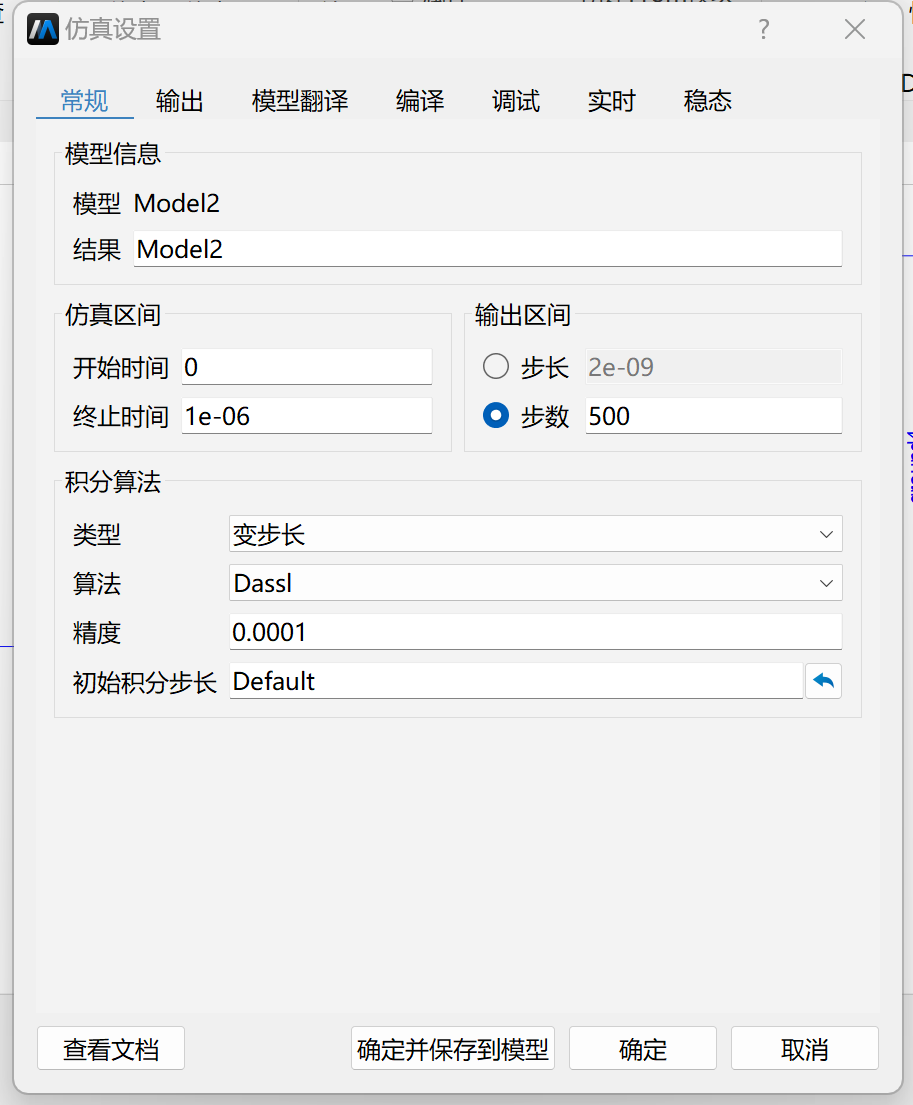

输出结果达不到预期一般问题zhangxianghua09发布于 2025-04-08 02:22:15查看 13过去447天功率放大器实验，为什么我输出的电压（Rc.n）频率与输入电压（V1）频率不一致（振幅也不是预期） 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境通信系统建模 1 个附件(6kb) Model2.mo5.34 KB 写回答 关注问题 点赞 0 踩 0 收藏 0
