如何给PMSM电机控制器输入数据（数据为excle格式）？
一般问题
发布于 2025-04-09 17:24:34
查看 10过去445天

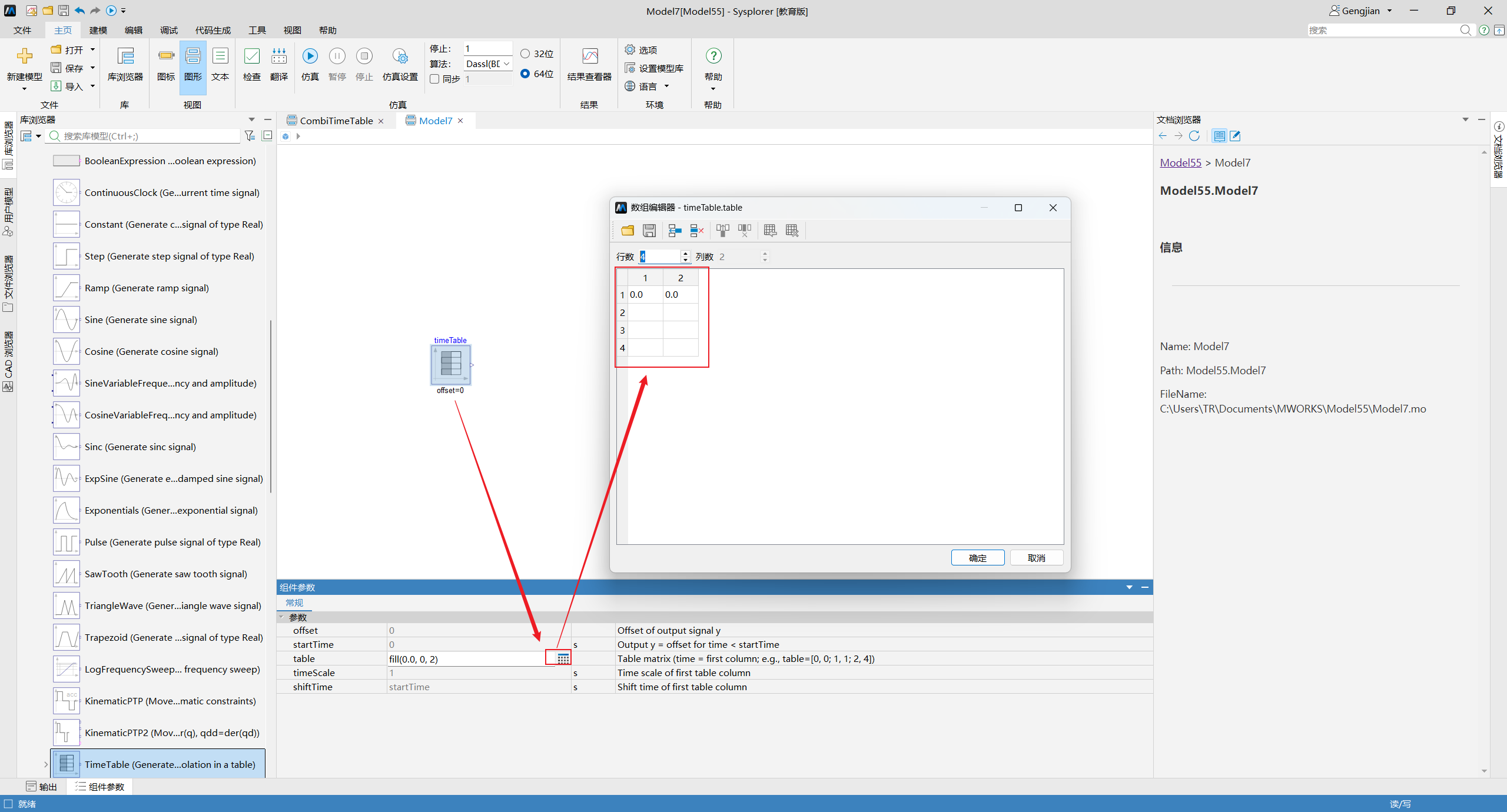

如何将一个excle文件输入给PMSM FOC控制器？用timeTable组件可行吗？如果可行的话，timetable组件里面的Table matrix (time = first column; e.g., table=[0, 0; 1, 1; 2, 4])一栏里面有两列，第一列和第二列分别代表什么数据呢？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
