两个仿真图形如何进行相减
一般问题
发布于 2025-04-11 19:32:33
查看 18过去443天

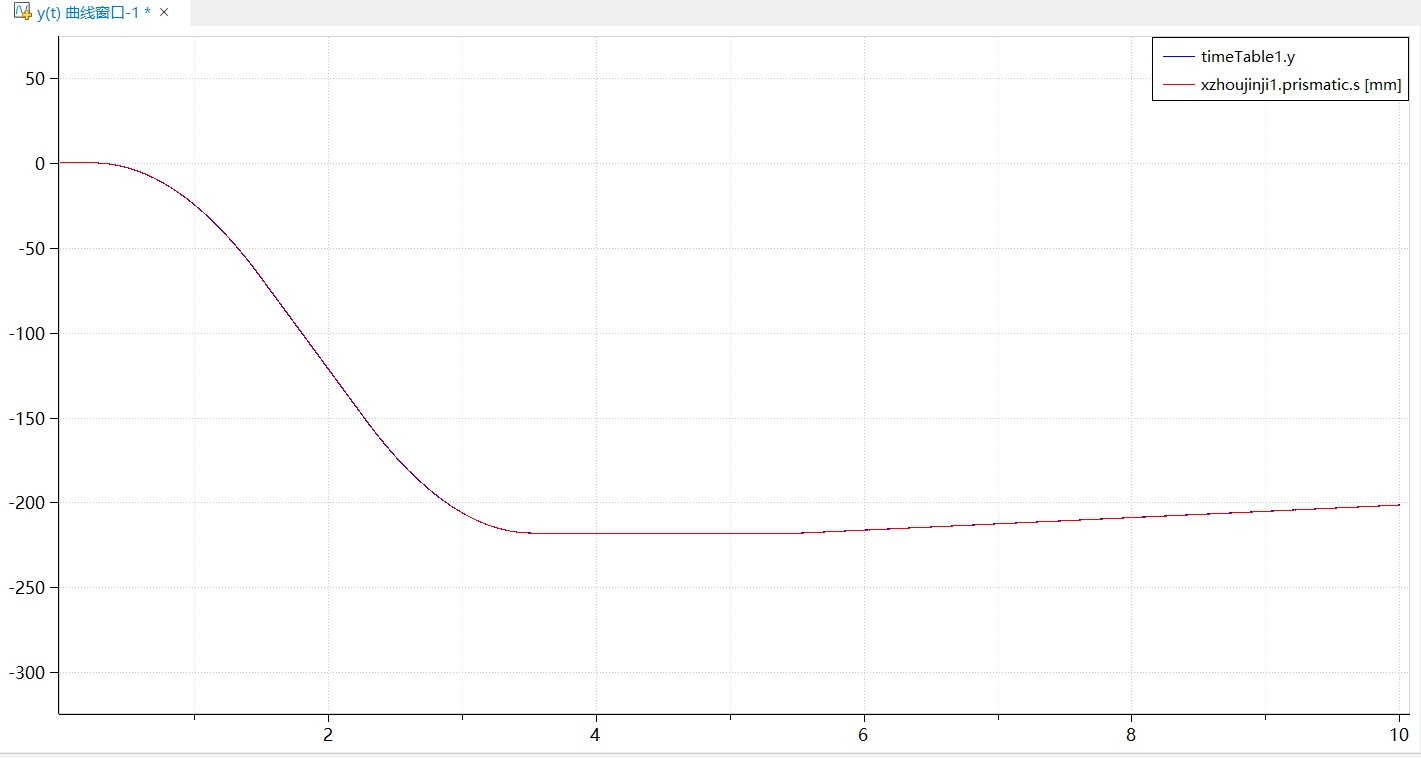

图中两个仿真图形中，蓝色是用timetable输入的数据没有单位，红色的是输出的单位是mm,两个数据相减后得到的图形中，默认蓝色的单位是m,如何能够将输入的蓝色数据单位改成mm呢？（蓝色输入的数据单位相减时默认为m）
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 2
发布于 2025-04-14 10:14:26
您好，当前曲线查看暂不支持进行数据处理，您可以将相关数据导出，然后使用其他绘图软件进行后处理操作。
发布于 2025-04-14 13:51:06
可以给一个单位换算常数，将蓝色曲线和常数曲线相乘后进行减法
