初值问题/MWSolver开启后报错
一般问题
发布于 2025-04-18 10:15:28
查看 18过去437天

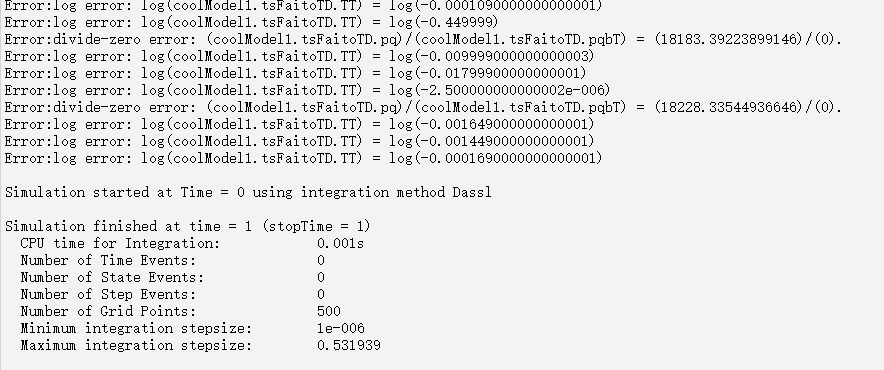

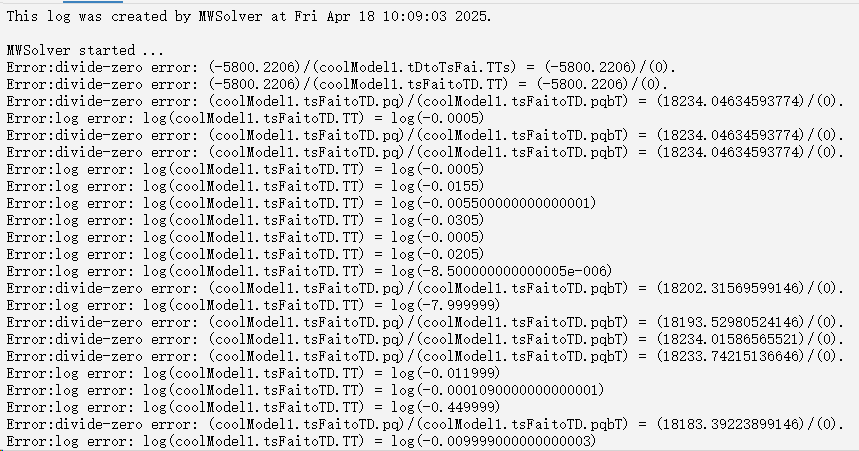

如题，在MWSolver Started后，Simulation Started前出现了如图的报错，检查了前后的初值应该是没问题的。
不过此问题暂时不影响模拟，不会导致模拟中断。
求教各位大佬，可否有办法消去这个报错。
所属专栏：Modelica语言
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
采纳的回答
发布于 2025-04-18 15:57:09
您好，模型中存在除零错误和负数求对数问题，建议使用max函数对相关变量值的范围进行限制。
全部回答 2
发布于 2025-04-18 10:18:07

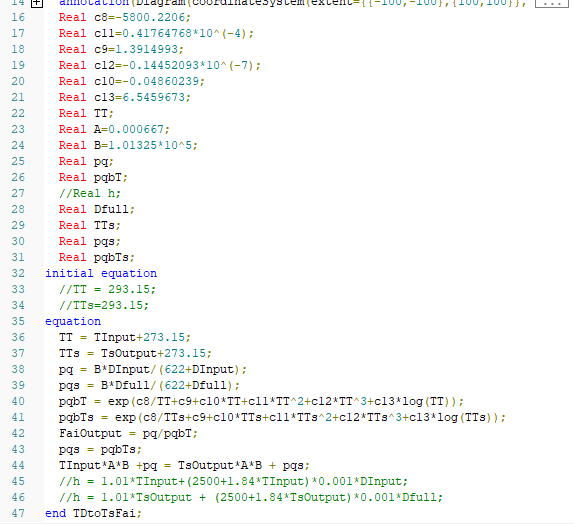

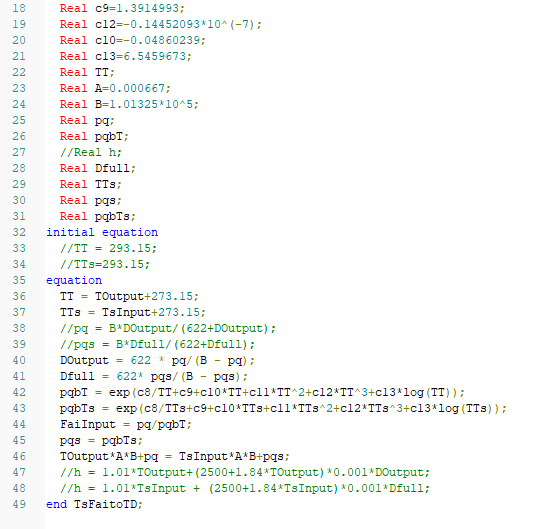

附上相关代码：
发布于 2025-04-18 15:57:09
您好，模型中存在除零错误和负数求对数问题，建议使用max函数对相关变量值的范围进行限制。
