想实现参数的统一管理
一般问题
发布于 2025-04-23 14:32:02
查看 30过去431天

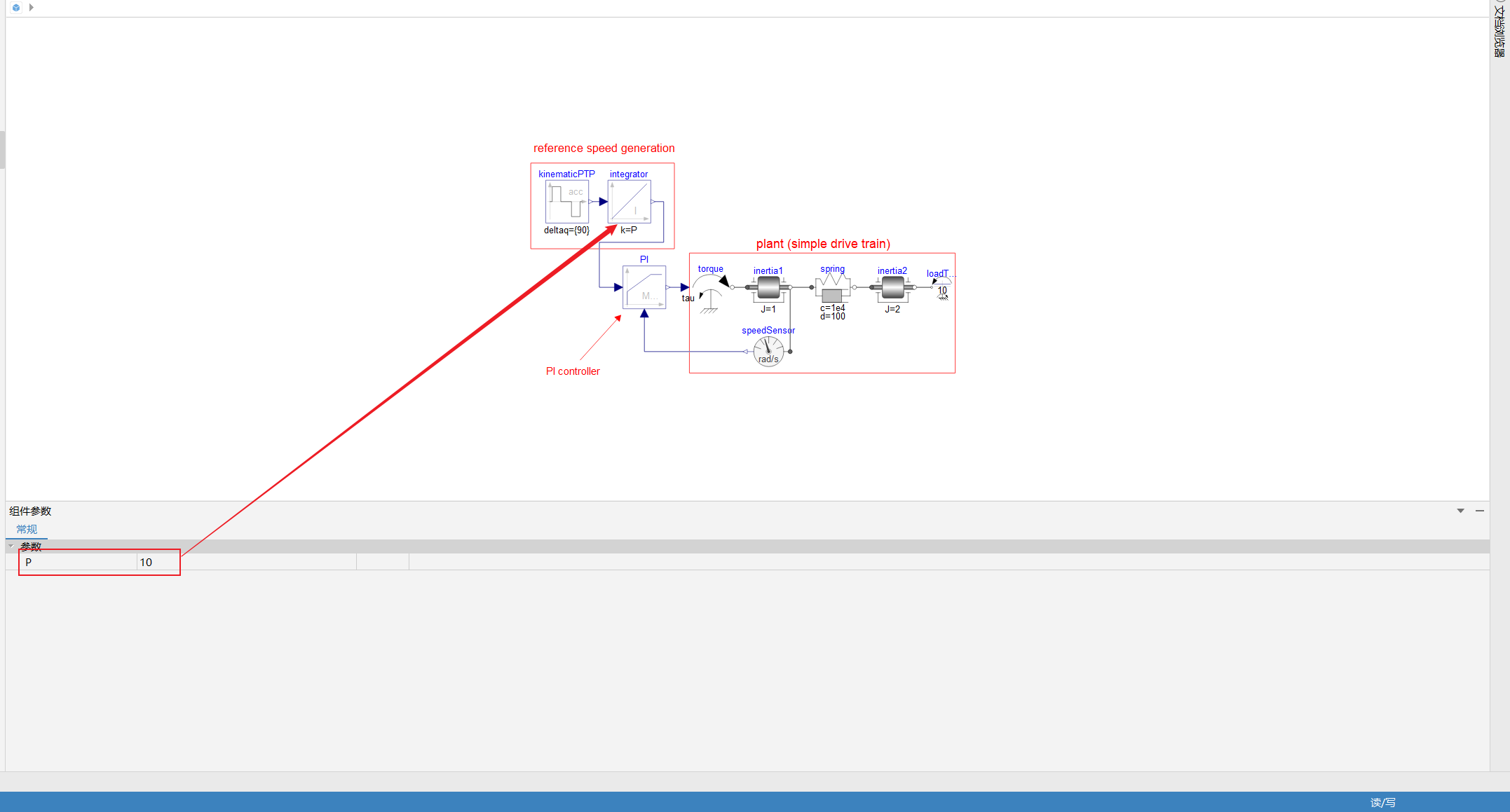

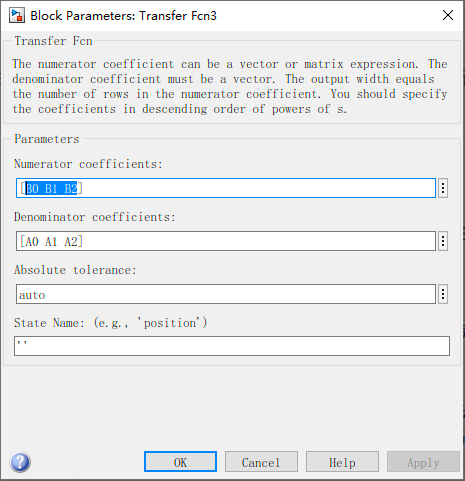

就类似于在matlab环境中，对于复杂的多参数模型，一般会在建立模型后，将模型中的参数变量化，如图所示，
然后建立一个参数文件，在每次仿真开始前，先运行对应的参数文件，将参数输入到内存空间，然后再进行仿真。这个能实现类似的功能吗
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 2
发布于 2025-04-23 16:44:00
可不可以写一个record模型，然后把这个模型放到你实际应用的模型中，然后访问这个record数据进行计算，这样之后的计算只需要把这个record用重声明替换掉就可以进行新参数的仿真了呢？
发布于 2025-04-23 20:06:33
您好，可以直接在系统模型中定义系统参数 parameter，然后将相应的参数传递至各个组件即可。
