有关于TYcontact中的车轮滚动地面接触摩擦模型相关问题
一般问题
发布于 2025-04-24 12:17:34
查看 26过去431天

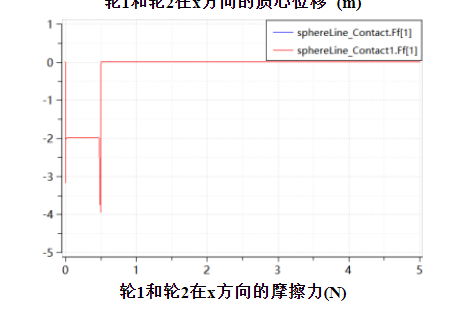

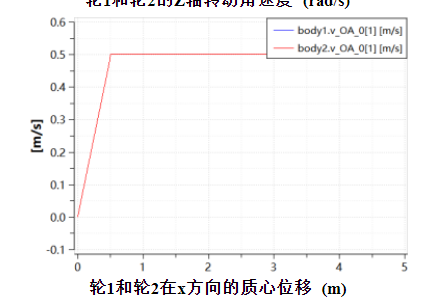

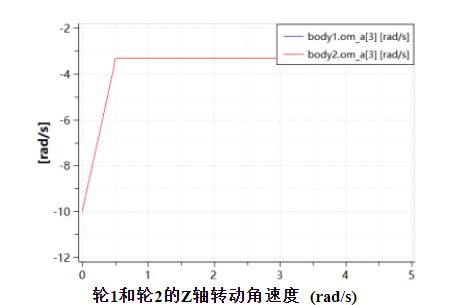

想搭建一个车轮模型 tycontact里的rational wheel车辆滚动模型里的力和速度是什么关系 给他一个初始角速度 为什么就刚开始摩擦力和力作用了几秒时间 后面就消失了 如果我想给他持续加一个力让它保持平衡 模仿车辆行驶的过程 请问怎么添加呢 或者有无替代方案可以完成车轮从加速到匀速再到减速的滚动效果
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
