如何使用modelica语言封装一个model
一般问题
发布于 2025-04-26 15:10:47
查看 17过去428天

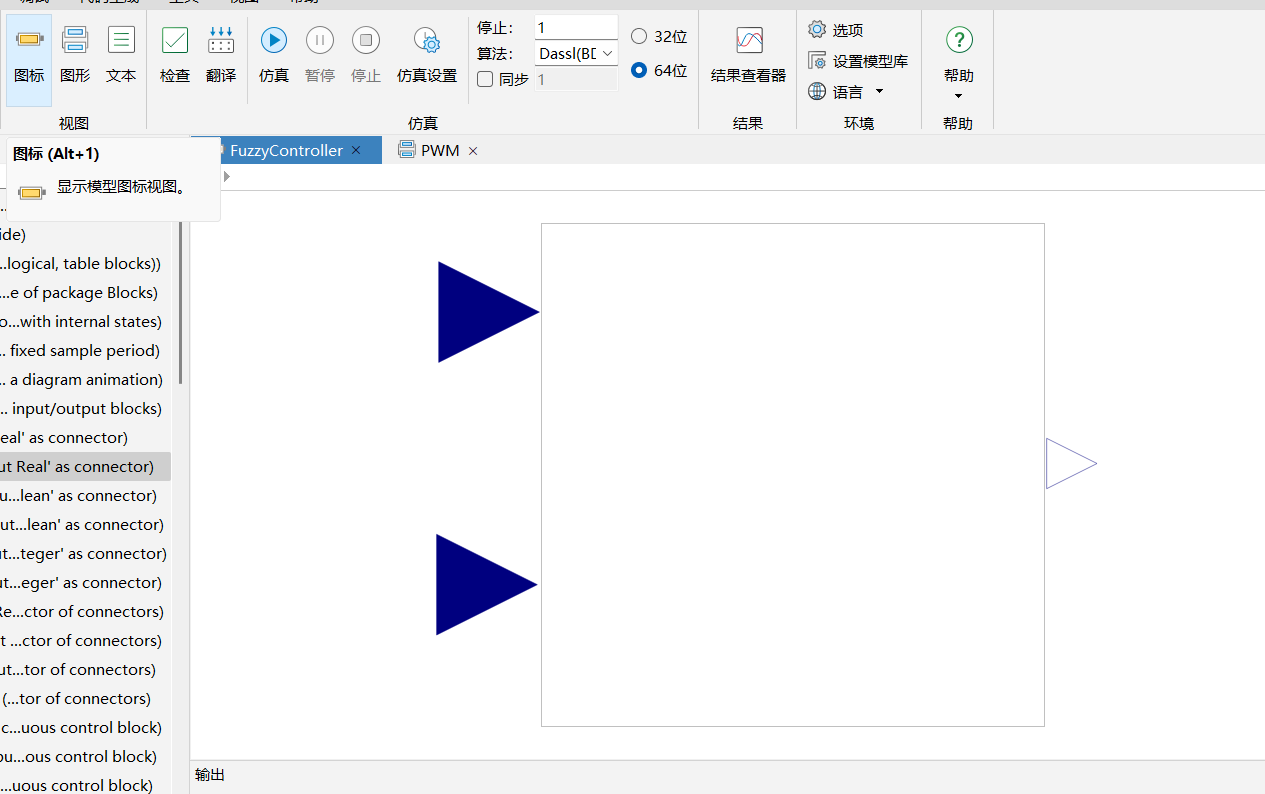

想请教一下如何通过文本或图形，欲封装好这个model。

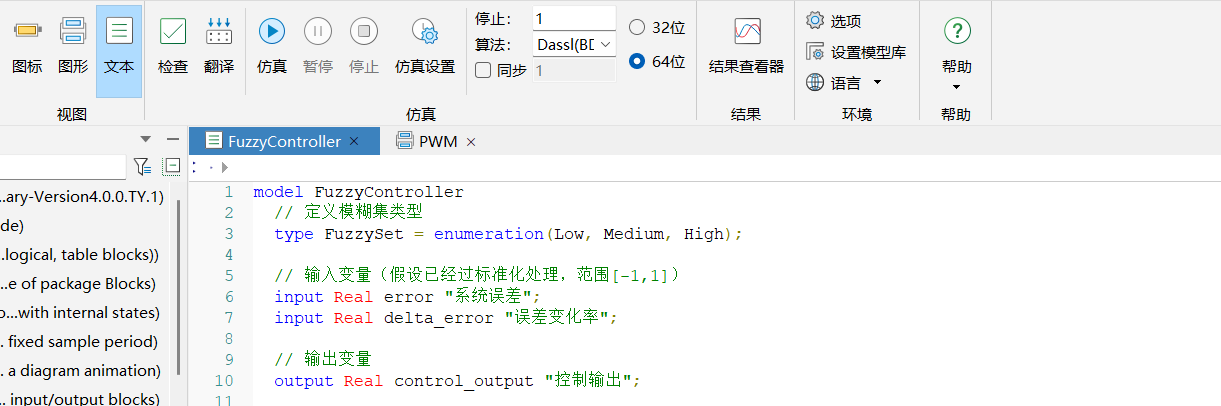

这个u和y管脚是编写什么文本呢？这正如我文本中的input Real error ，input Real delta_error ，如何成为u和y管脚
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 2
发布于 2025-04-27 09:03:32
您好，将相关连接器拖拽至模型中之后，将其视为变量进行代码编写即可，可以查看相关视频MWORKS 2025a培训——解锁Sysplorer系统建模仿真进阶技能！。
发布于 2025-04-28 10:17:51
你可以让deepseek给写一个模块，看看他的语法和结构，很快就知道了，我之前就是看教程看不明白，看一个实例就明白了
