更新之后fromworkspace报错了
一般问题
发布于 2025-05-19 17:13:34
查看 9过去405天

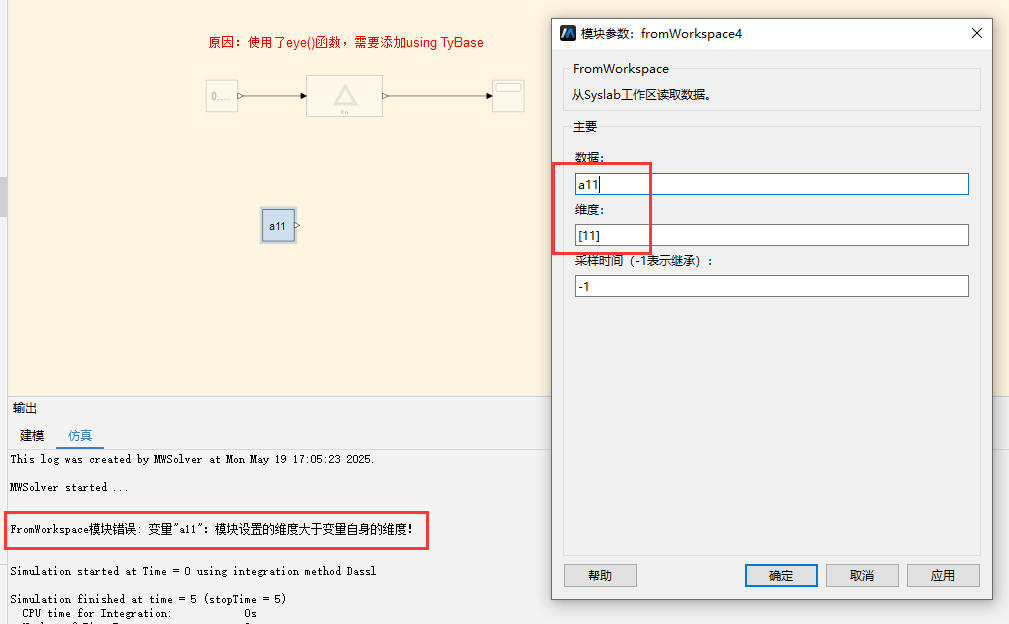

更新了SP2之后出现的问题，之前没有
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
更新了SP2之后出现的问题，之前没有

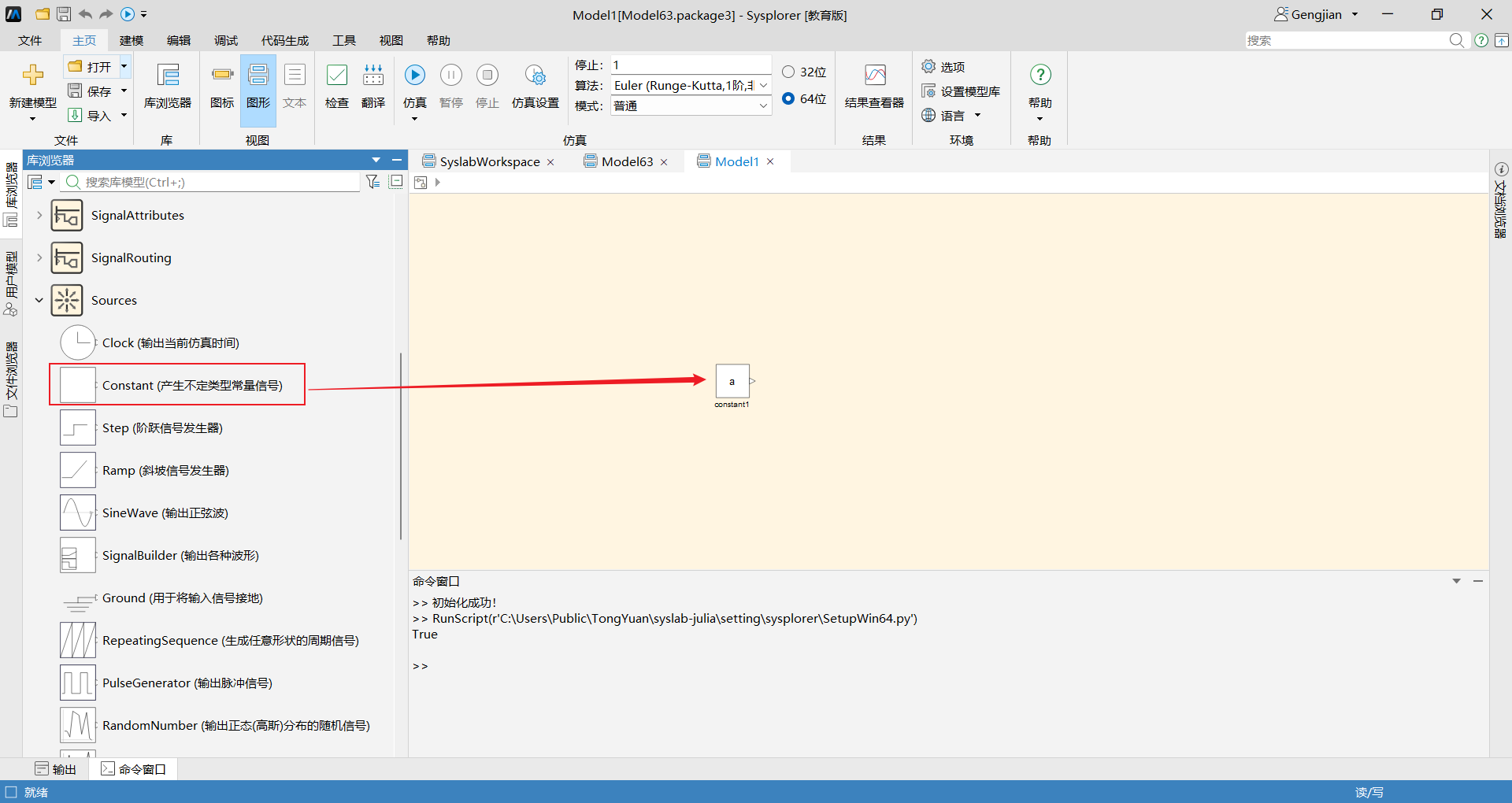

您好，fromworkspace用于读取矩阵数据，并且会把第一列数据作为时间列，您可以使用constant组件，设置参数时直接设置为syslab工作区变量即可。

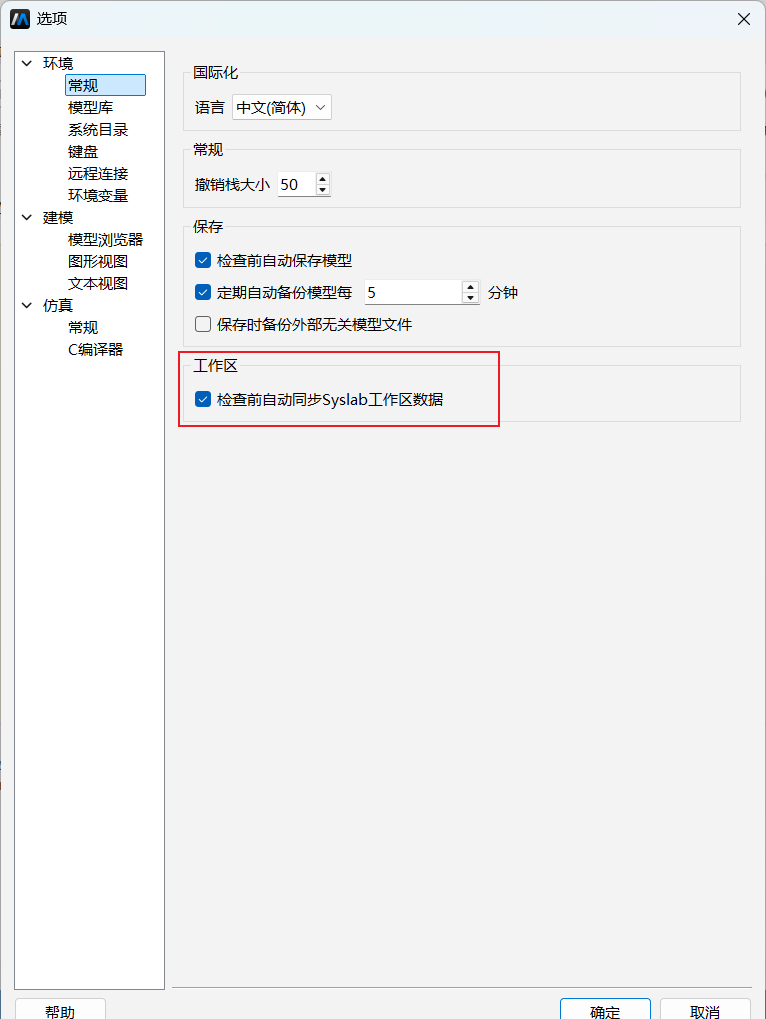

注：需要在设置中勾选“检查前自动同步Syslab工作区数据”，否则无法实时更新Syslab工作区的值
