布尔元件
一般问题
发布于 2025-05-19 21:22:23
查看 7过去405天
布尔元件输出可以和IGBT连接，怎么和mosfet连接，具体参数见relational operator里面的文件
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(7kb) 布尔元件输出可以和IGBT连接，怎么和mosfet连接，具体参数见relational operator里面的文件

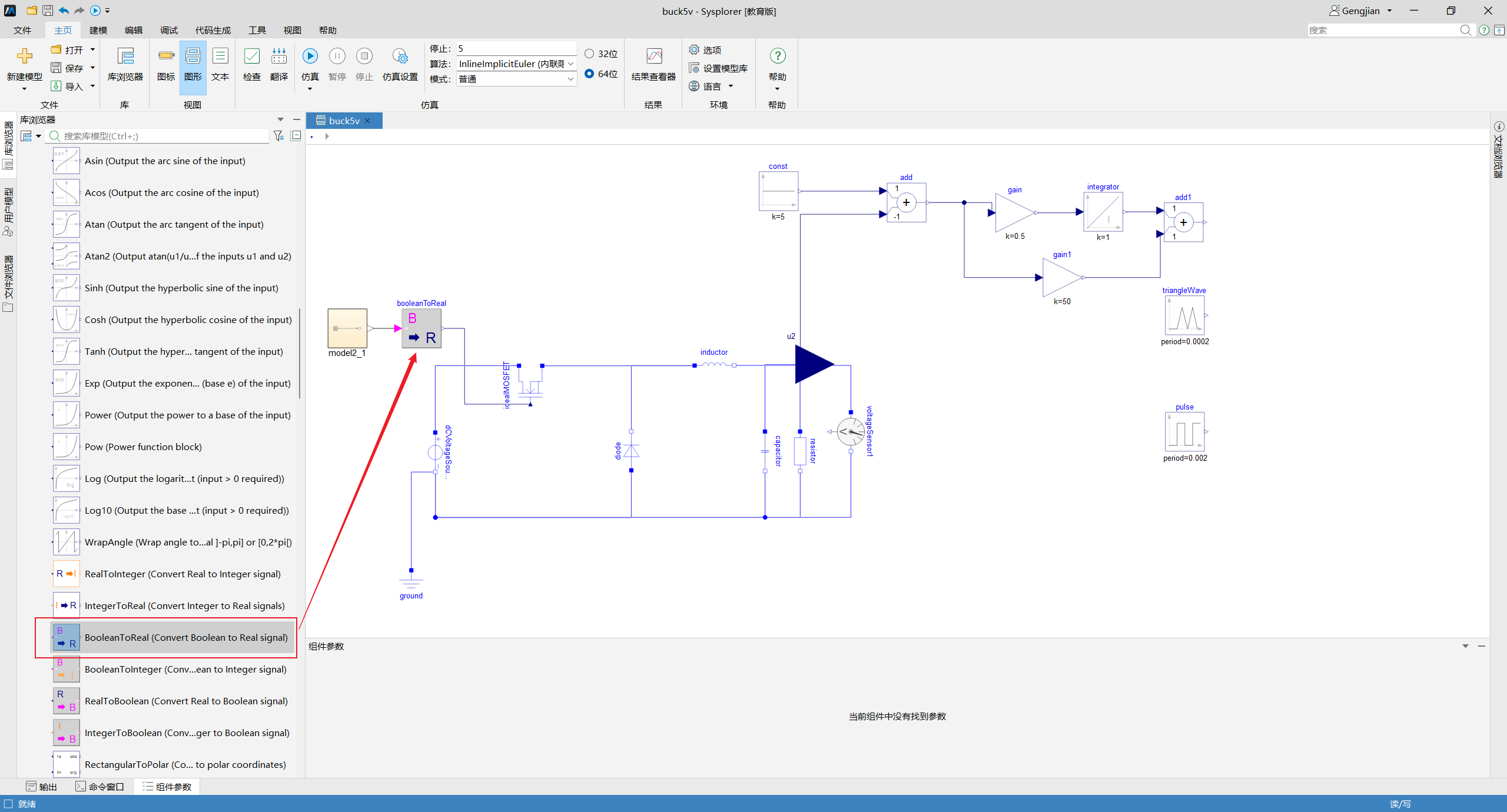

1 个附件(7kb) 您好，可以使用 Modelica.Blocks.Math.BooleanToReal 将布尔信号转换为 Real 信号后与 idealMOSFET 组件连接，组件如下图所示。
