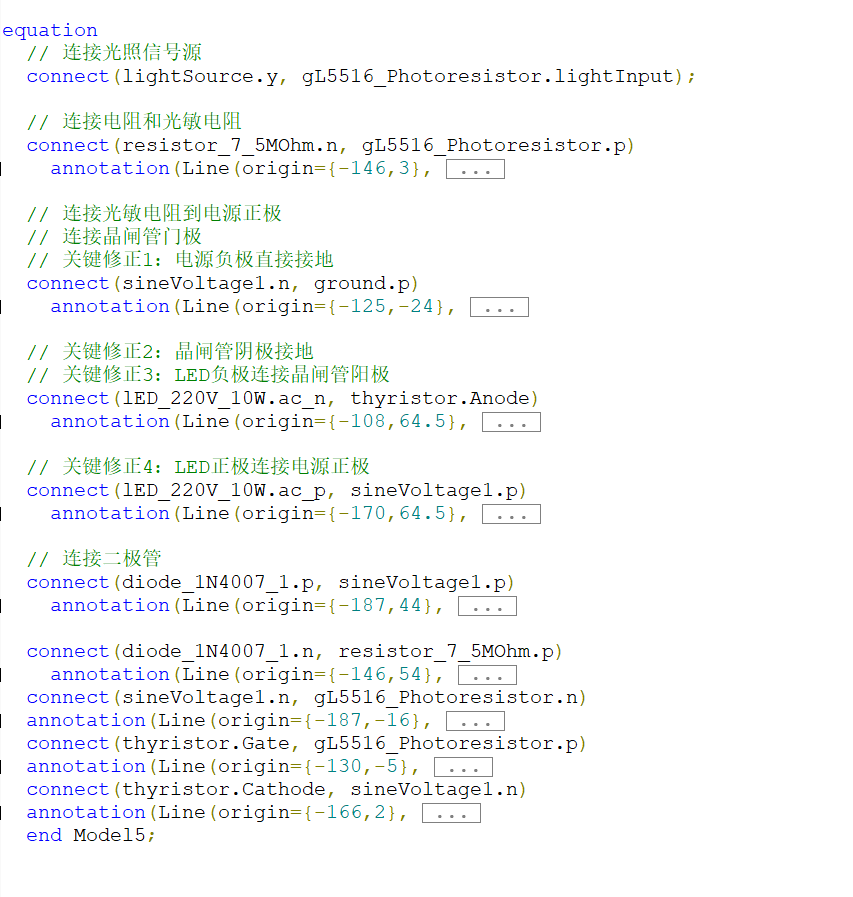

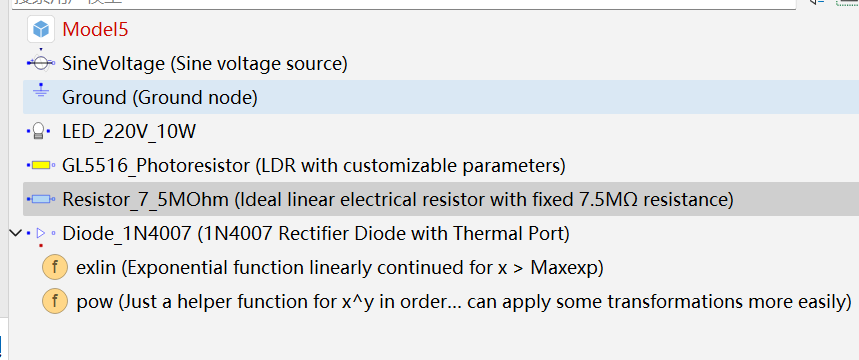

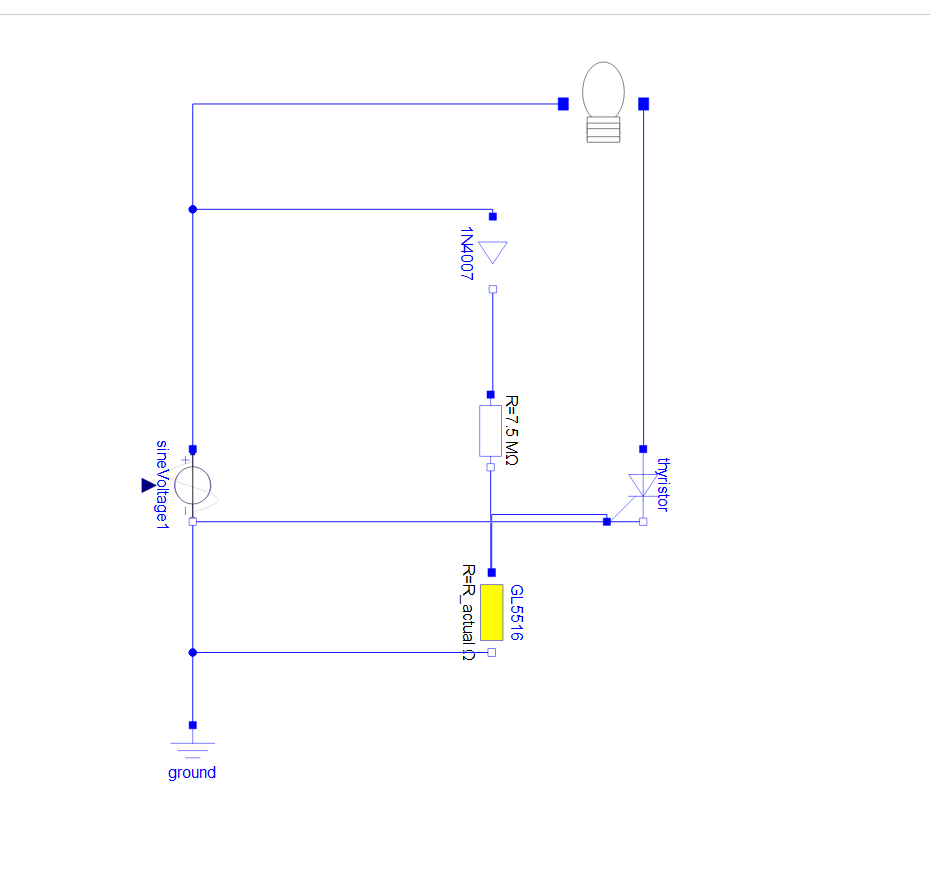

这个到底要怎么组合啊喂一般问题seven0916发布于 2025-06-11 17:45:36查看 13过去382天 一直报错说少了一个方程，求救啊，到底要怎样才行啊喂 所属专栏：Modelica语言产品信息：科学计算与系统建模仿真平台MWORKSMWORKS体验官 写回答 关注问题 点赞 0 踩 0 收藏 0

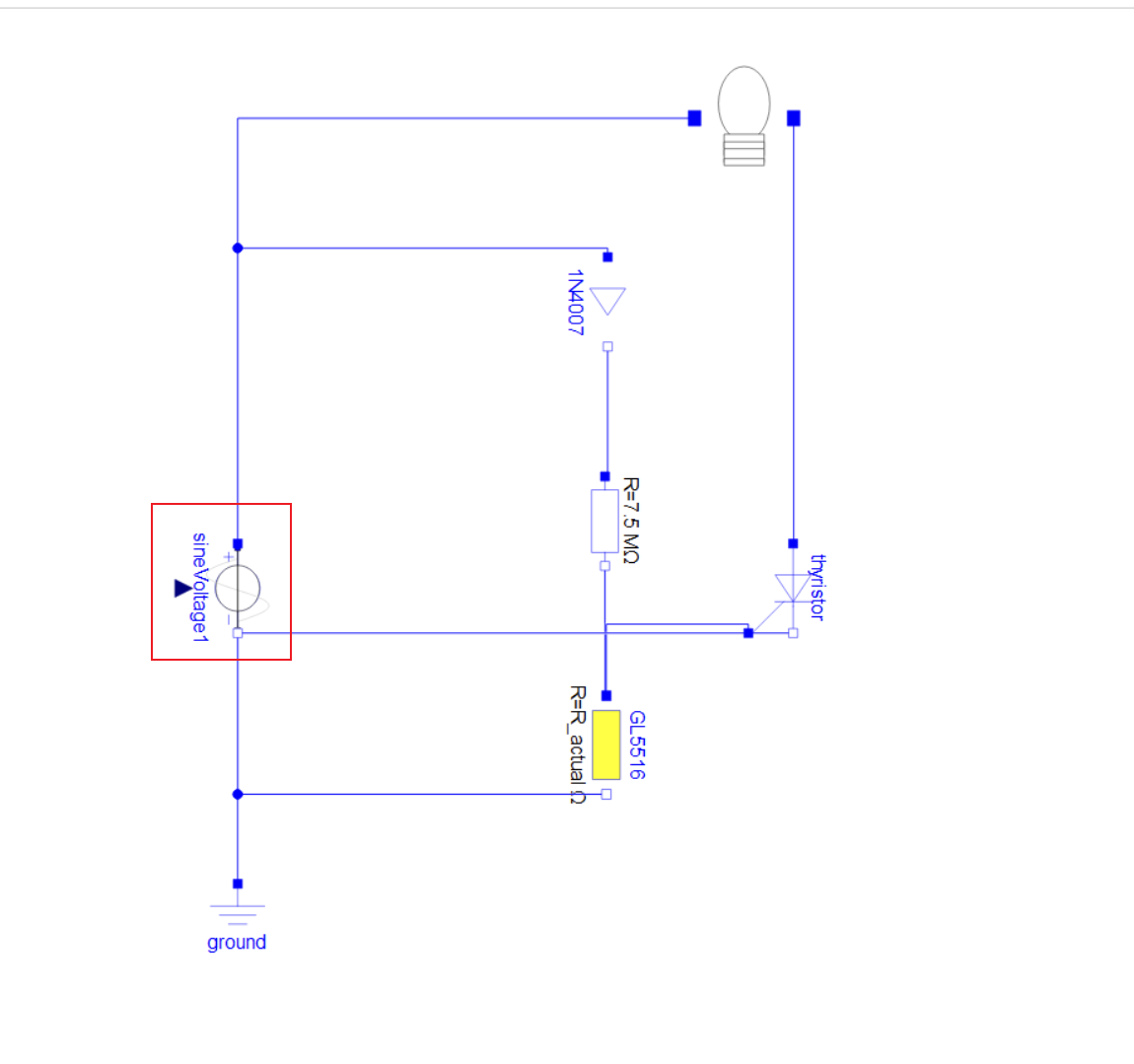

MoHub发布于 2025-06-11 17:58:24您好，根据图片显示，电源缺少信号输入，导致仿真报错缺少方程，可以使用Modelica.Blocks.Sources库下面的组件连接到电源接口。 0 0回复 查看更多
