光控电路添加光源信号后光敏电阻的数据不变化一般问题
发布于 2025-06-12 12:55:39
查看 13过去517天
预期是通过光源的变化，得出LED的开关由光强控制
（我也不知道哪些有用就都放上来了
所属专栏：Modelica语言
产品信息：科学计算与系统建模仿真平台MWORKS
7 个附件(16kb) 预期是通过光源的变化，得出LED的开关由光强控制
（我也不知道哪些有用就都放上来了

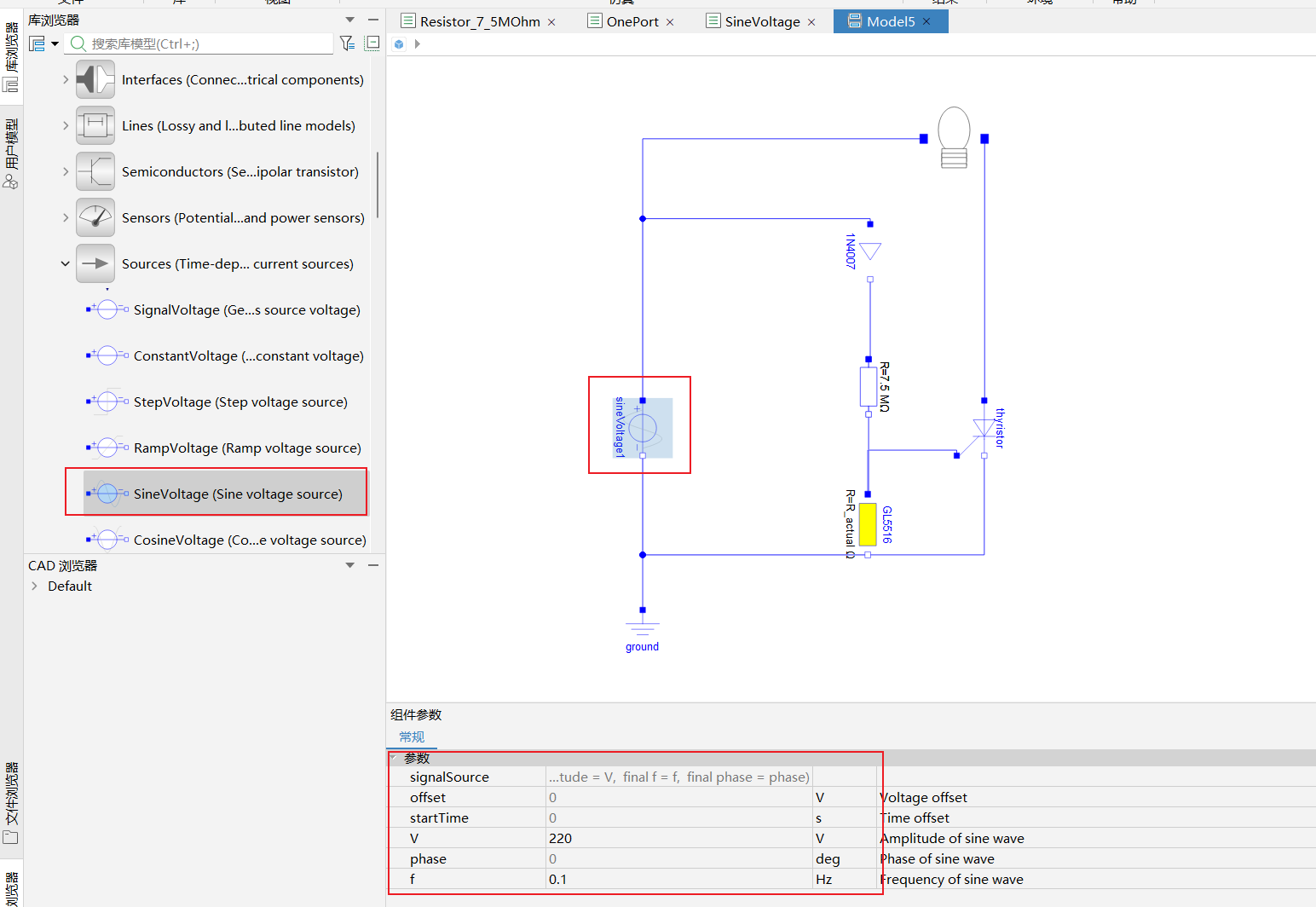

7 个附件(16kb) 您好，修改原模型，将您的电源组件替换为标准库中的电源组件，如下图

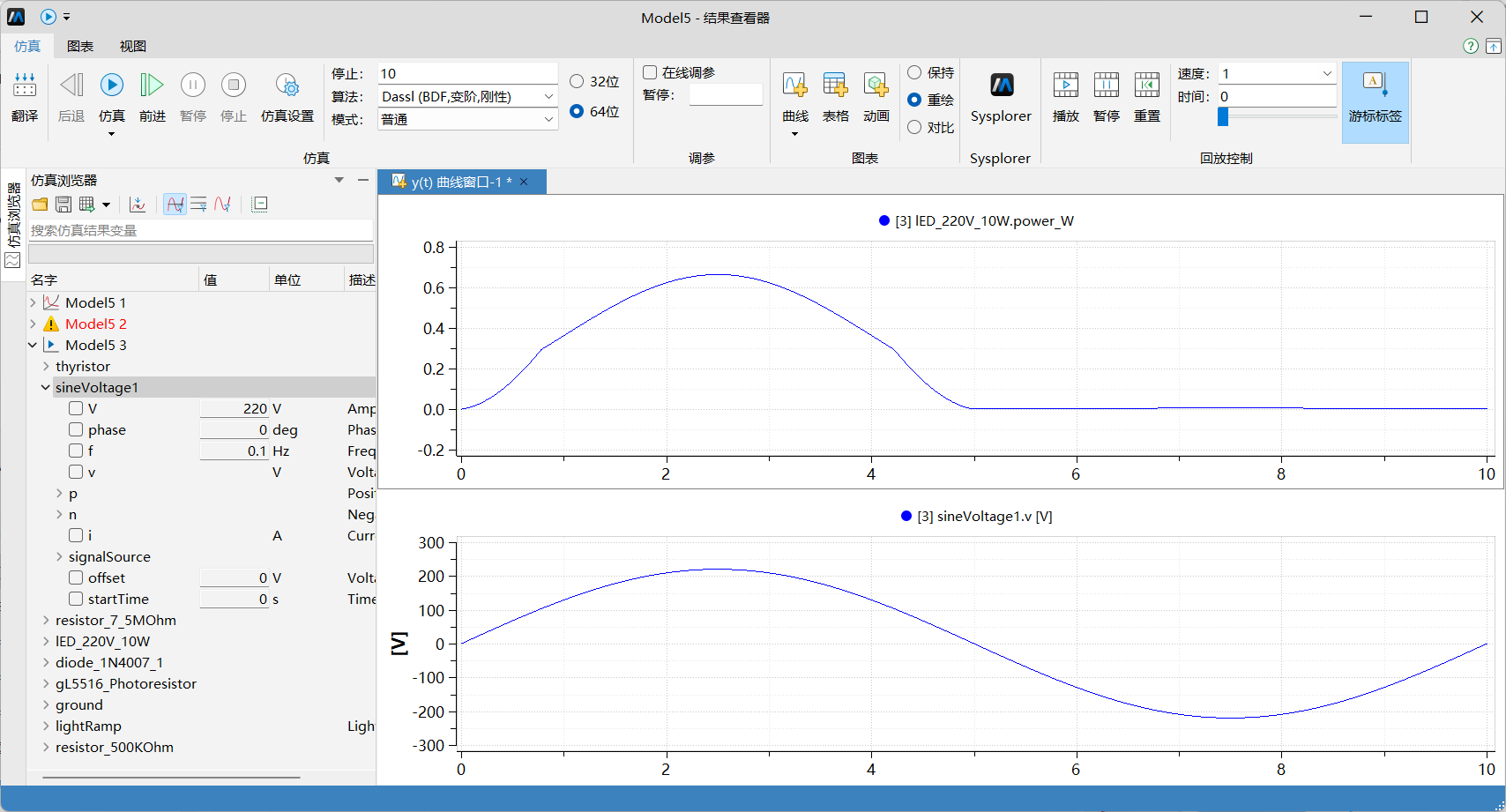

仿真结果如下，不知是否满足您的需求？
