怎样才能固定3号转动副，求帮助谢谢。
一般问题
发布于 2025-06-17 15:56:36
查看 5过去376天

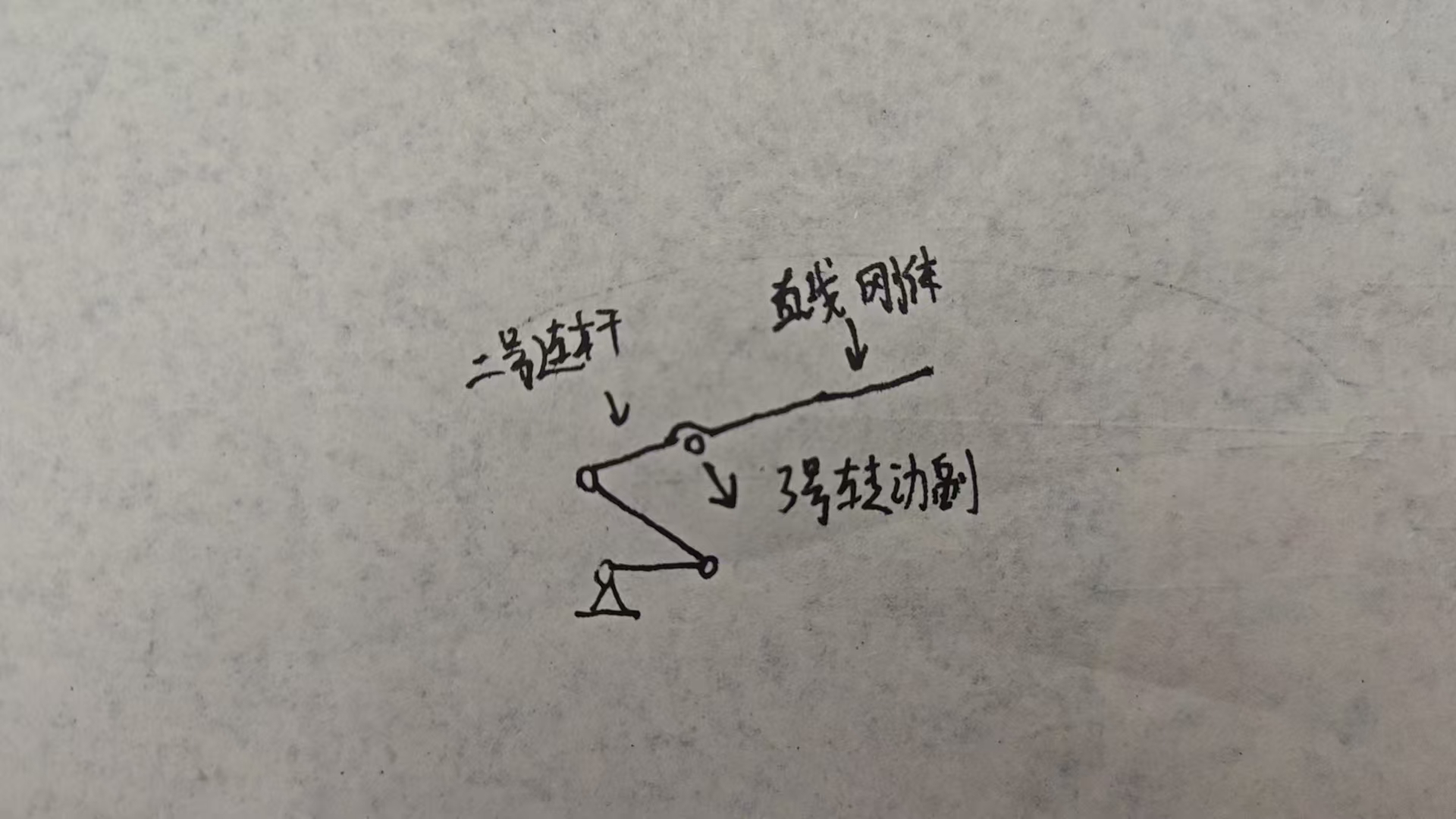

预期效果 二号连杆与刚体成一条直线绕3号转动副旋转
所属专栏：Modelica语言
产品信息：科学计算与系统建模仿真平台MWORKS
1 个附件(8kb) 专栏
标签
高校专区
1 个附件(8kb) 全部回答 1
发布于 2025-06-17 17:29:38
您好，建议您在CAD软件中构建好相应模型，将其保存为step文件，然后使用CAD工具箱将模型转化为Modelica模型，相关课程可以参考Syslorer机械多体系统建模-齿轮系。
