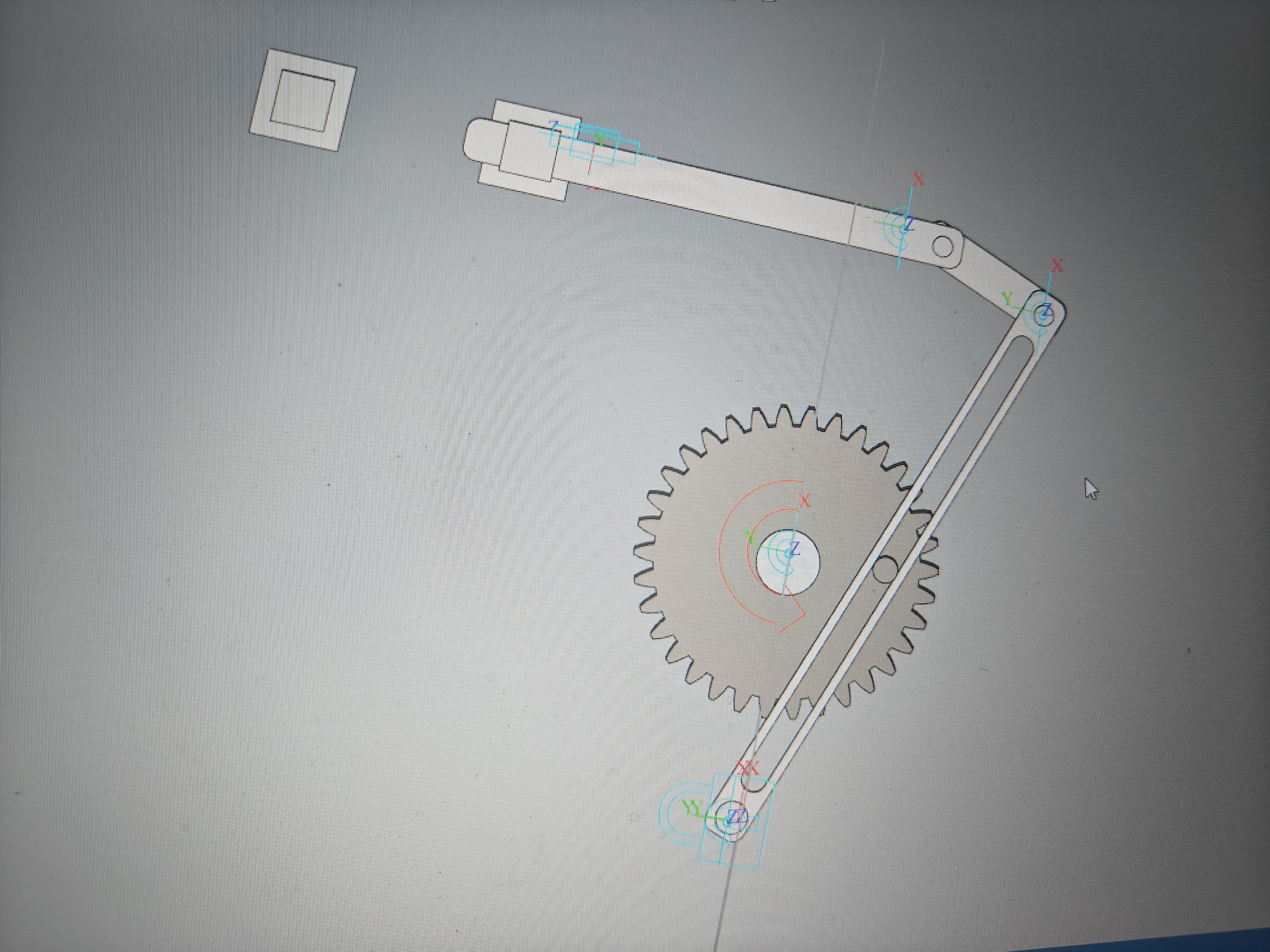

有没有人能教教我，怎么给这个机构添加运动副，求求大家了
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
10 个附件(6686kb) 有没有人能教教我，怎么给这个机构添加运动副，求求大家了
10 个附件(6686kb) 您好，烦请您上传相关模型文件，包括三维模型，我们结合模型尝试一下。
您好，可以直接在CAD工具箱中添加转动副移动副等运动副，但是齿轮上的圆柱与导轨的接触暂时无法实现。
