施加一个力
一般问题
发布于 2025-06-18 11:54:16
查看 14过去375天
可以帮我看一下吗，添加完标架和外力有个问题，加不加力对于仿真曲线没有影响
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(106kb) 可以帮我看一下吗，添加完标架和外力有个问题，加不加力对于仿真曲线没有影响

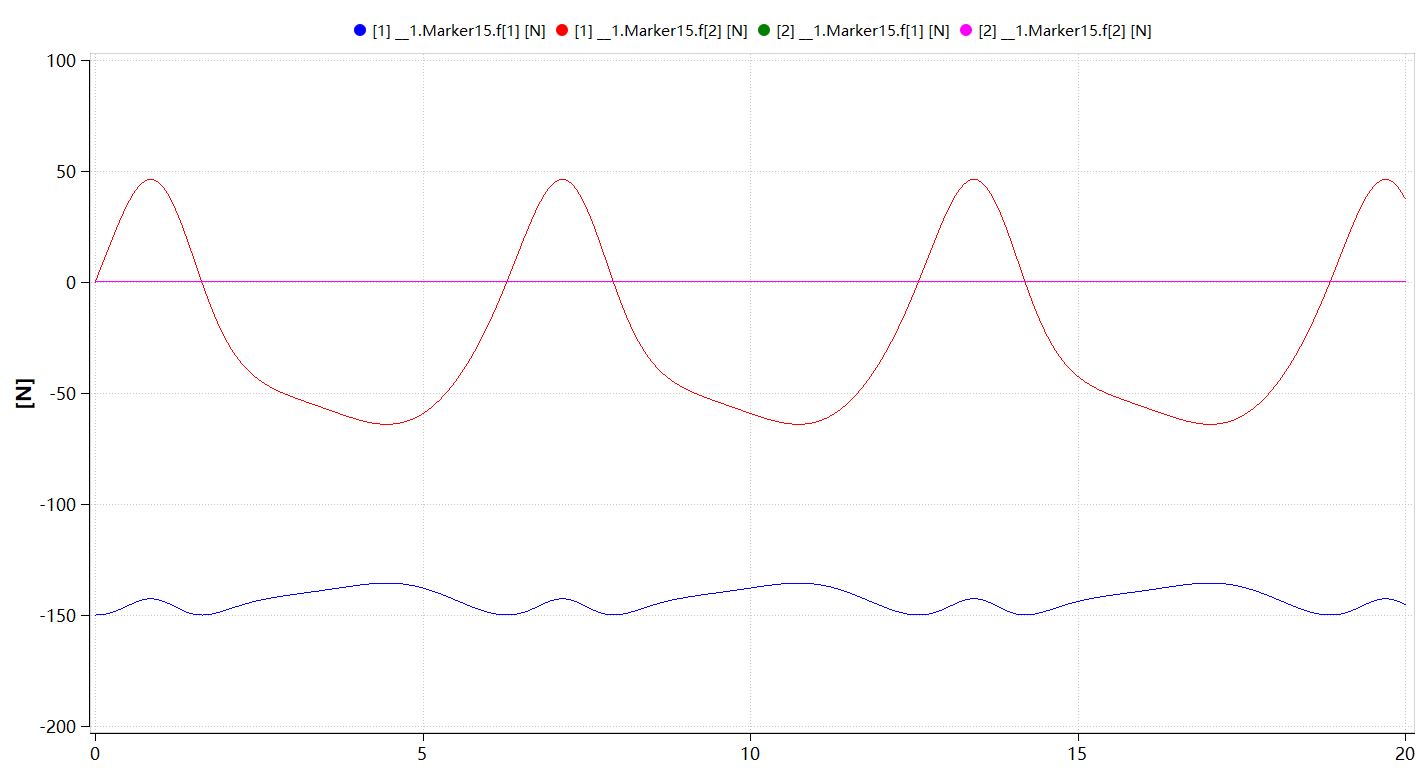

1 个附件(106kb) 您好，因为您的模型是施加的角速度信号，您在杆件添加外力对于运动状态是不会有影响的，但是查看杆件的受力曲线的话是有区别的，如下图所示，不施加外力时，杆件受力为0，施加时则不为0.
