正弦信号源驱动的速度如何确定
一般问题
发布于 2025-06-18 11:56:02
查看 21过去375天
想要让驱动为0.5m/s的往复匀速直线运动如何实现，这个正弦信号只能调整它的振幅，那可以让他是匀速上下运动吗，驱动的其他参数在哪里设置
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
3 个附件(55kb) 想要让驱动为0.5m/s的往复匀速直线运动如何实现，这个正弦信号只能调整它的振幅，那可以让他是匀速上下运动吗，驱动的其他参数在哪里设置

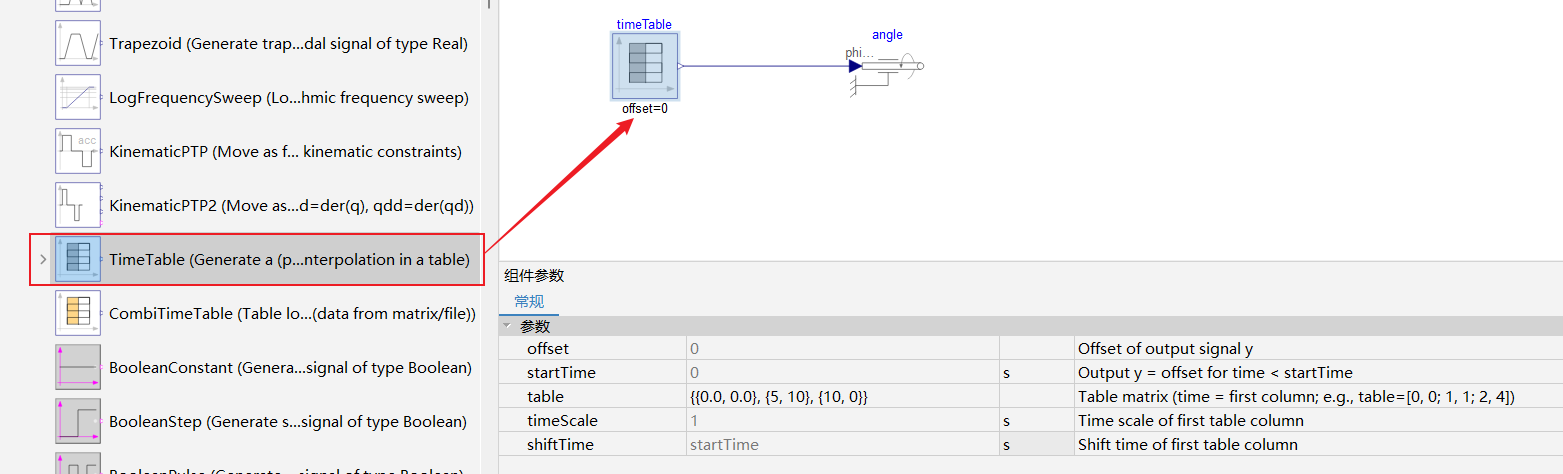

3 个附件(55kb) 您好，匀速往复运动的话可以使用timetable组件和角度源组件驱动，如下图，所设置的参数表示0-5s内旋转10rad，5-10反向旋转10rad。
