PLL锁相环
一般问题
发布于 2025-06-18 21:36:38
查看 12过去375天
我需要模型库里所有PLL锁相环的模块？为什么和simulink里的PLL所想环输入输出不同？我应该做怎样的修改和私募林肯模块同步？？？？？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(138kb) 我需要模型库里所有PLL锁相环的模块？为什么和simulink里的PLL所想环输入输出不同？我应该做怎样的修改和私募林肯模块同步？？？？？

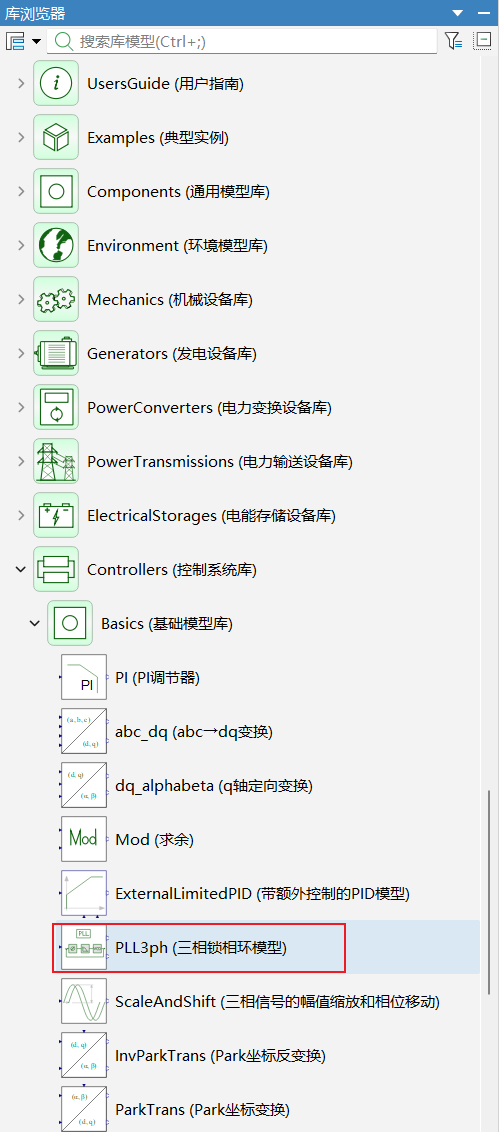

2 个附件(138kb) 您好，可以使用该组件：TYWindPower.Controllers.Basics.PLL3ph，三相锁相环是与simulink对标的。
