coolprop物性库关于setState_hsX函数如何使用
一般问题
发布于 2025-06-19 16:26:52
查看 5过去374天

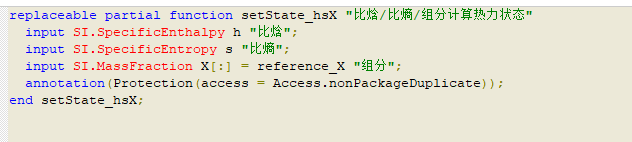

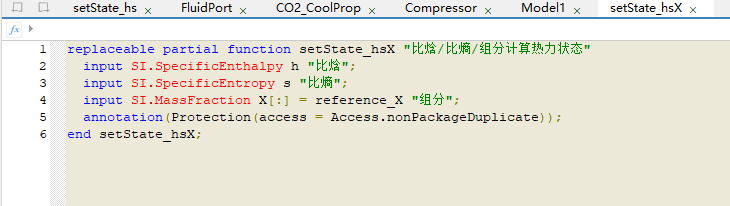

我查看文本文档中是Helmholtz.CO2的setState_hsX函数没有输出的，但在coolprop中是有输出的，但是使用的时候总是显示生成日志，没有仿真结果
所属专栏：模型库
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 1
发布于 2025-06-20 16:45:54
您好，可以参考一下解决方法

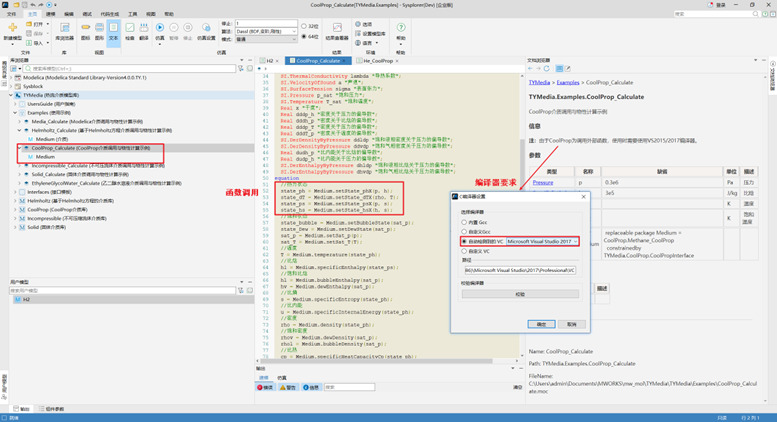

1、生成日志的原因及函数调用
1） TYMedia.CoolProp介质需使用VS2010/2017的编译器，用内置GCC会输出日志
2） 函数调用可查看TYMedia.Examples.CoolProp_Calculate物性计算示例

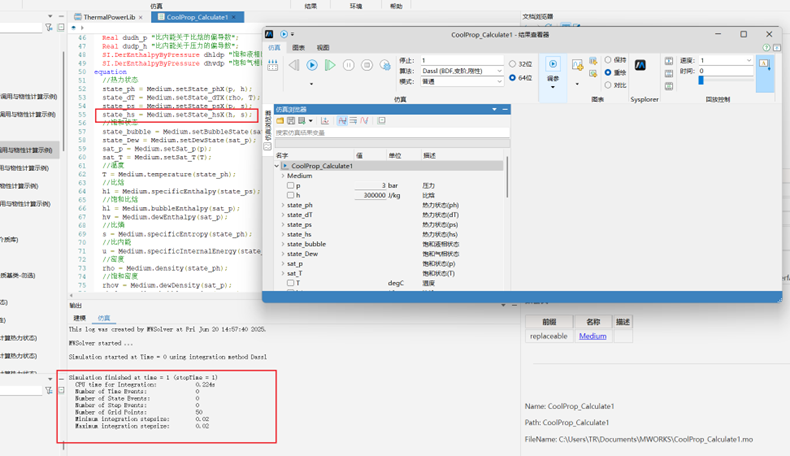

使用正确的编译器可正常仿真
2、Helmholtz方程介质中未考虑setState_hsX函数
