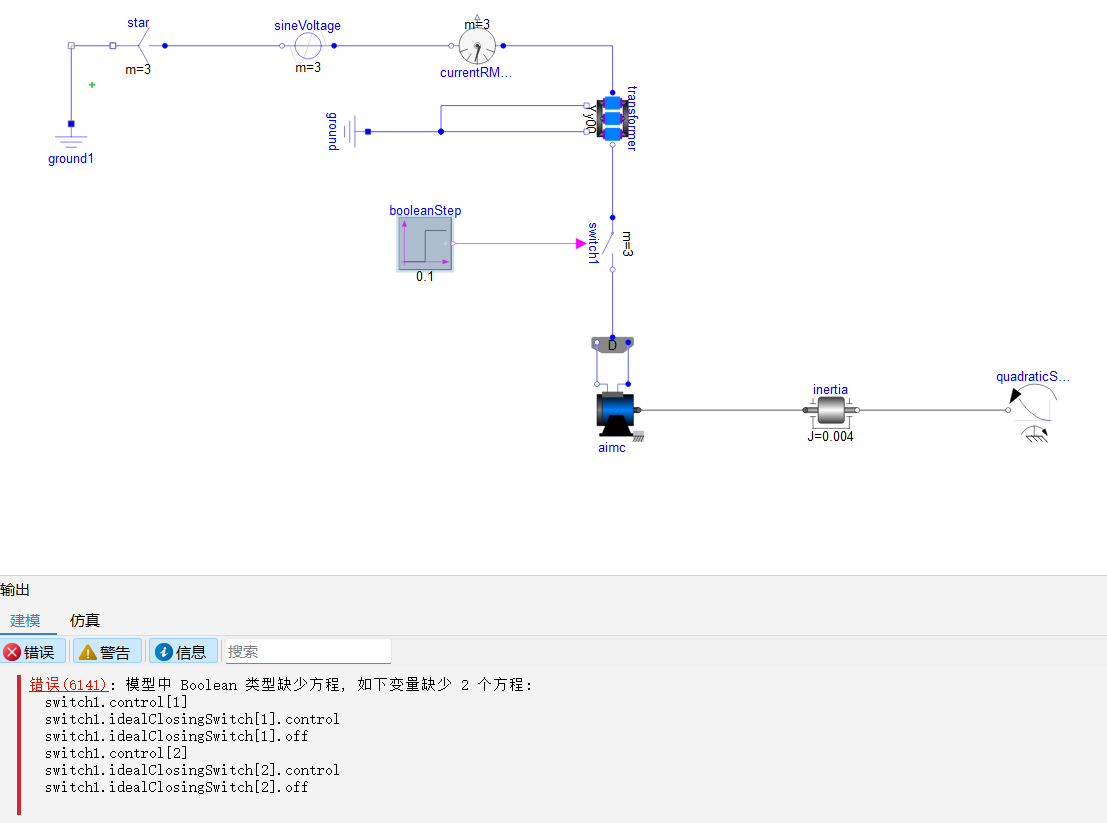

MWORKS仿真问题一般问题ARSENALandSWEDEN发布于 2025-06-19 20:12:12查看 5过去374天 如何解决这一问题 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境MWORKS体验官 1 个附件(42kb) 4D3AB137096D735F374C0B6655C9A190.png41.56 KB 写回答 关注问题 点赞 0 踩 0 收藏 0

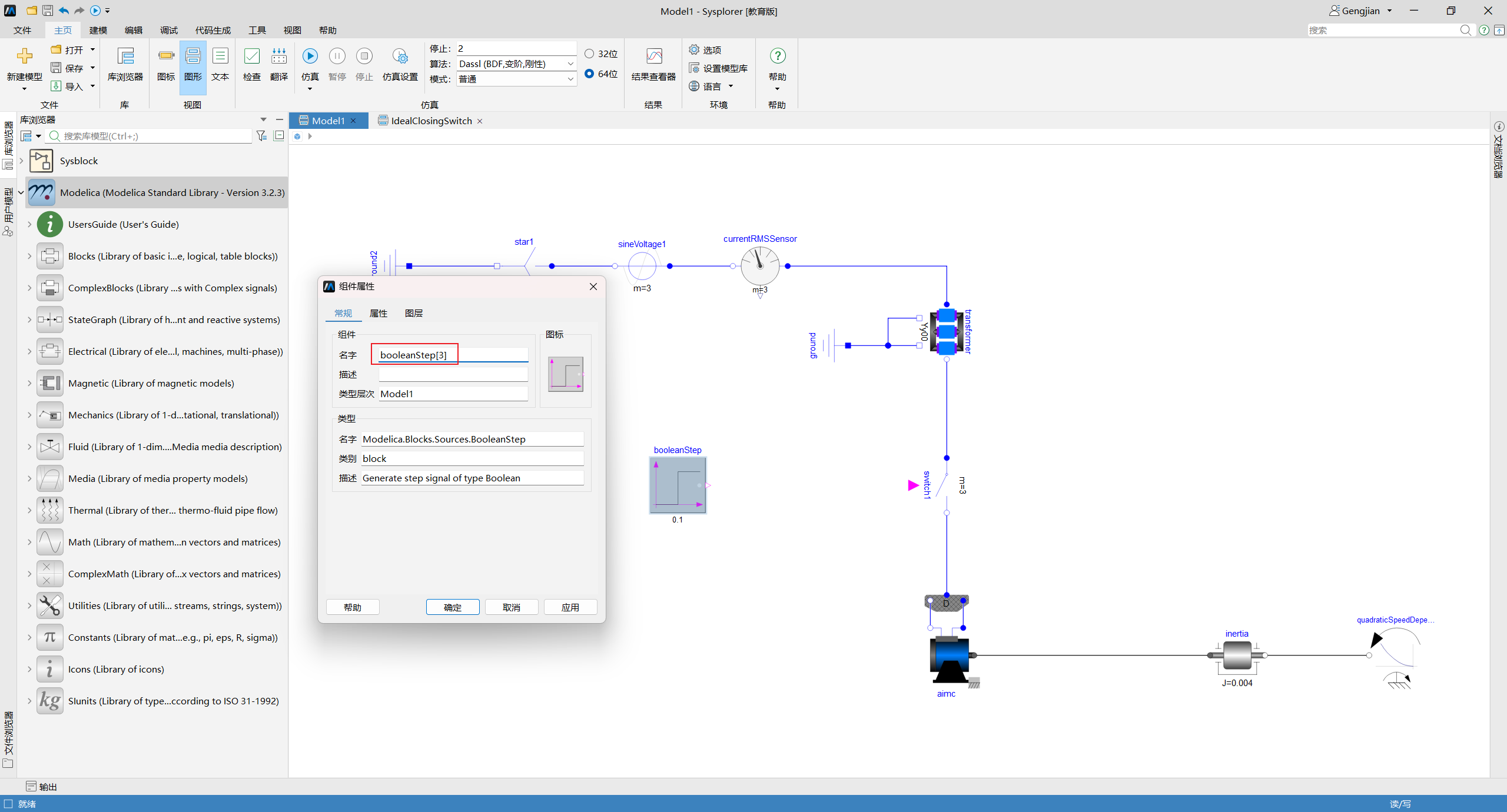

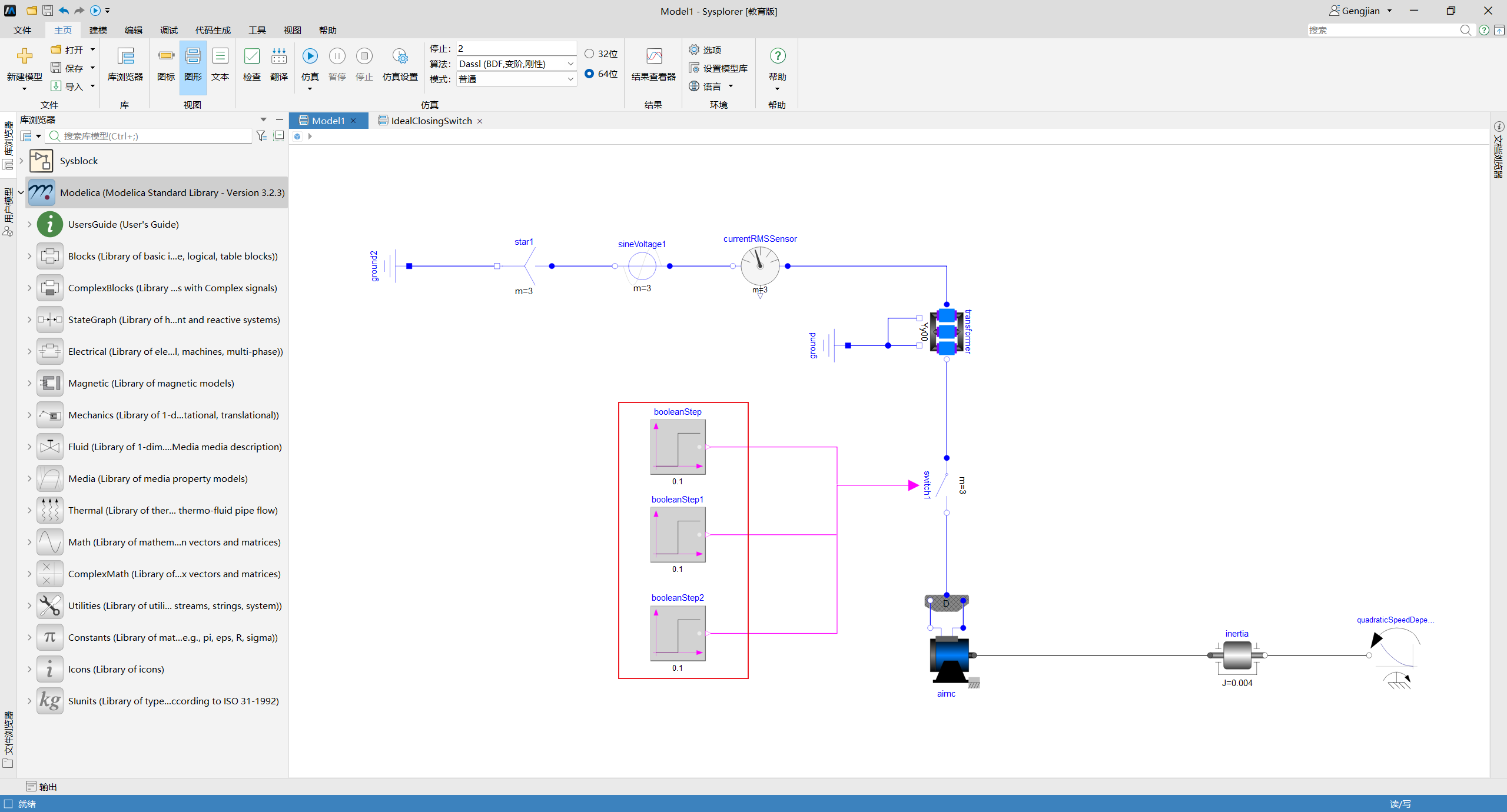

MoHub发布于 2025-06-20 14:55:23您好，可以复制三个stepboolean然后分别接入。 也可以右键选择属性，修改模型名字为booleanStep[3]，然后在弹窗中保持默认。 1 0回复 查看更多
