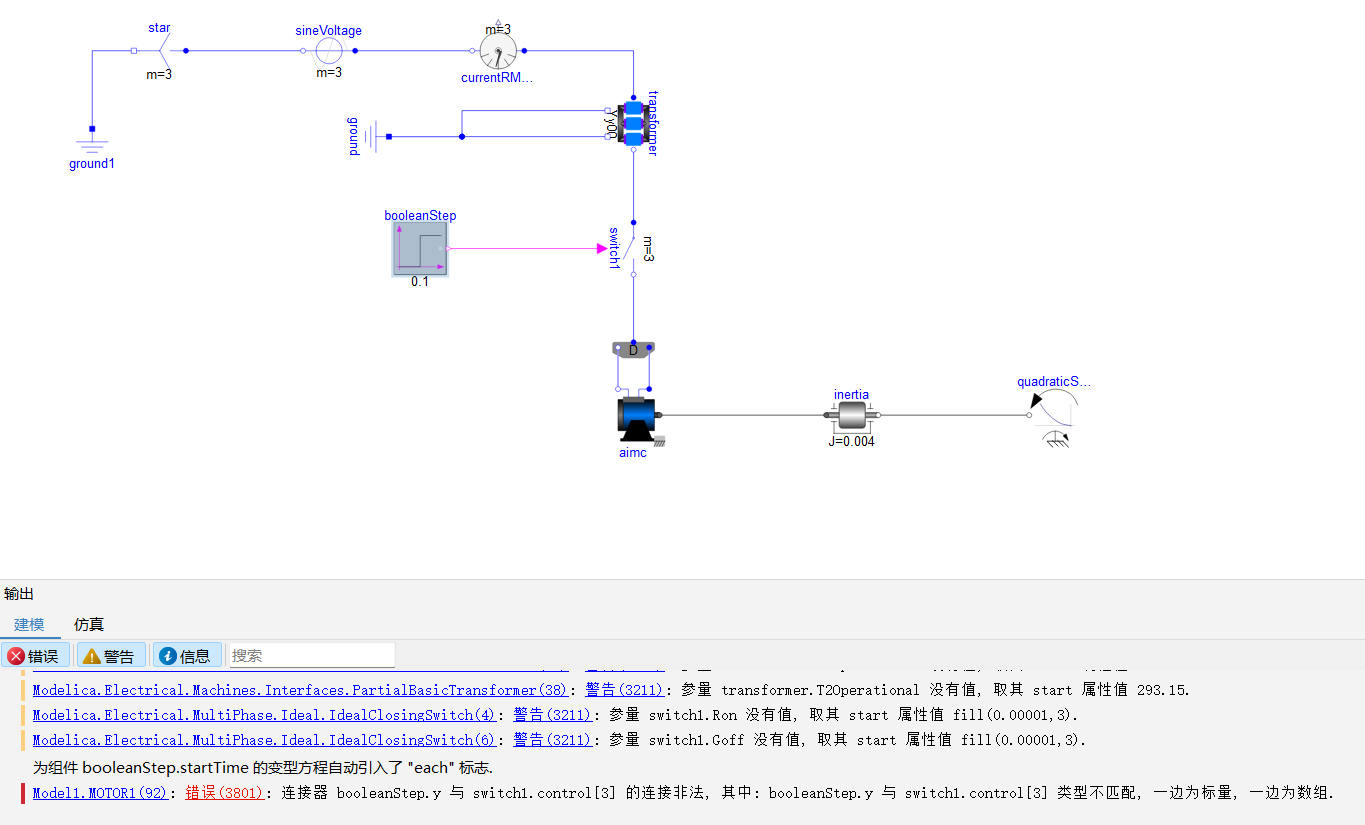

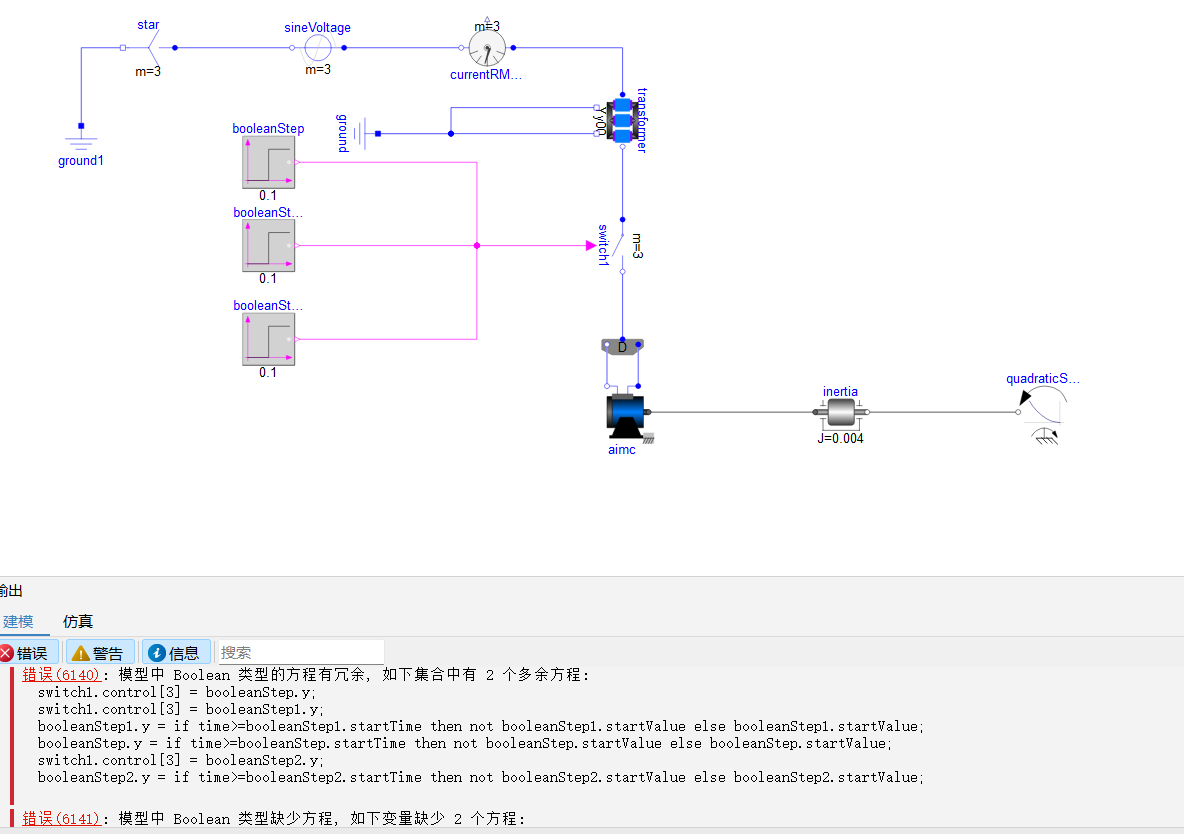

设置三个booleanStep和命名添加[3]的两种方式都行不通，该如何处理
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(104kb)
设置三个booleanStep和命名添加[3]的两种方式都行不通，该如何处理
2 个附件(104kb) 您好，按照第一种方式连线时，在弹出的窗口中需要依次输入1、2、3，如果采取第二种方式的话，在弹窗中不需要修改任何值，两个括号均保持[:]即可。
