模型库机构不能正常演示
产品缺陷
发布于 2025-06-24 23:46:24
查看 6过去369天

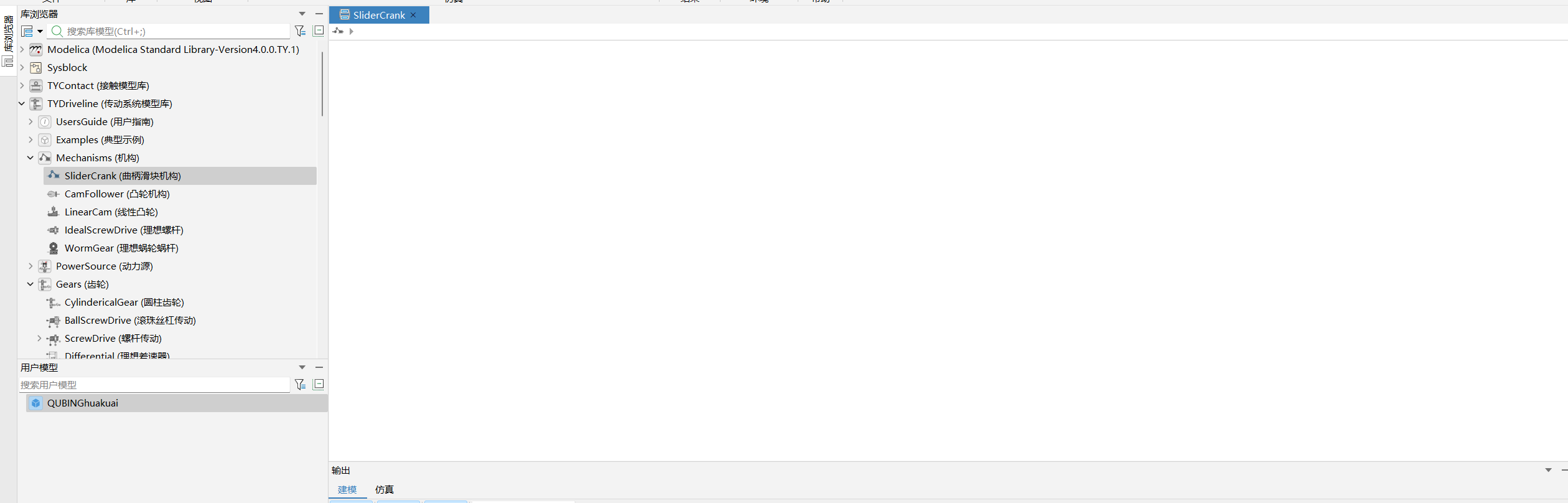

这个TYDriveline传动系统模型库中的所有Mechanicams机构不能正常显示，其余则可以正常显示屏幕截图 2025-06-24 234419.png
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
系统信息：Win10或11
这个TYDriveline传动系统模型库中的所有Mechanicams机构不能正常显示，其余则可以正常显示屏幕截图 2025-06-24 234419.png
您好，TYDriveline传动系统模型库中的组件并未开放源代码，并且在构建过程中没有采用可视化建模，因此您无法在模型视图中看到任何内容。
