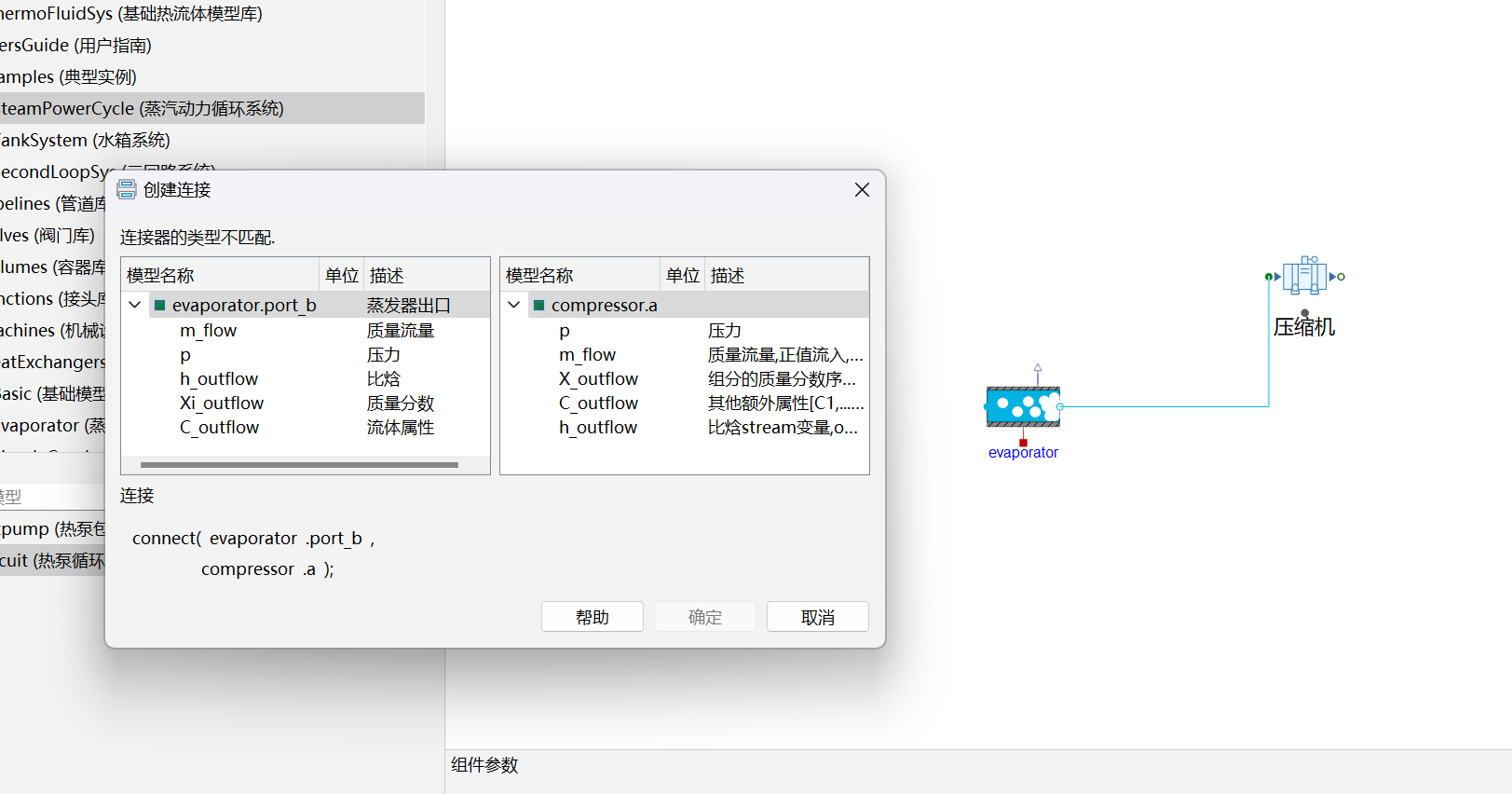

基础热流体模型库中的蒸发器与冷凝器如何跟车辆热管理模型库中的压缩机进行连接一般问题TakeIn发布于 2025-07-02 10:57:57查看 8过去362天想请教一下 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0

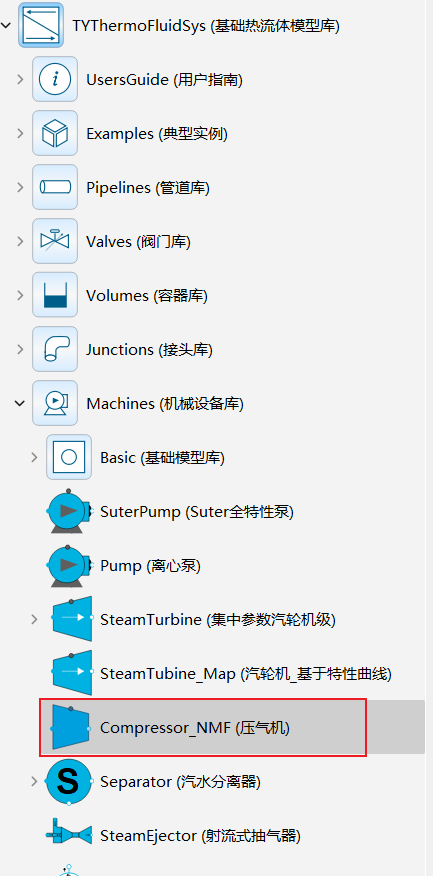

ty_MoHub发布于 2025-07-02 11:27:11您好，两个组件分属不同领域，无法直接连接，如要使用压缩机模型，可以尝试使用TYThermoFluidSys.Machines.Compressor_NMF压气机模型。 0 0回复
