如何使用坐标值来控制模型
一般问题
发布于 2025-07-07 08:12:16
查看 8过去357天
可以读取到服务端的运动坐标信号，我想通过坐标值来控制sysplorer建立的模型，在sysplorer中如何实现
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
可以读取到服务端的运动坐标信号，我想通过坐标值来控制sysplorer建立的模型，在sysplorer中如何实现

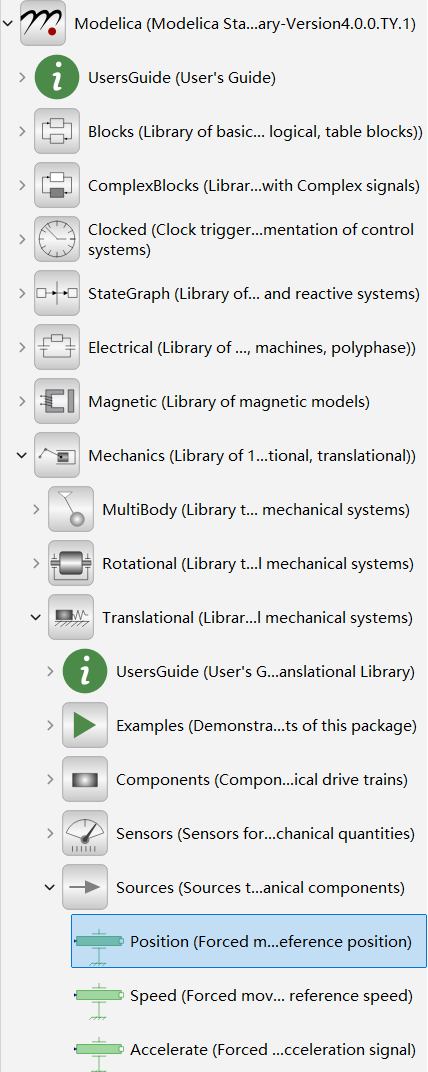

您好，请问您是希望模型按照所获得的位置坐标进行运动吗？是的话可以使用 Modelica.Mechanics.Translational.Sources.Position 组件，该组件可以将输入信号转换为位置信号，使得机械组件运动。如果不是，请详细描述您的需求。
