Sysplorer液压仿真数据转换问题
一般问题
发布于 2025-07-16 12:39:09
查看 3过去347天
请问Sysplorer中，有没有组件能够将液压缸的输出端口拆分为力、位移两个变量作为real_output类型输出？

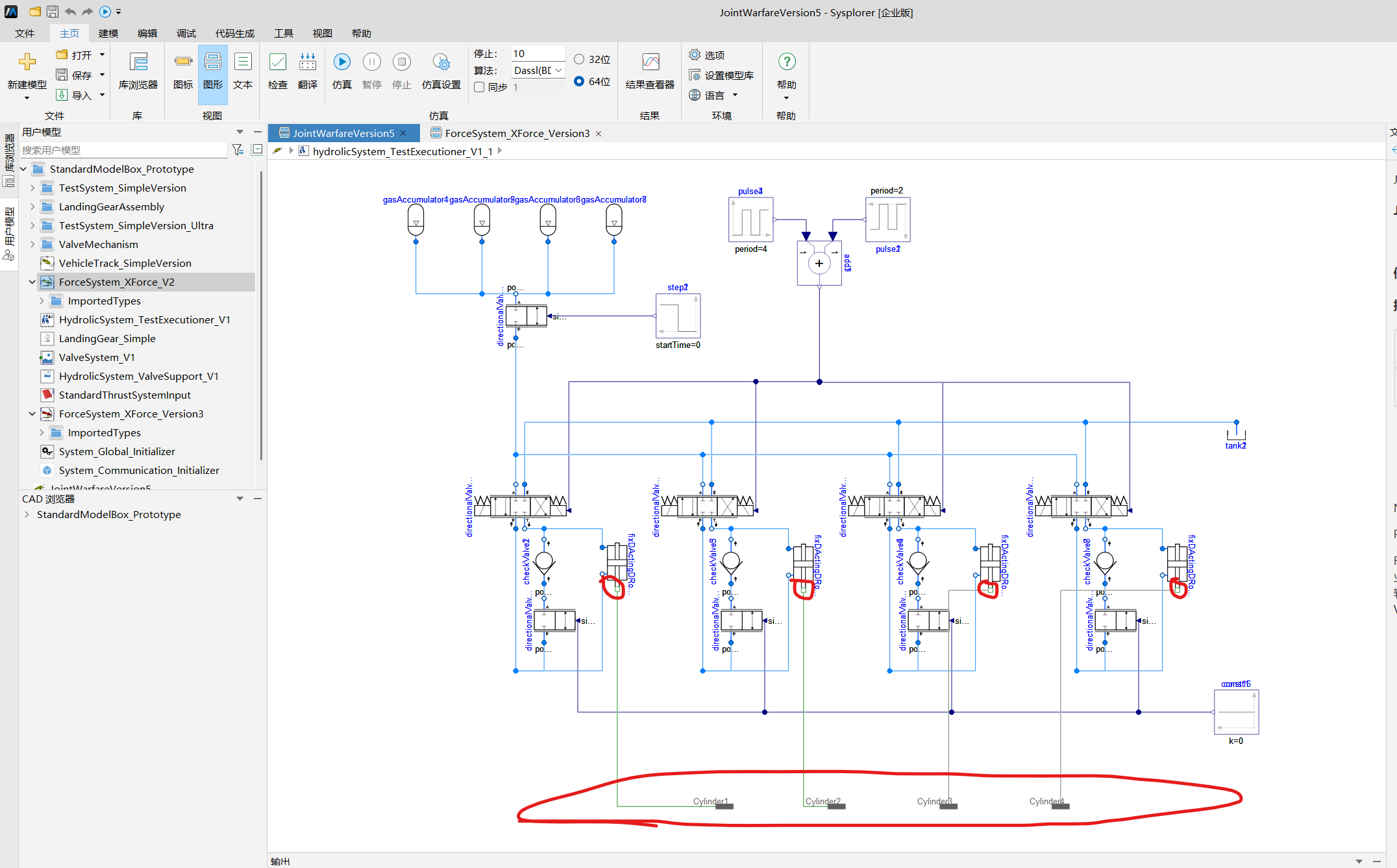

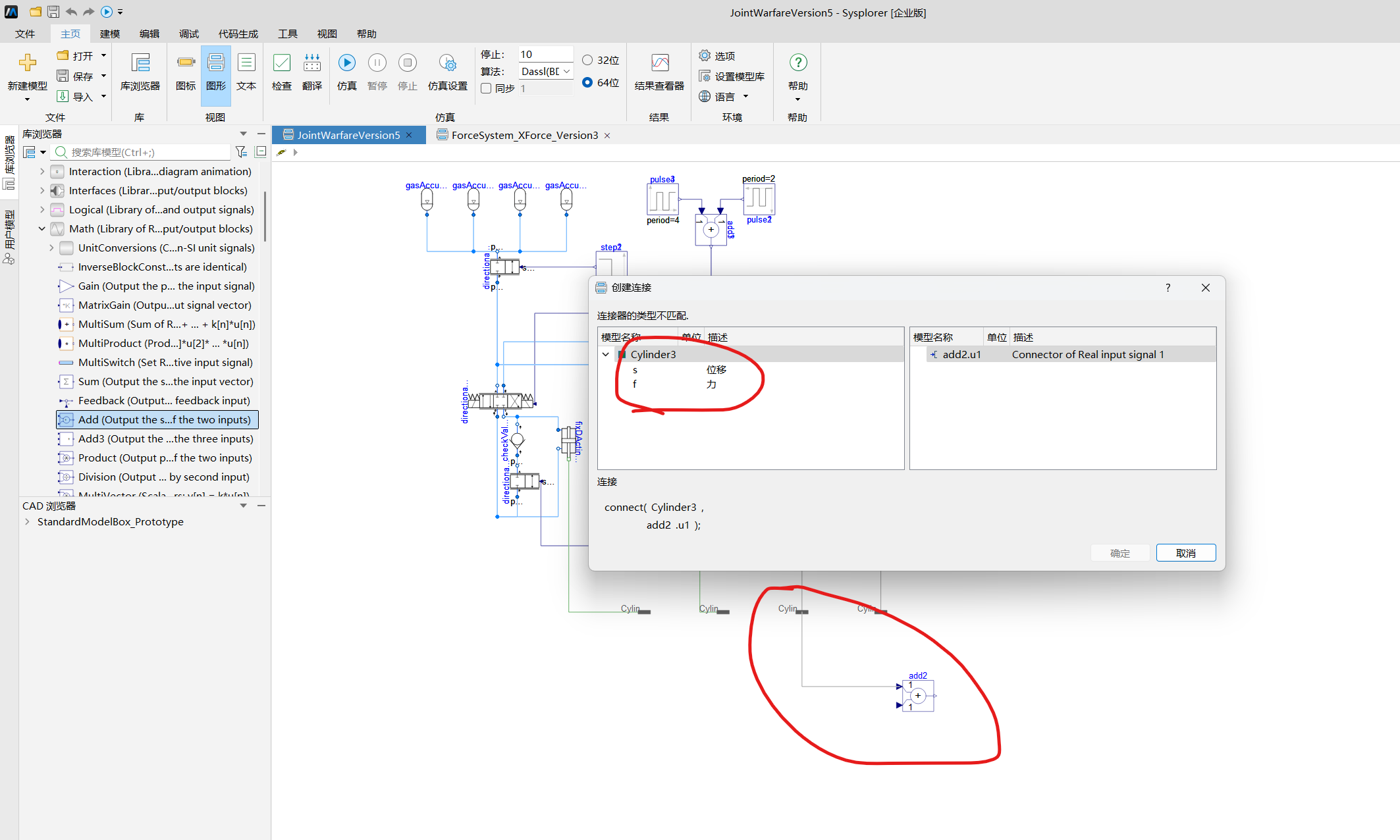

就是，比如图中的液压模型，液压缸的输出端口有没有办法能够提取力和位移的数值，使之能够连接到诸如基本的add组件进行计算？
所属专栏：Syslab基础平台
产品信息：Sysplorer系统建模仿真环境
请问Sysplorer中，有没有组件能够将液压缸的输出端口拆分为力、位移两个变量作为real_output类型输出？
就是，比如图中的液压模型，液压缸的输出端口有没有办法能够提取力和位移的数值，使之能够连接到诸如基本的add组件进行计算？

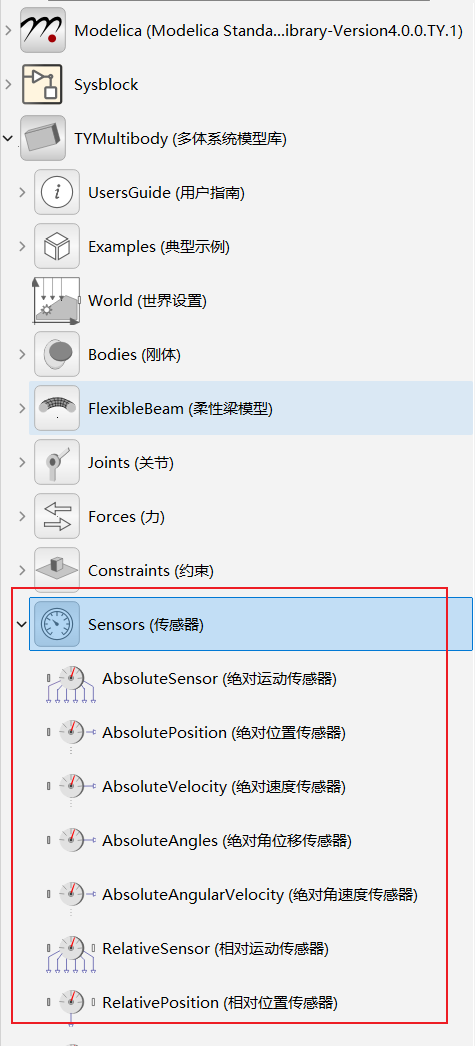

您好，可以使用传感器组件，多体库、机械模型库中都有相关的传感器组件，可以将位移、力等转换成real数据进行求和处理。
