Sysplorer平台上搭建的并网逆变器电力电子模型使用网表工具导出为网表
一般问题
发布于 2025-07-26 15:01:41
查看 5过去337天

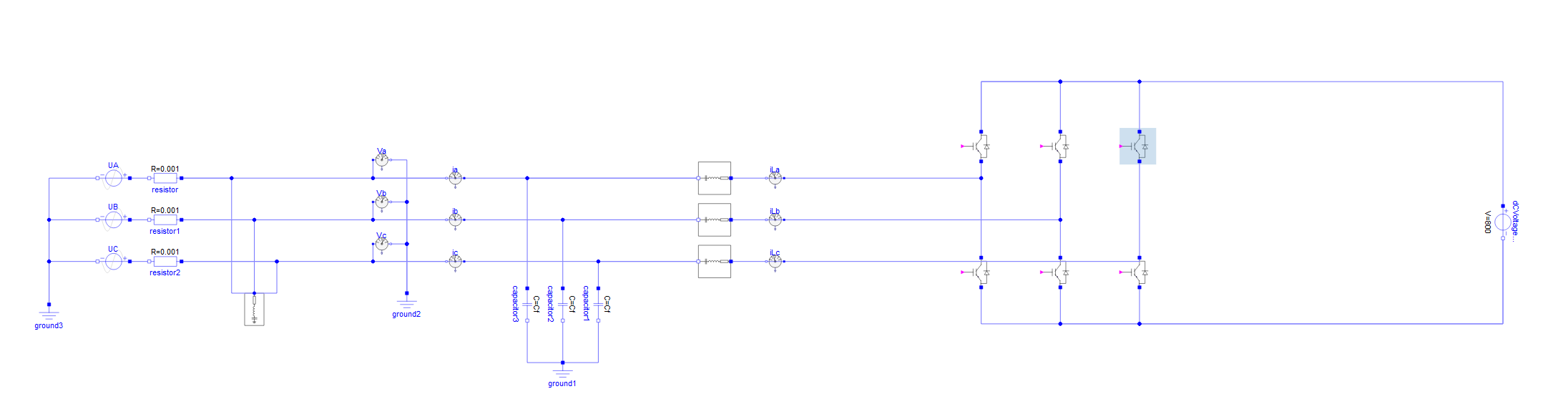

请教一下！我搭建的并网逆变器fpga模型
使用网表工具导出网表，得到的网表文件如附件所示，不太理解如何通过网表文件得到各个元件之间的连线关系，如CurrentSensor:Main_circuit.ib;() [0] {15, 16}不太清晰后面的{15, 16}如何得来的，可以详细解析一下吗？
所属专栏：Syslab基础平台
产品信息：Sysplorer系统建模仿真环境
