三相电源另外一端如何连接
一般问题
发布于 2025-08-06 16:00:29
查看 7过去326天

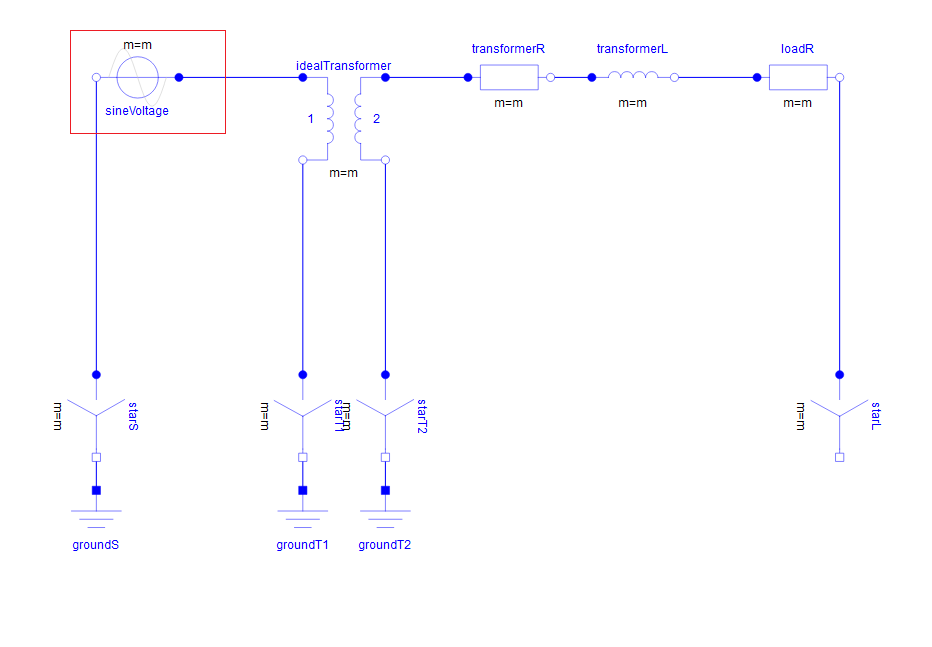

你好！我看Modelica.Electrical.Polyphase.Sources.SineVoltage在示例里面通常一侧需要连接星形节点，然后再接地，还有其它接法吗？如连接Delta节点可以给一个简单示例吗？
还想请教一下，Modelica.Electrical.Polyphase.Basic.Star是不是还可以当作三相转一相元件使用（看着功能类似）
所属专栏：Modelica语言
产品信息：Sysplorer系统建模仿真环境
