跟其它软件仿真结果不一样
一般问题
发布于 2025-08-12 09:18:52
查看 20过去321天

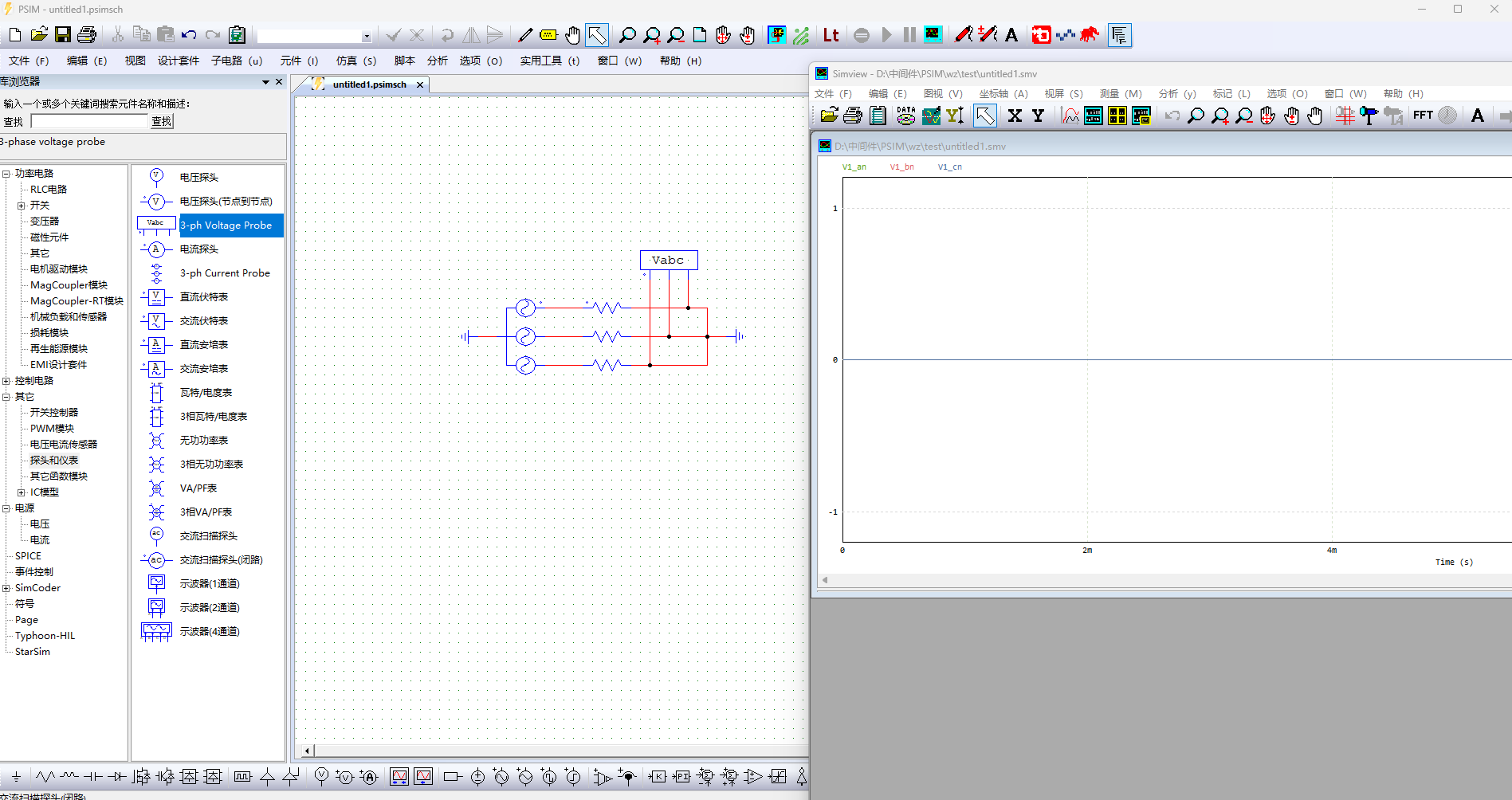

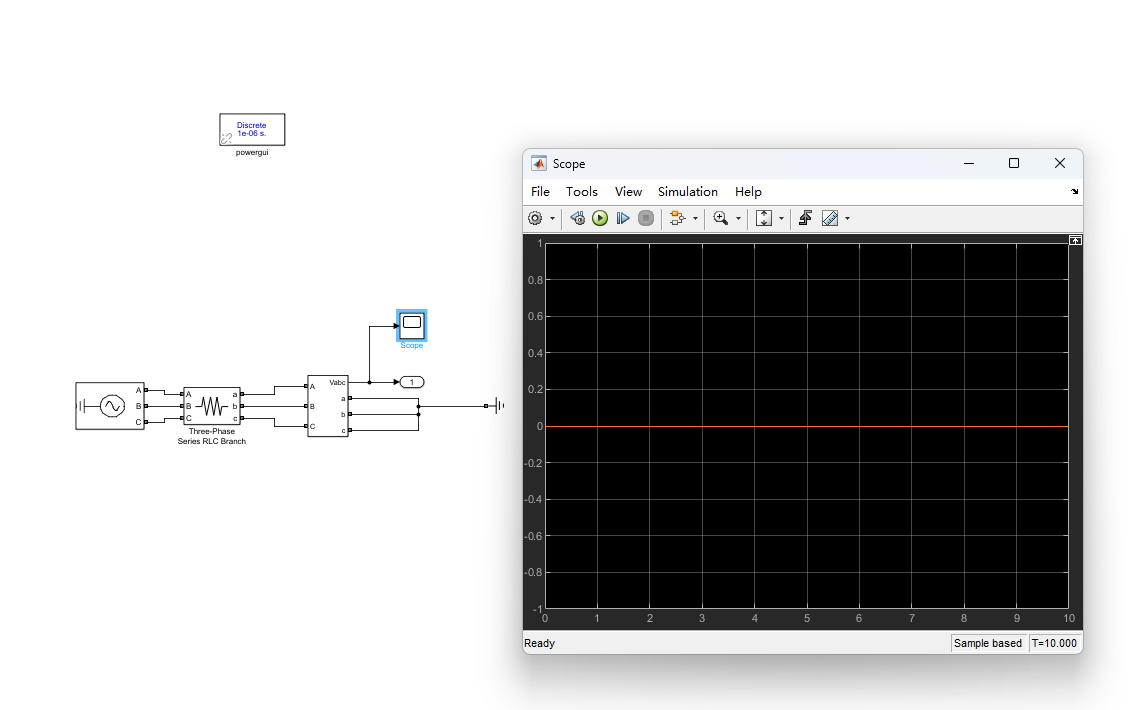

你好！请问一下在2025b上搭建模型，仿真结果跟matlab和PSIM不一致，可以帮忙解答一下原因吗？理解后面应该是短路，电压表结果应该是0
所属专栏：Modelica语言
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 3
发布于 2025-08-12 15:37:10

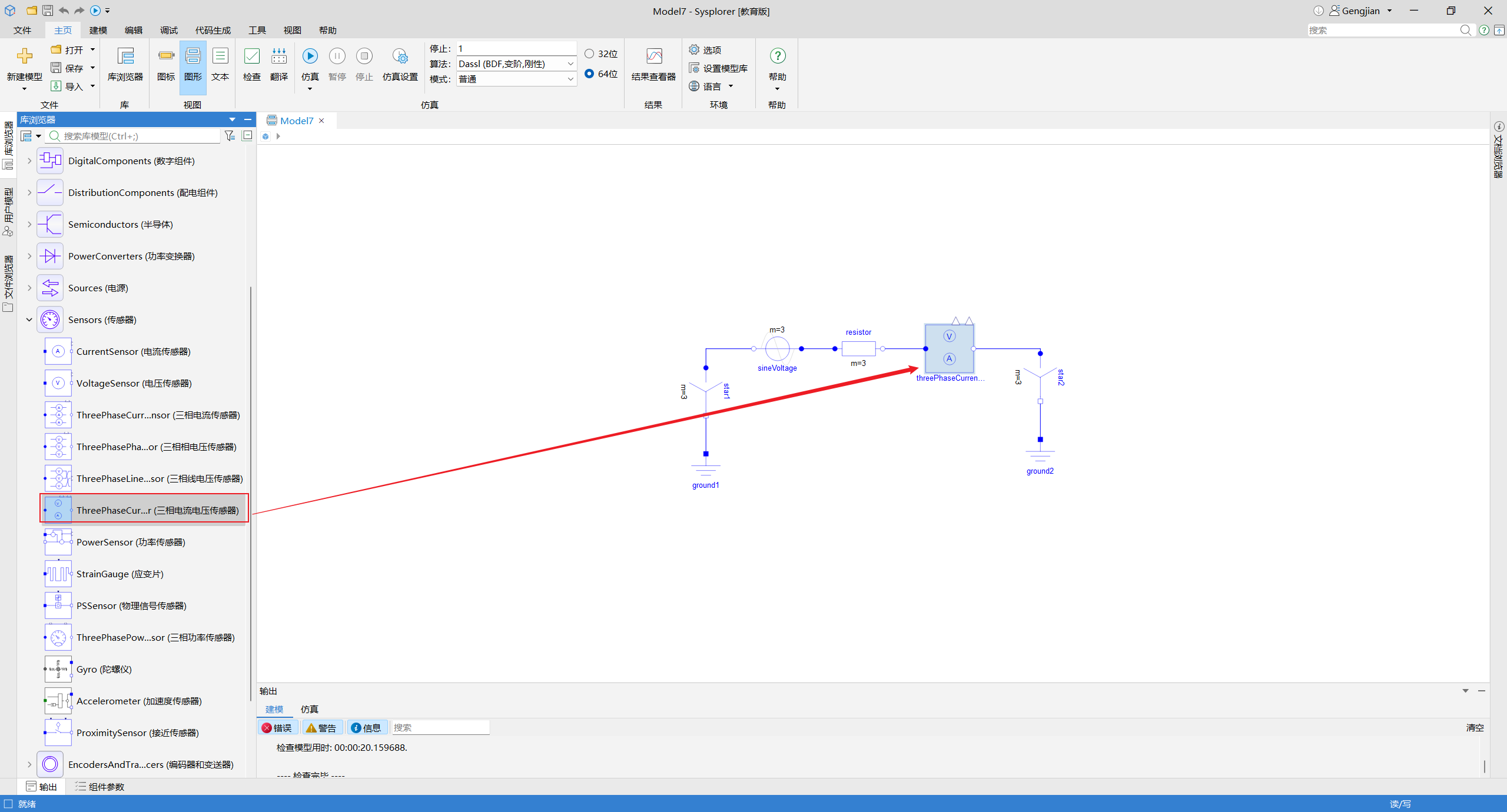

您好，可以使用 TYElectrical.Sensors.ThreePhaseCurrentAndVoltageSensor 组件来建模，如下图所示。

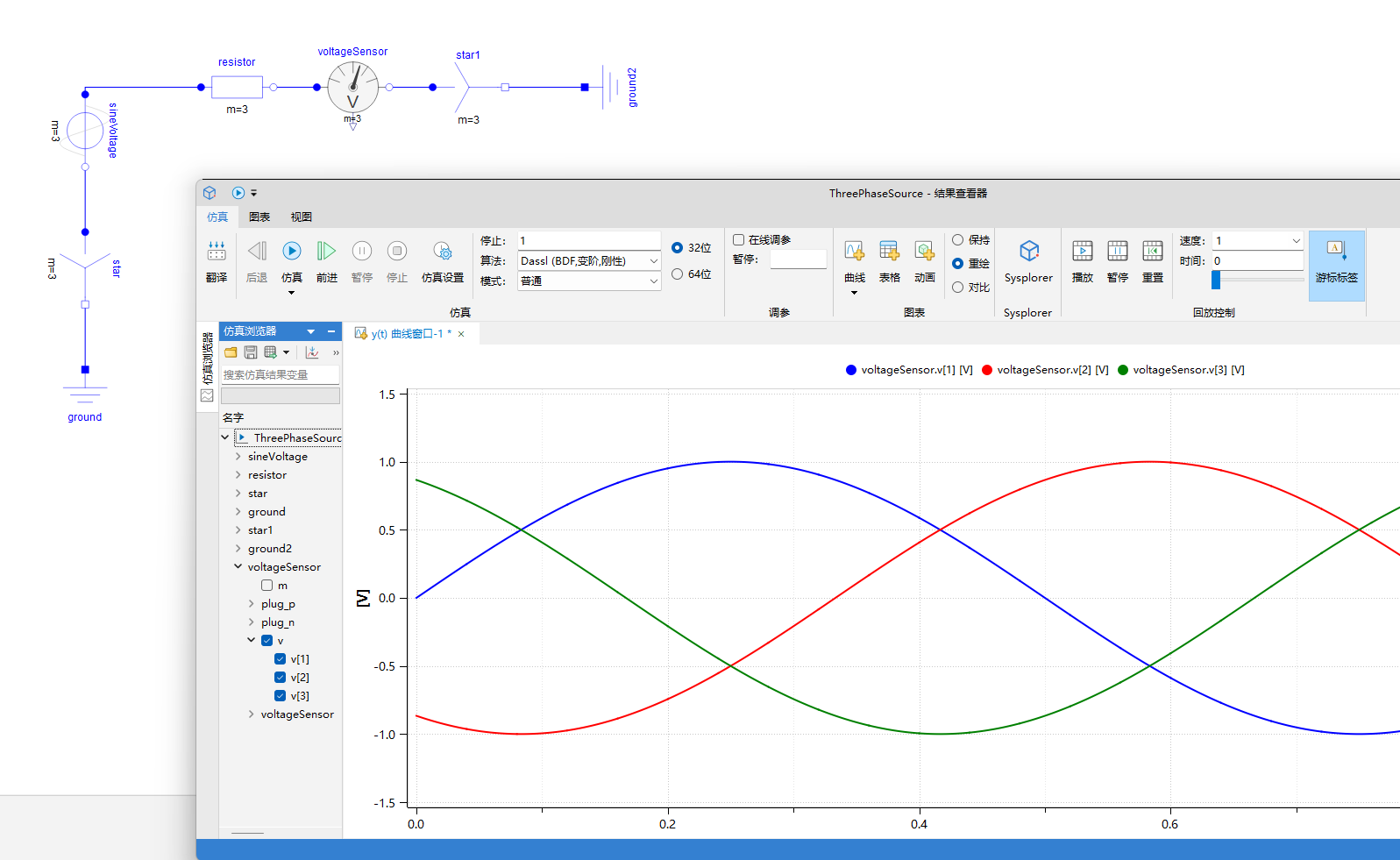

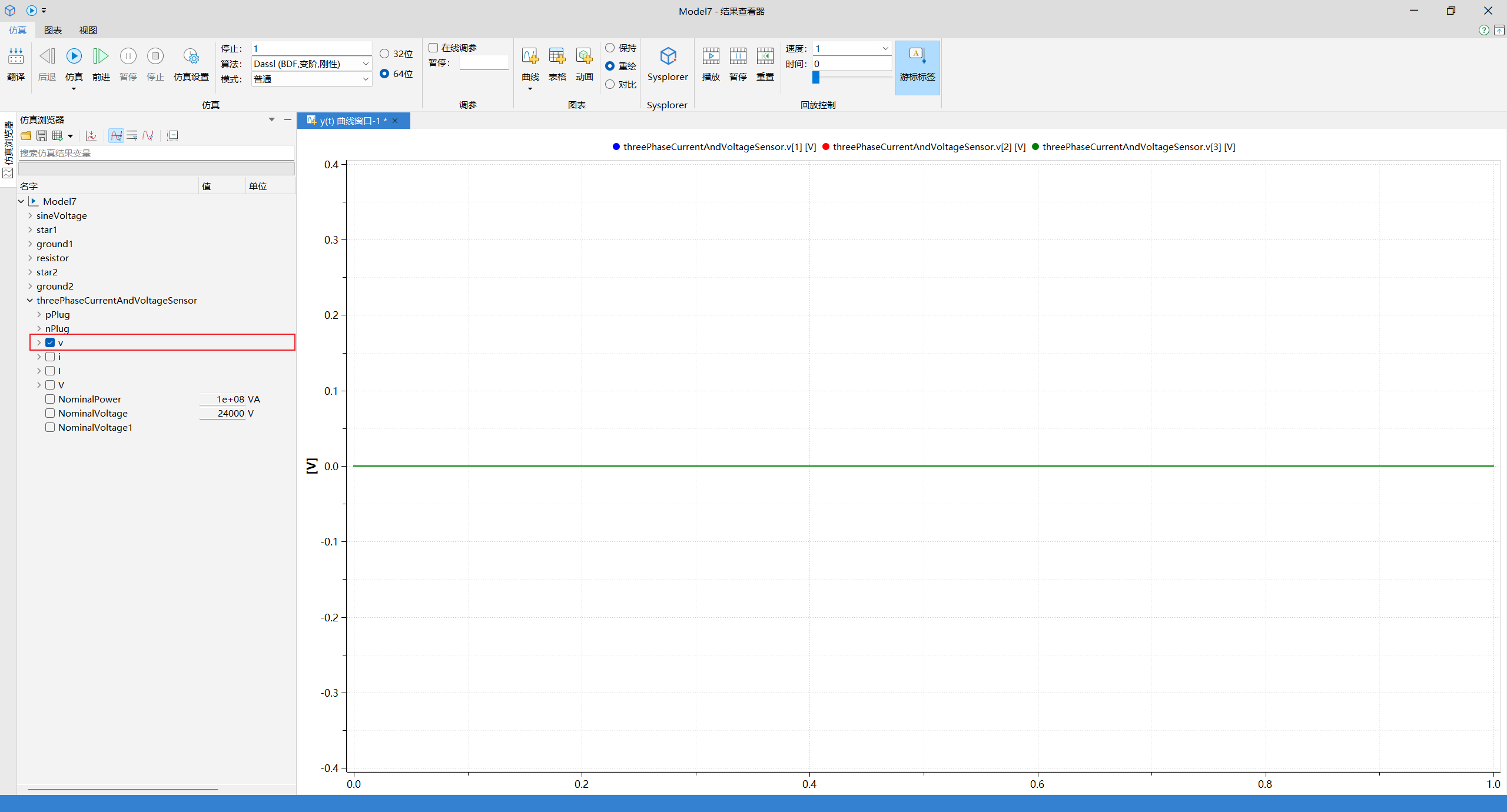

结果如下图所示
发布于 2025-08-12 16:08:07

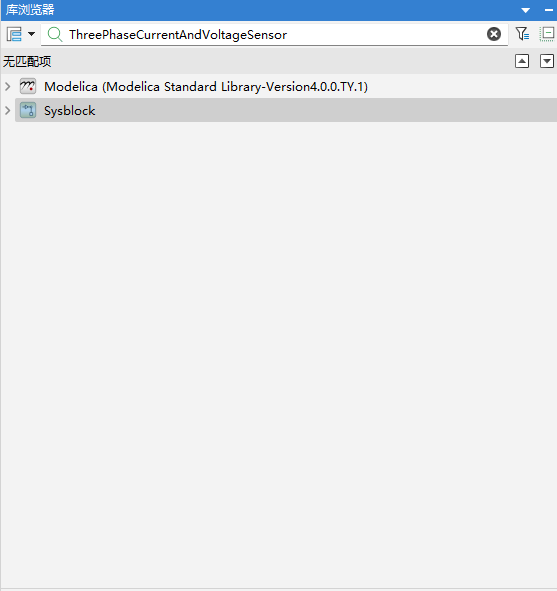

上述这个元件搜索不到
顺便请教一下，我上述用的电压表元件不是用来测量电压的吗
发布于 2025-09-04 19:10:08
你好，此类问题成功解决了吗？
