大型模型的仿真速度
一般问题
发布于 2025-08-12 15:53:05
查看 13过去320天
如何提升大型模型（20w+方程和变量）的仿真速度？
在不考虑封装FMU，或者牺牲部分方程，作简化的条件下优化仿真速度？
是否有办法更充分地利用电脑的计算资源？（Sysplorer只利用了我个人电脑1%-7%的CPU资源和约15%的内存资源（2-3G））
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
如何提升大型模型（20w+方程和变量）的仿真速度？
在不考虑封装FMU，或者牺牲部分方程，作简化的条件下优化仿真速度？
是否有办法更充分地利用电脑的计算资源？（Sysplorer只利用了我个人电脑1%-7%的CPU资源和约15%的内存资源（2-3G））

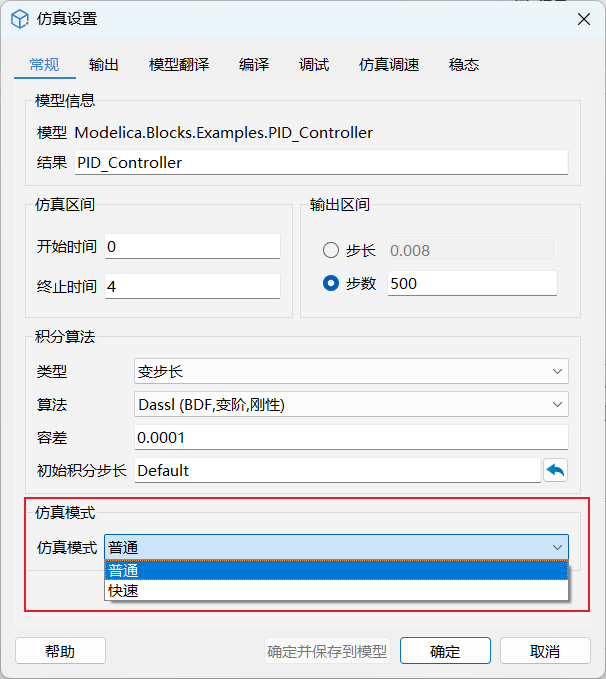

您好，可以选择在仿真设置中选择快速仿真模式。

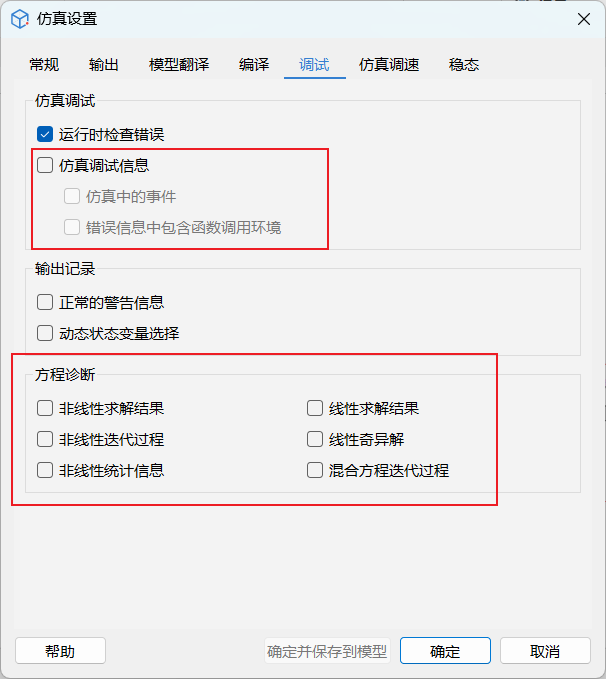

影响仿真速度的原因有很多，需要结合模型进行诊断，可以打开仿真调试界面中的选项确定具体原因。
