二电平桥模型以及三电平桥模型
一般问题
发布于 2025-08-12 20:42:21
查看 15过去320天
你好！请问一下模型库里面有电力电子领域的二电平桥和三电平桥模型吗？

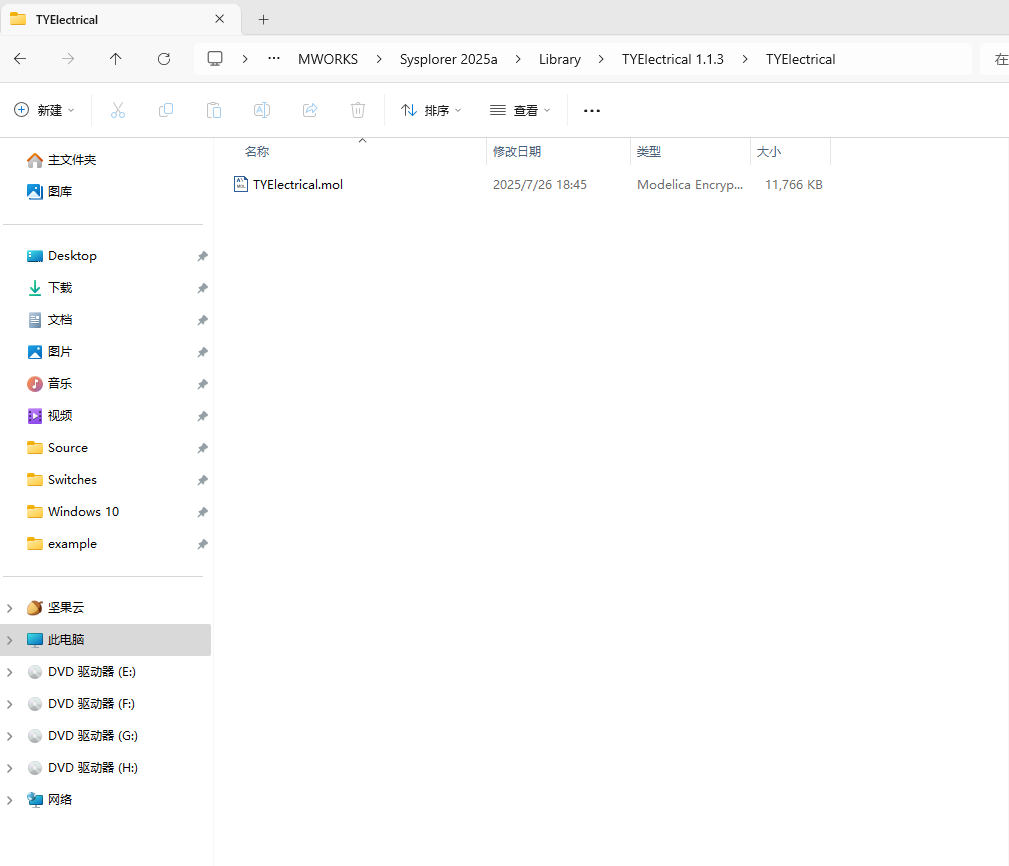

顺便请教一下如何封装模型库，有很多电力电子领域常用的模型可能同元没有，我想向同元自有的模型库一样，可以直接加载（顺便方便其他人使用）, 我已经制作好了.mo，请问如何封装为.mol,就像基础电气模型库一样，可以直接被同元加载
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
采纳的回答
发布于 2025-08-13 10:38:10
全部回答 2
发布于 2025-08-13 09:43:17
您好，基础电气模型库中暂未提供电力电子领域的二电平桥和三电平桥模型，需要您自行开发。

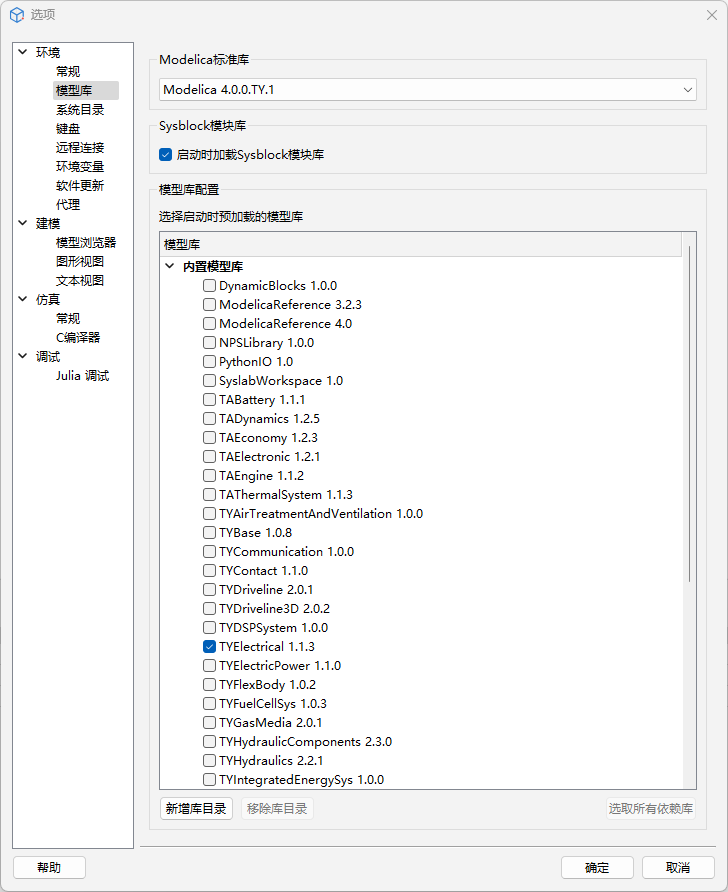

如您需要实现模型库的预加载，可以在“设置模型库”中进行设置，详情可参考本视频教程MWORKS.Syslorer软件基础教程——②模型库加载。

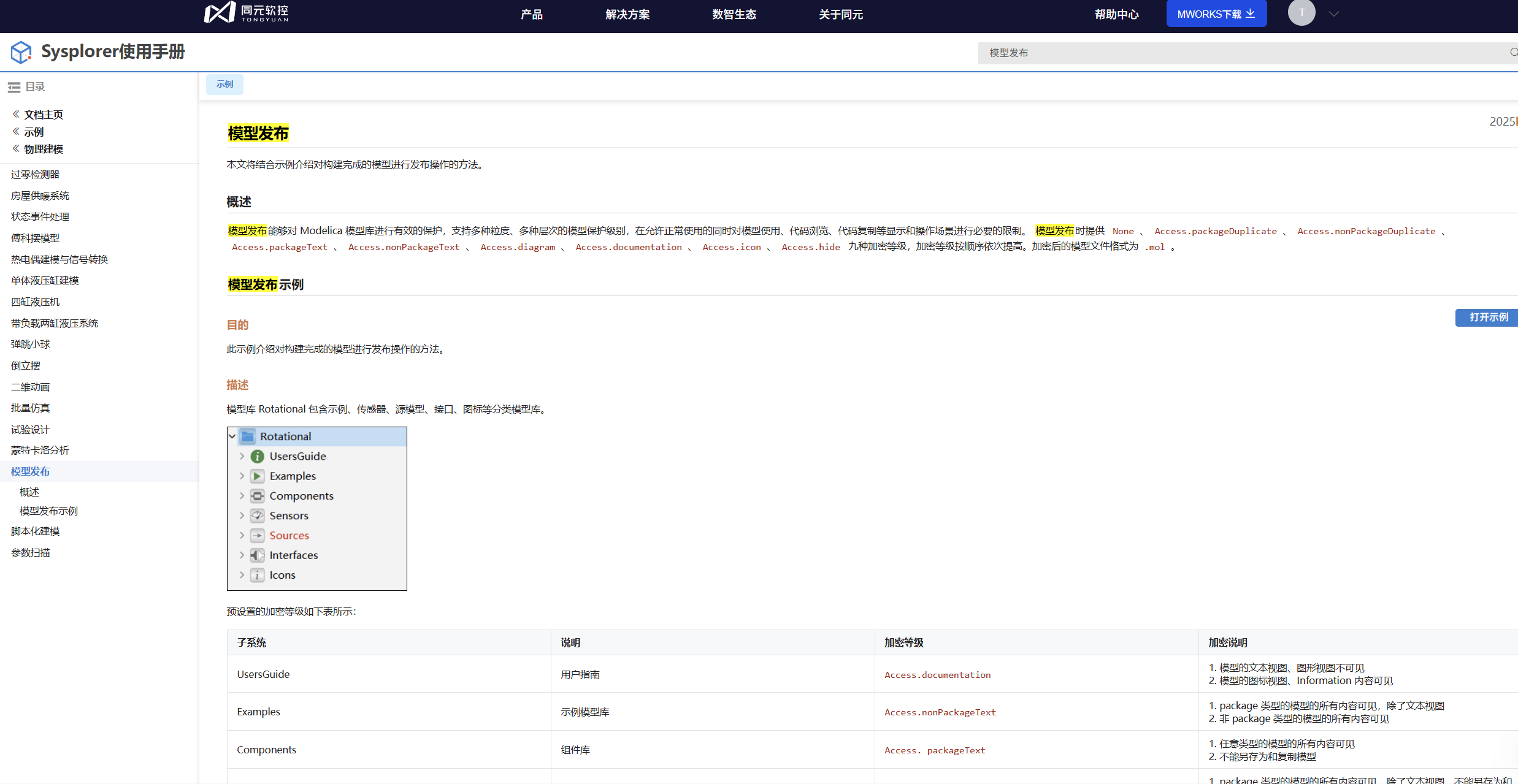

发布于 2025-08-13 10:38:10
