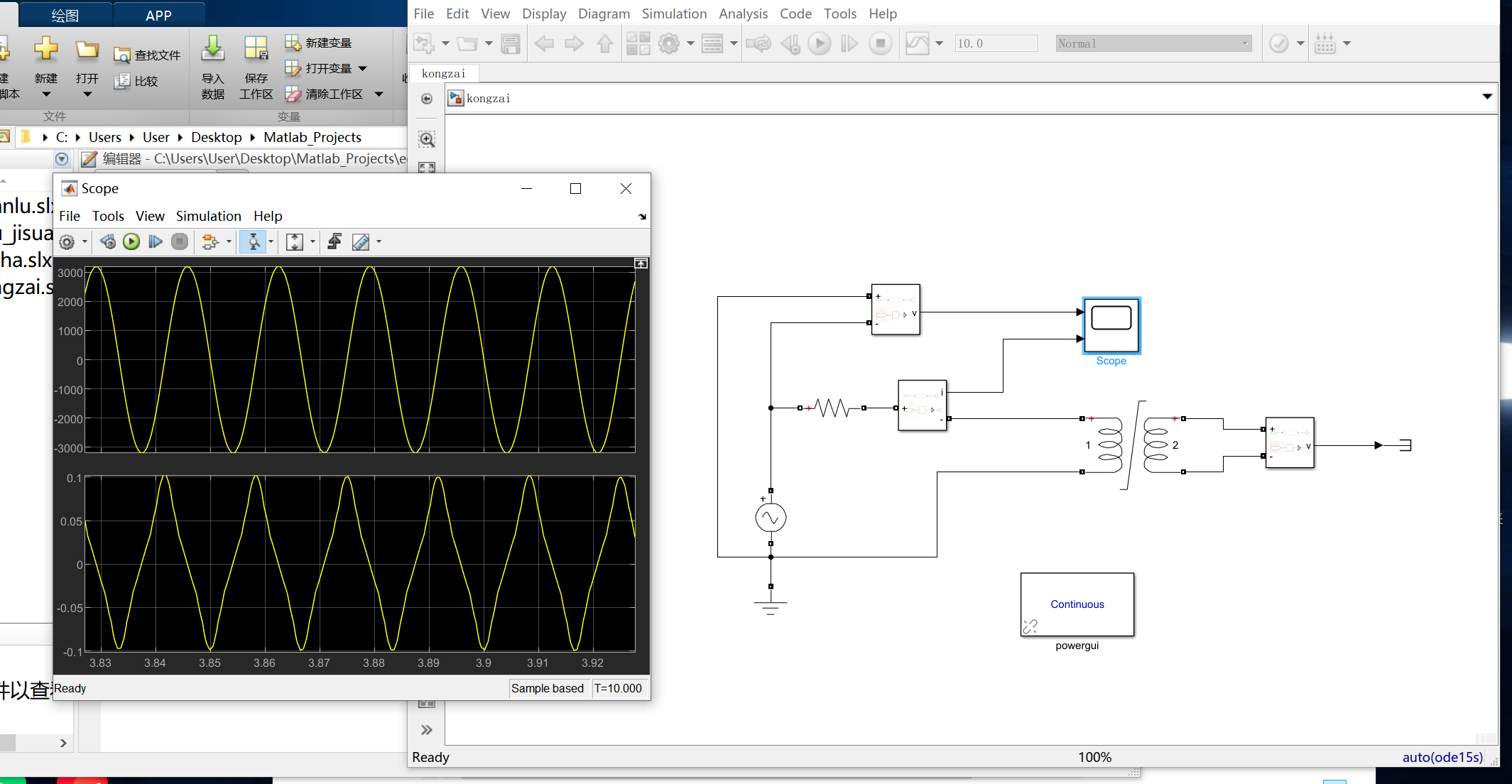

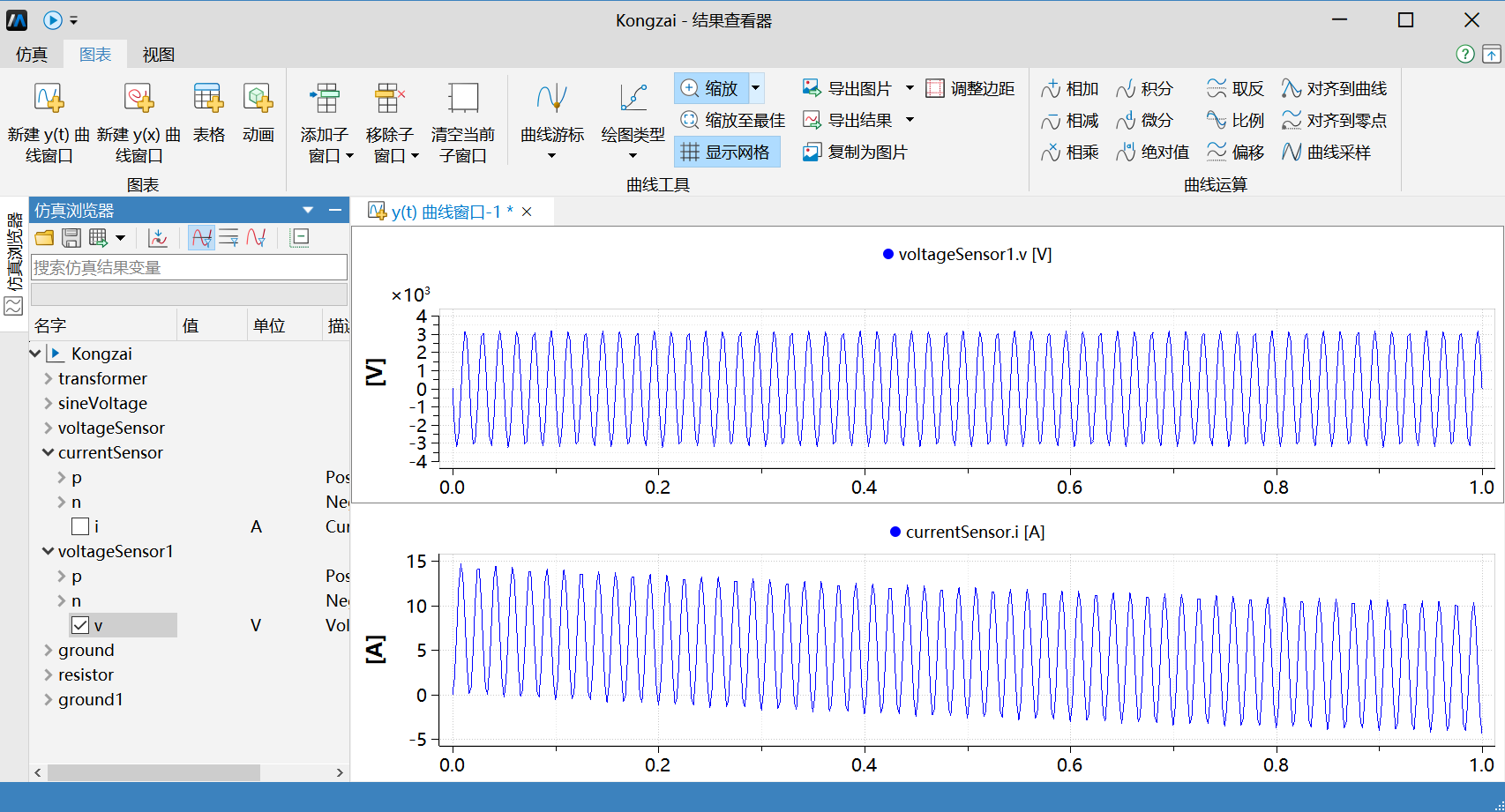

问题求助！ 图像好像不符合 有点区别一般问题wechat-6896发布于 2025-08-25 17:39:26查看 6过去307天 电流的图像有点差别 大佬帮忙找找问题 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0

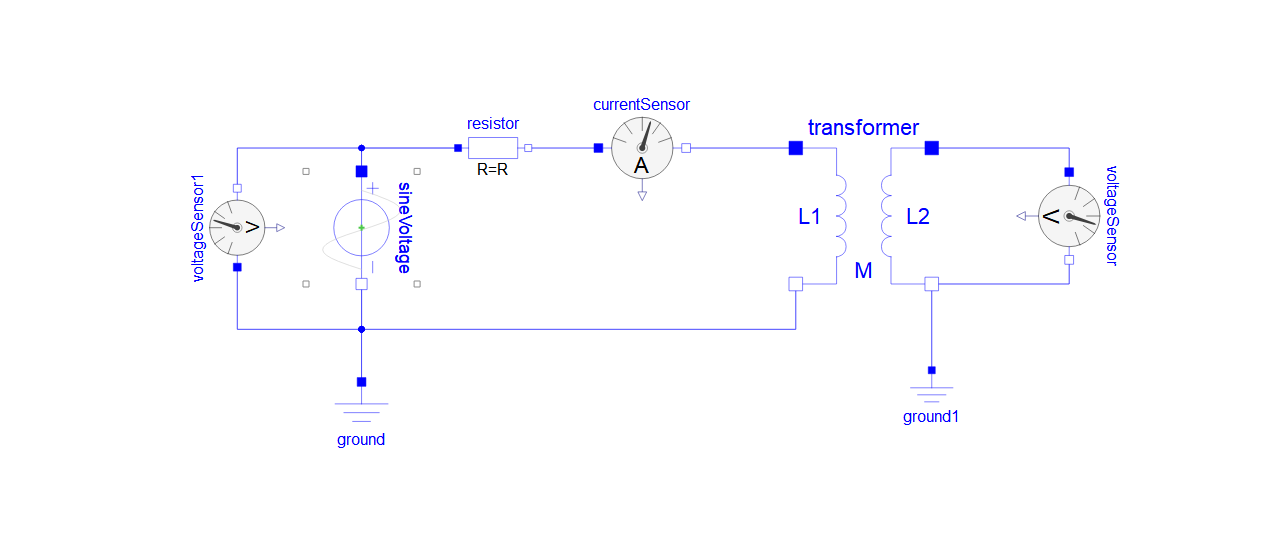

MoHub发布于 2025-08-26 11:22:32您好，Simulink模型中使用的是饱和变压器，当前Sysplorer暂未提供该模型，因此导致仿真结果不一致，您可以根据相关原理基于Modelica语言开发。 0 0回复
