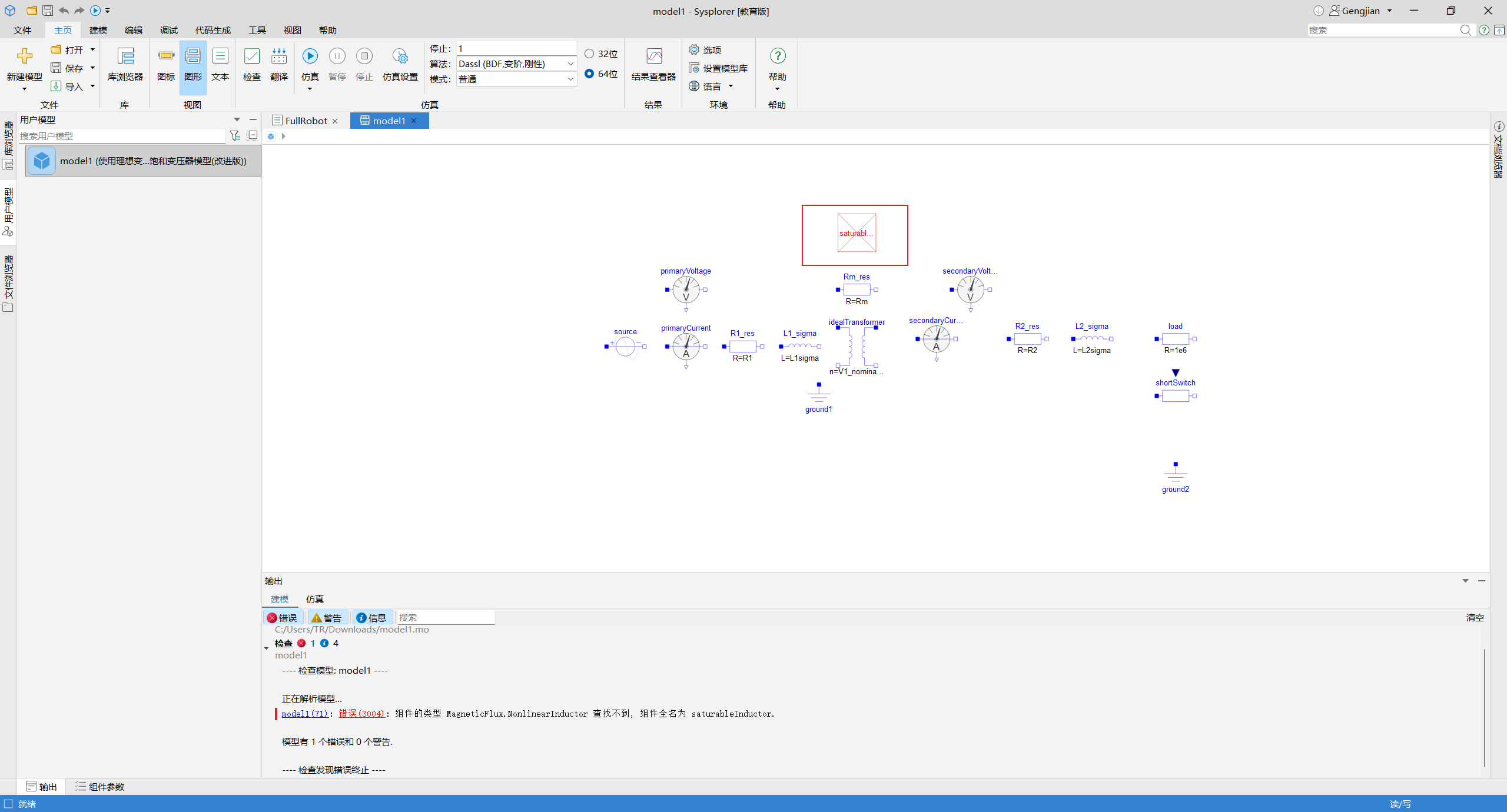

工程师帮我看一下我的代码怎么修改，目的是实现变压器副边短路，用到的是饱和变压器，因为同源标准库中没有饱和变压器，所以利用标准库中的理想变压器加一个非线性电感创造饱和条件，但是出现报错，是同源库中没非线性电感吗？
所属专栏：Modelica语言
产品信息：Sysplorer系统建模仿真环境
1 个附件(6kb) 工程师帮我看一下我的代码怎么修改，目的是实现变压器副边短路，用到的是饱和变压器，因为同源标准库中没有饱和变压器，所以利用标准库中的理想变压器加一个非线性电感创造饱和条件，但是出现报错，是同源库中没非线性电感吗？
1 个附件(6kb) 您好，您的模型不完整，且都没有连线，请上传完整代码。
