结果曲线中没有角度信息
一般问题
发布于 2025-09-20 17:18:39
查看 7过去281天

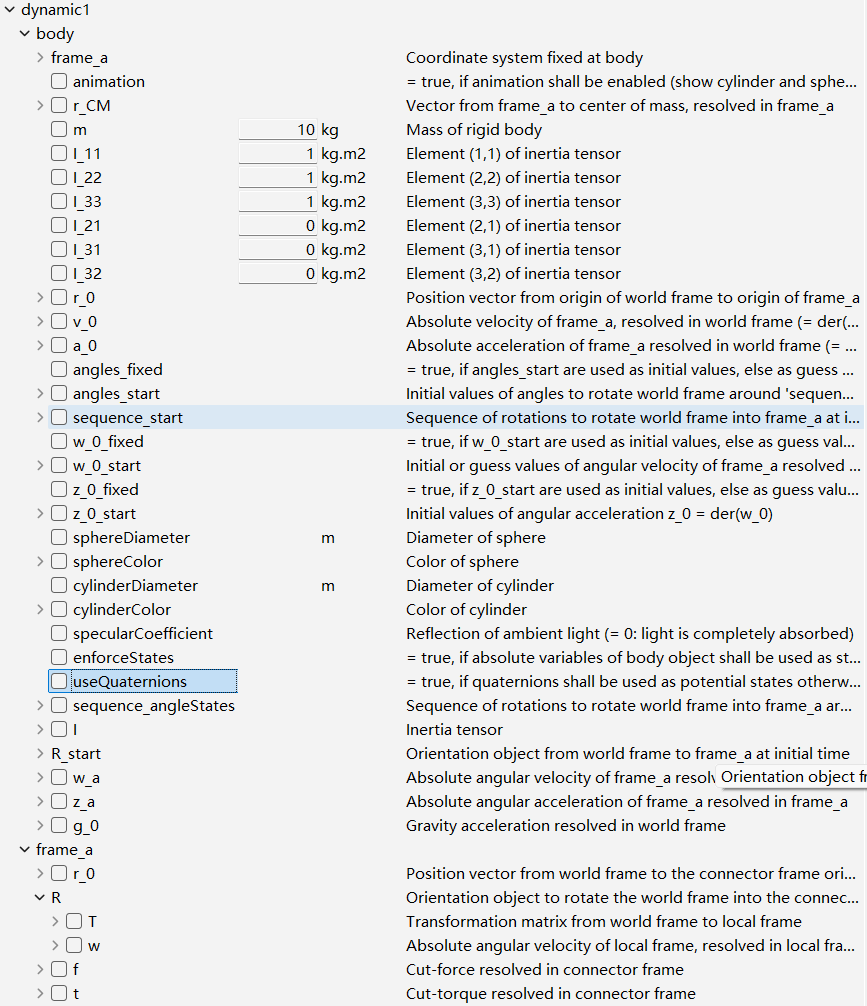

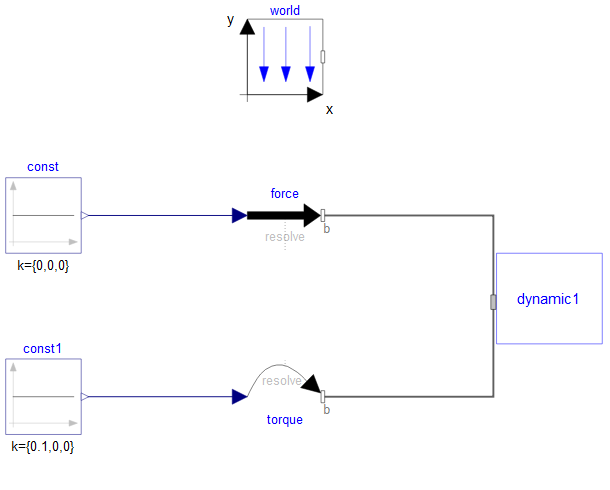

我想看姿态角度信息以四元数或者姿态角显示，但是我只看到了旋转矩阵的表示
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
我想看姿态角度信息以四元数或者姿态角显示，但是我只看到了旋转矩阵的表示

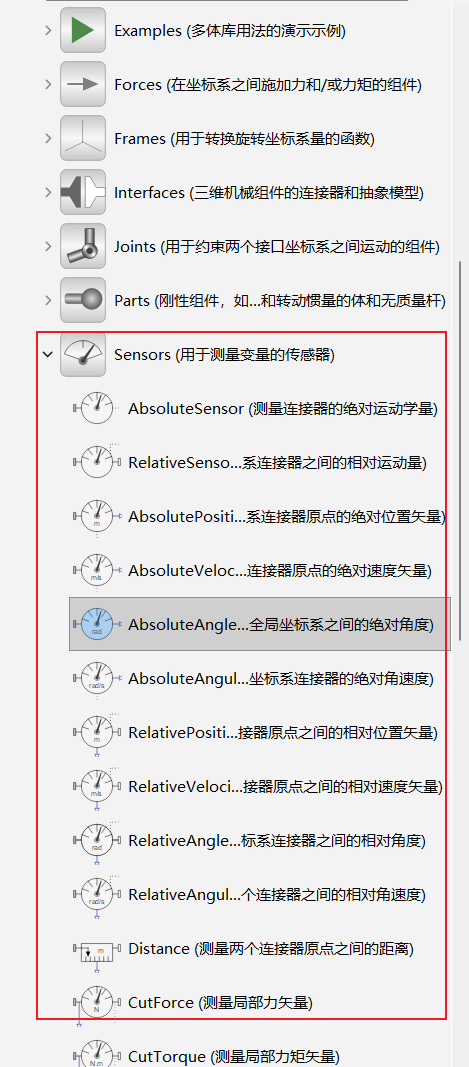

您好，如果要查看角度的话，可以使用角度传感器组件（Modelica.Mechanics.MultiBody.Sensors.AbsoluteAngles），如下图所示。
您好，如果要查看角度的话，可以使用角度传感器组件（Modelica.Mechanics.MultiBody.Sensors.AbsoluteAngles），如下图所示。
