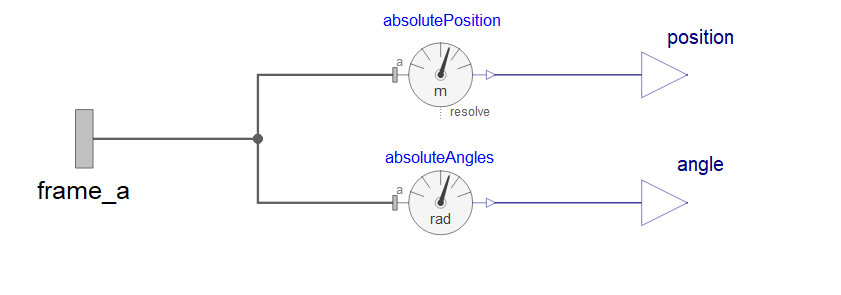

输出端口显示问题一般问题Oreo发布于 2025-09-20 19:34:07查看 10过去281天 如图，两个输出端口在Sensor块的中间，如何解决这个问题，让它在块的右边 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 1 踩 0 收藏 0
