液压缸和prismatic连接问题一般问题
发布于 2025-09-23 10:19:06
查看 16过去414天

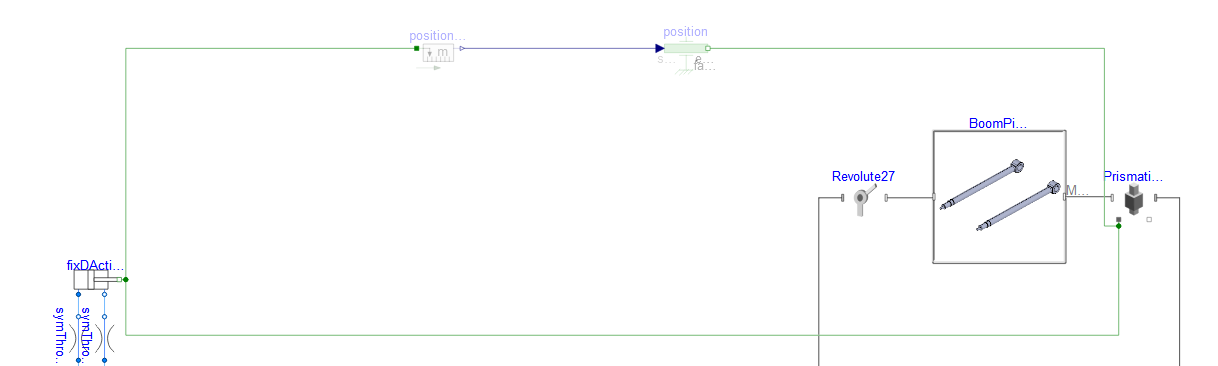

请问液压缸直接与prismatic连接，还是通过传感器将位移转为数据，再通过position与prismatic连接呢？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
请问液压缸直接与prismatic连接，还是通过传感器将位移转为数据，再通过position与prismatic连接呢？
您好，液压缸的输出可以直接和运动副（prismatic）直接连接，两者接口输出的变量是一致的。
