发布于 2025-09-24 12:40:48
查看 9过去277天

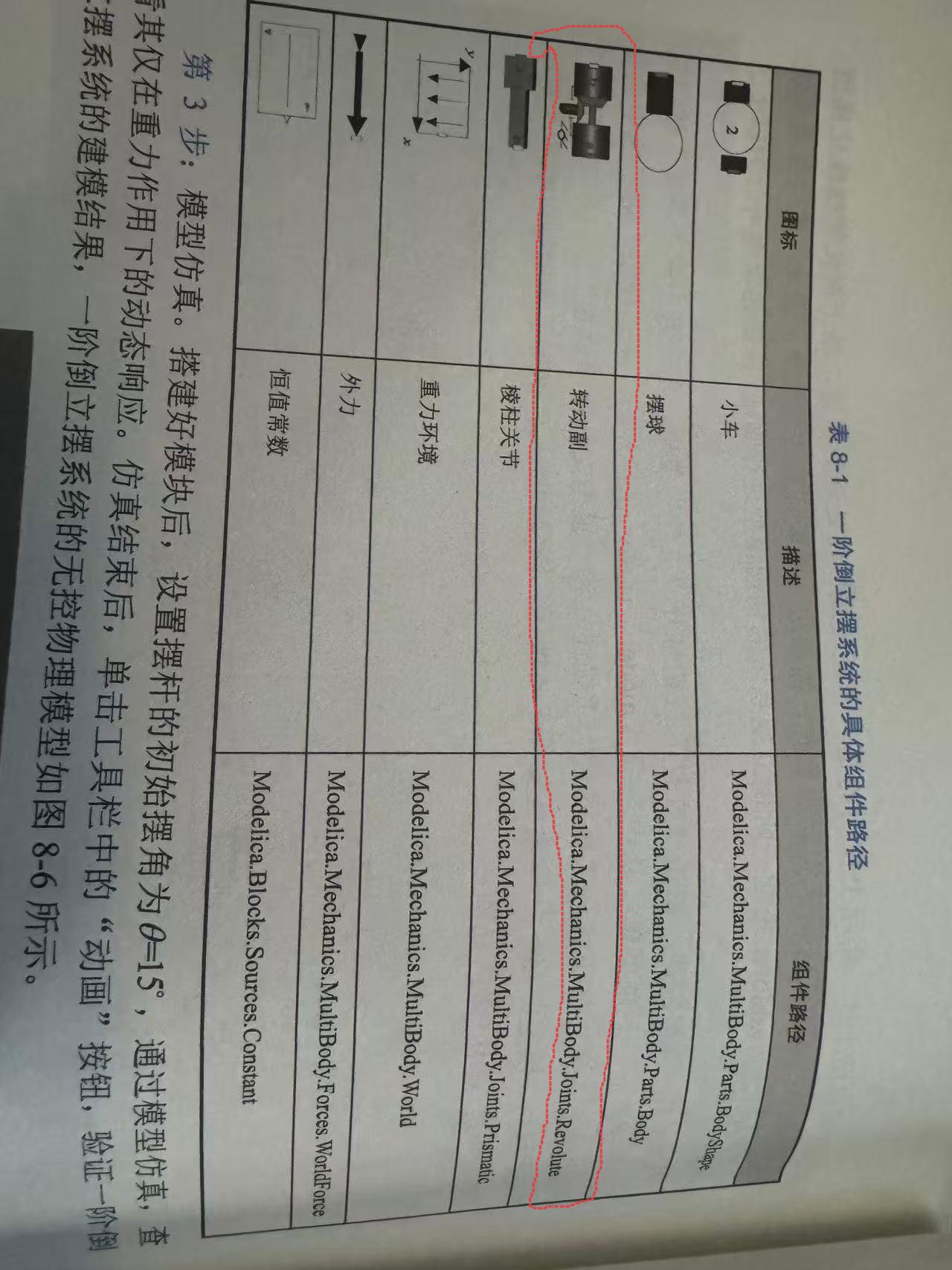

我按书上的传动轴组件路径找的，但是不一样，导致后续链接传感器时有问题，目前我还没有找到与书上相同的
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境

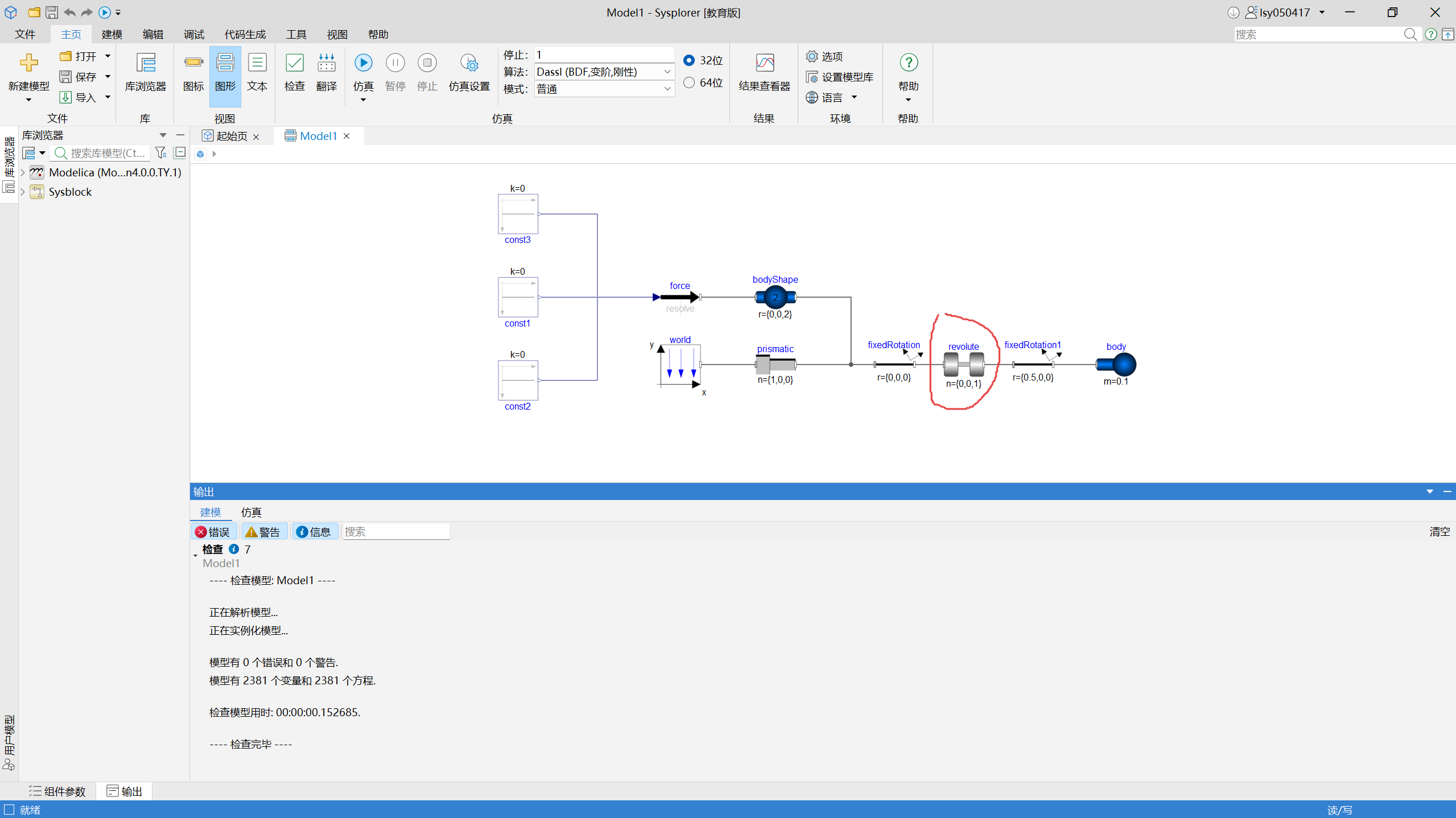

1 个附件(4kb) 我按书上的传动轴组件路径找的，但是不一样，导致后续链接传感器时有问题，目前我还没有找到与书上相同的

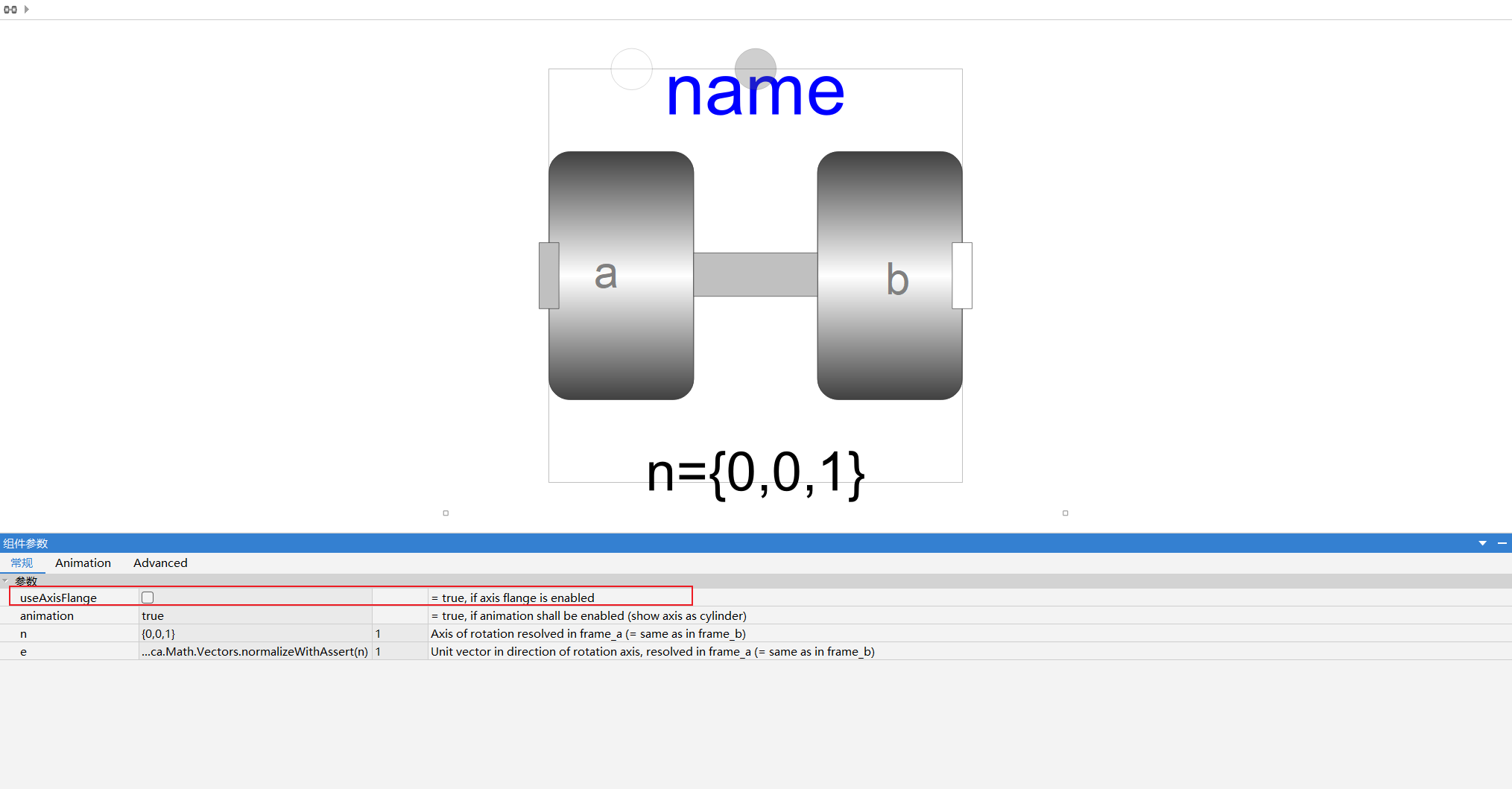

1 个附件(4kb) 您好，该组件需要在参数面板上勾选useAxisFlange参数，才可以连接其他传感器。
您好，该组件需要在参数面板上勾选useAxisFlange参数，才可以连接其他传感器。
