工程师你好，这个做的是电机学-直流电机效率分析，

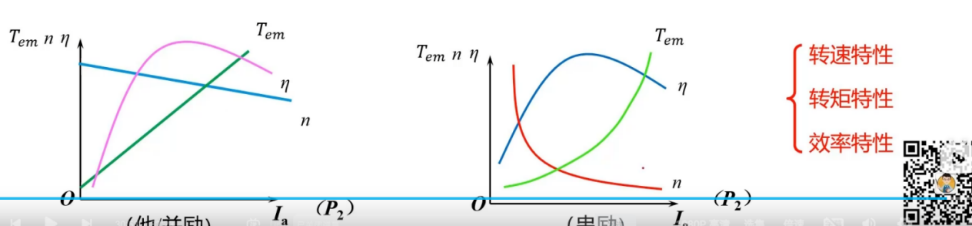

这是matalab中的仿真结果，下面附件是程序，不知道是代码问题还是其他原因，望指点。
所属专栏：Modelica语言
产品信息：Sysplorer系统建模仿真环境
1 个附件(621kb) 工程师你好，这个做的是电机学-直流电机效率分析，
这是matalab中的仿真结果，下面附件是程序，不知道是代码问题还是其他原因，望指点。
1 个附件(621kb) 您好，您的模型为单点数据，需要修改您的模型，把电流信号修改为时变信号，而不是现在这种迭代的信号。
如果不修改当前模型的话，可参考本贴下的回答求助！
