port_A接口的变量要与外部泵模块的输出相连，为什么这缺少二个方程.
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
3 个附件(114kb) port_A接口的变量要与外部泵模块的输出相连，为什么这缺少二个方程.

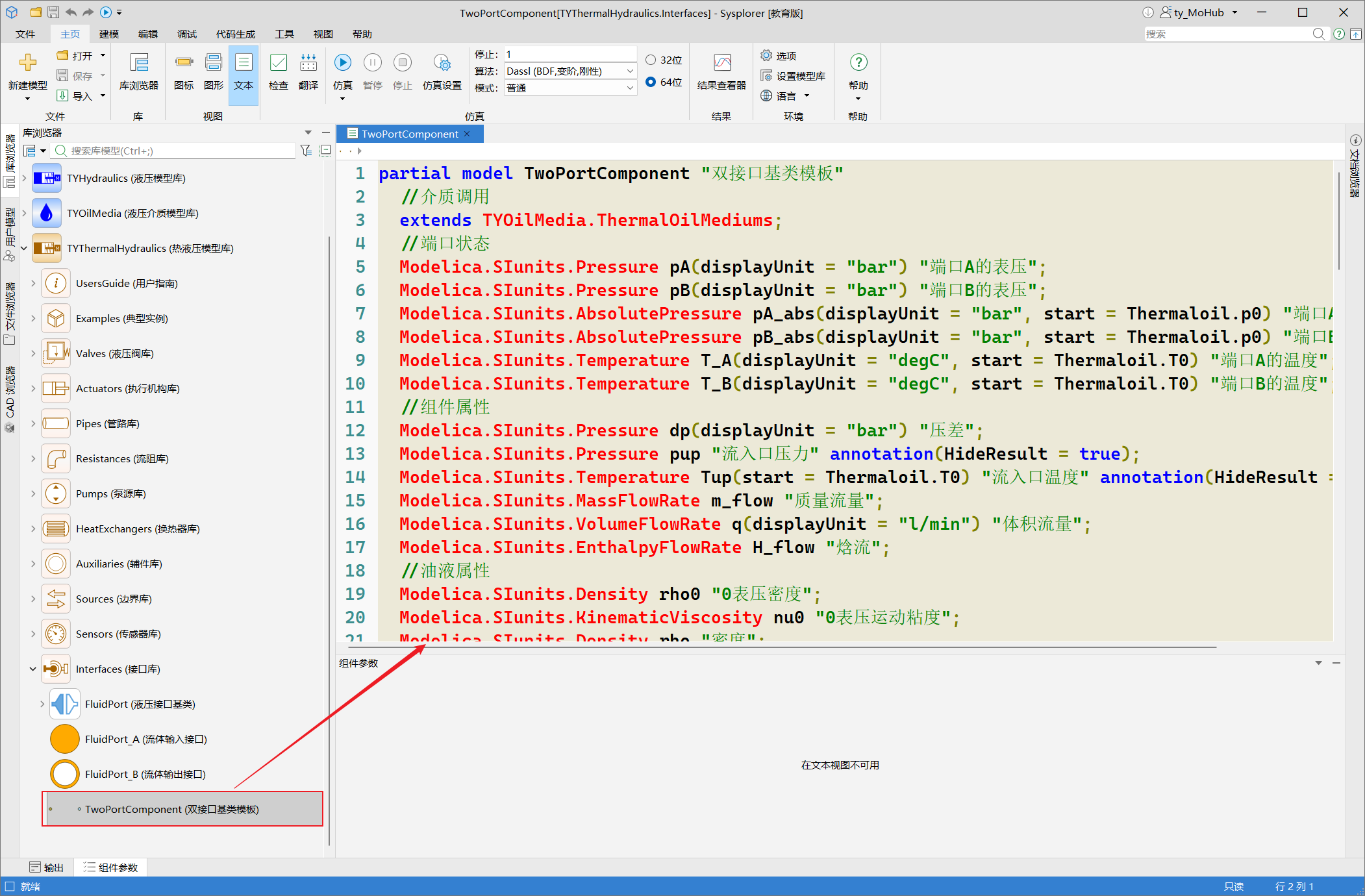

3 个附件(114kb) 您好，应该是缺少接口方程导致的，建议您参考图中的模板，在该模板上添加您的方程。
您好，模型存在2个问题
1.初始方程条件给多了，给一个接口的就可以了

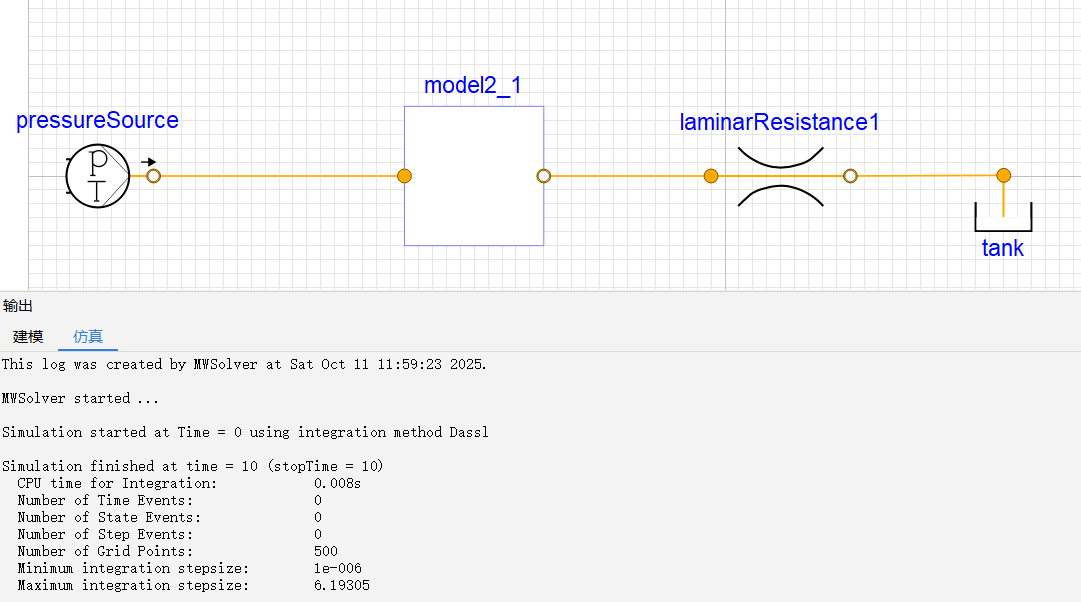

2.在搭建系统模型时，按照容阻相连机制，直接在油箱进口处接个阀类模型即可；
