问题求助
一般问题
发布于 2025-10-14 23:46:51
查看 8过去257天

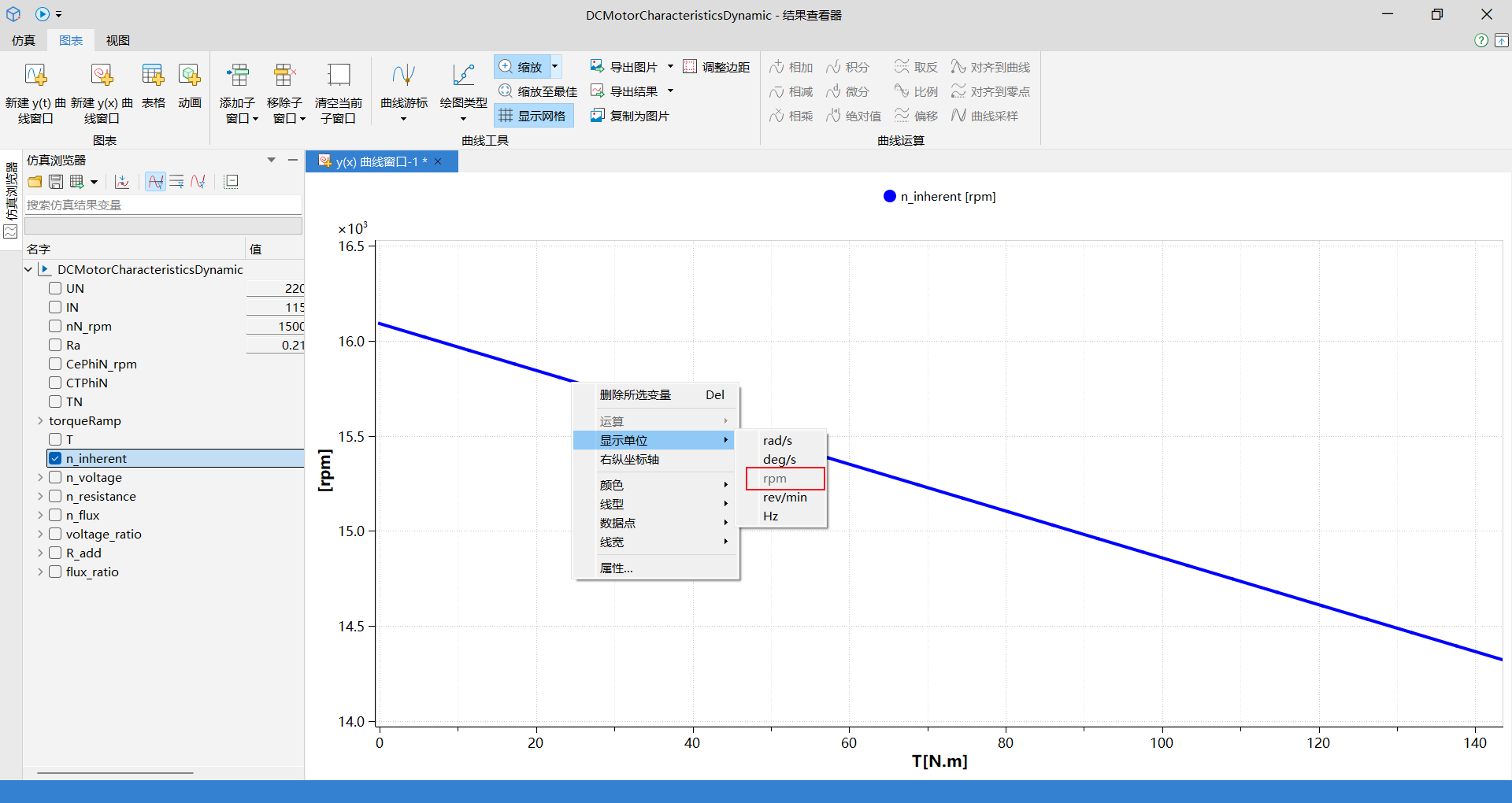

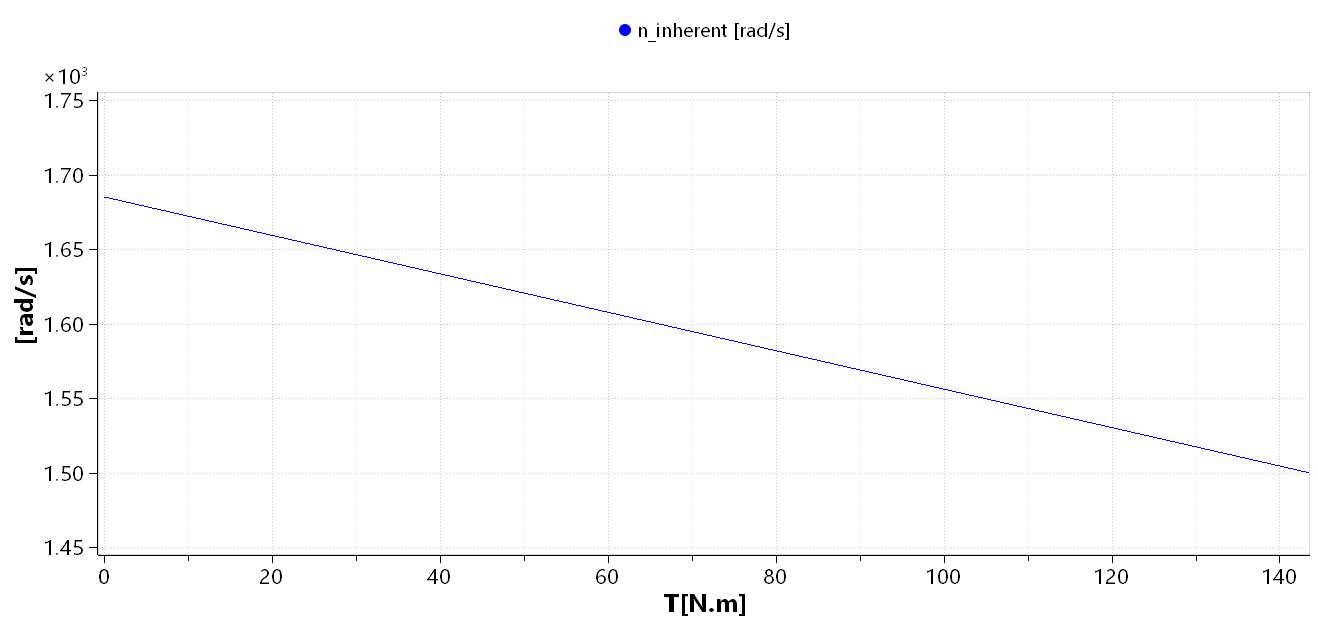

Mworks跑出来的仿真结果正确，纵坐标转速与横坐标电流关系与matlab中的结果符合，图像正确。但是有个问题是matlab中的纵坐标单位显示为rpm，也就等价位rad/min，但是我认为数值是按找rad/min计算的，但是最后仿真结果显示的单位为rad/s，附件为modelica代码与仿真结果图，请求工程师帮忙解决一下描述的问题
所属专栏：Modelica语言
产品信息：Sysplorer系统建模仿真环境
1 个附件(128kb)
