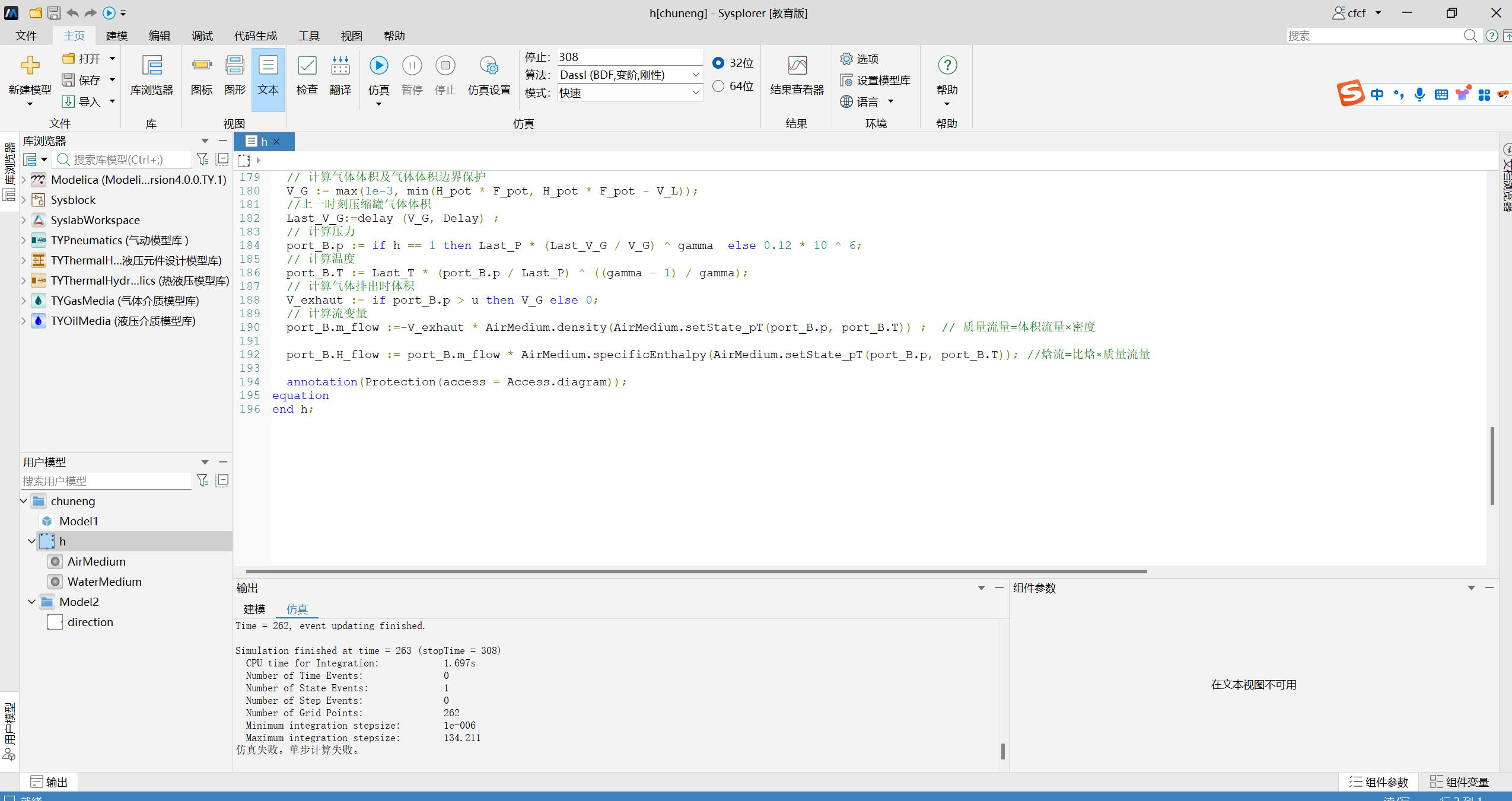

您好，为什么当port_B.m_flow 和port_B.H_flow 有输出值的时候仿真失败了，当为0时就可以仿真
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(232kb) 专栏
标签
高校专区
2 个附件(232kb) 全部回答 3
发布于 2025-10-27 08:54:05
您好，在这种子系统的模型中，不需要对接口特别赋值，可以设置其初始值。
对于这种传递能量的接口，不需要在没有外接输入时，会自动赋值为0，如果有外接输入，则会与外接数据保持一致，直接赋值时会导致各种问题。
您可以说明一下您的需求，我们根据需求提出相应建议。
发布于 2025-10-28 13:54:29

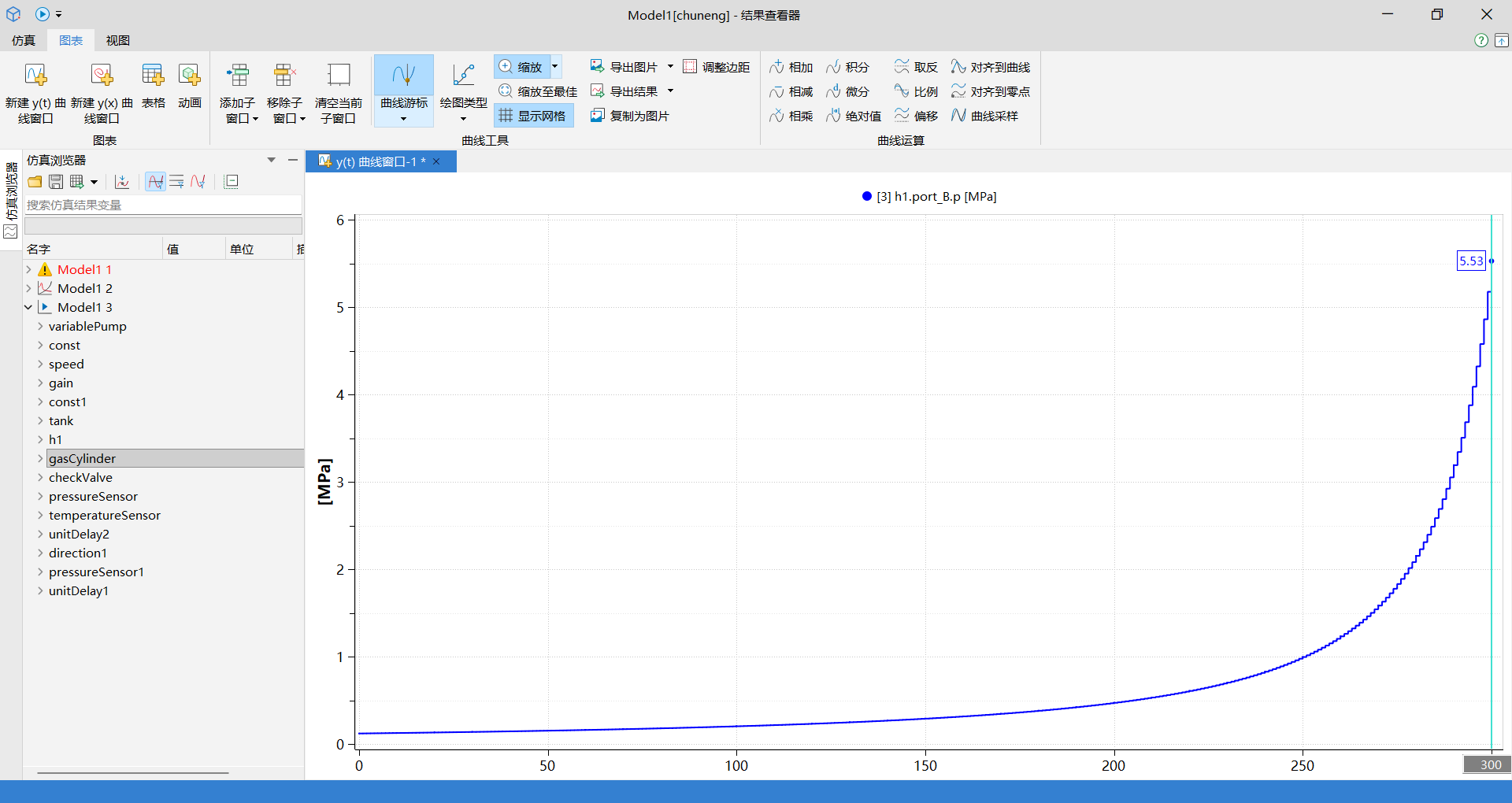

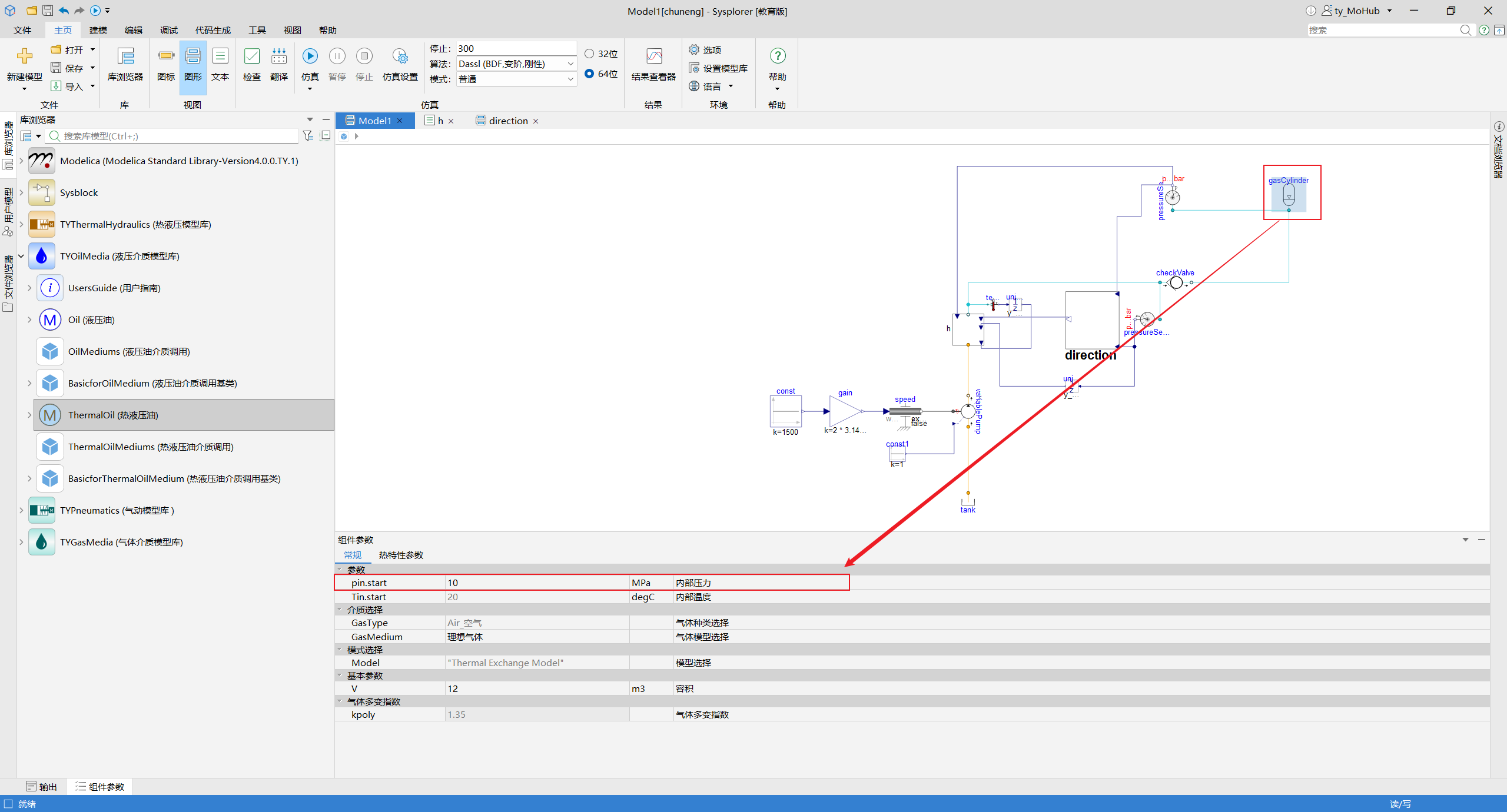

您好，经过确认，出现报错的原因是模型h中接口B的压力超过了蓄能器的内部压力，因此导致仿真计算失败，修改蓄能器内部压力参数之后，即可正常仿真。
发布于 2025-11-03 16:27:43

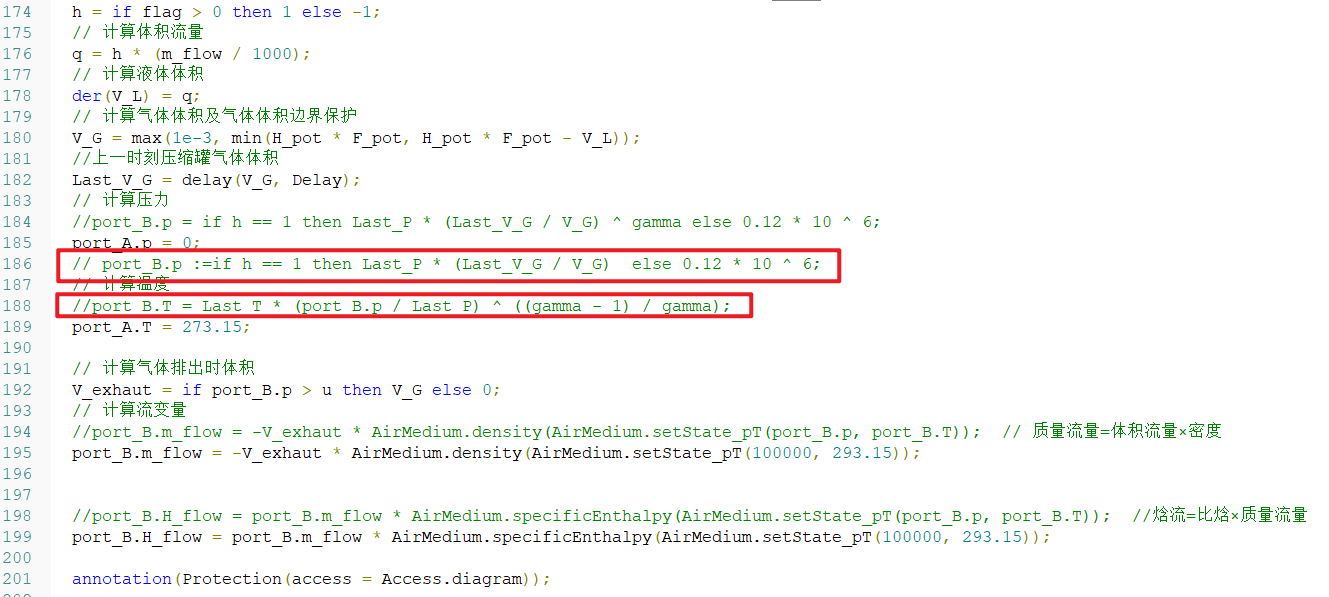

您好，建议梳理一下h这个模型的原理，明确流量和压力哪个是输入，哪个是计算的，由输入接口输入后肯定会经过一些变化在进行传递，比如可通过计算输入接口的压力和温度传出

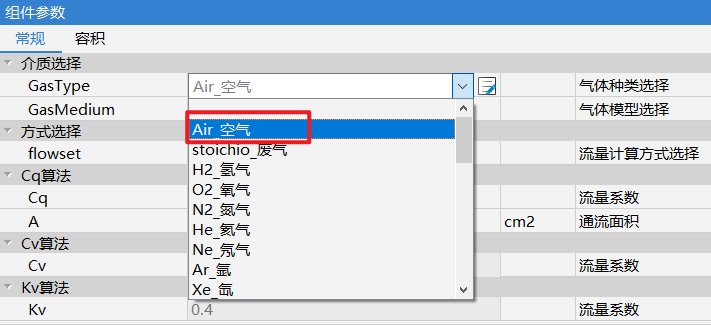

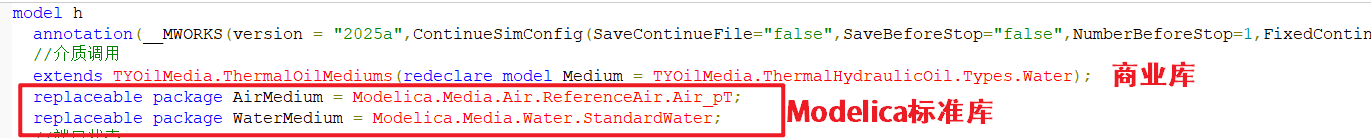

介质统一用商业介质库（TY开头的）的介质，不要和标准库的混用。
模型中采用的纯水介质在热液压模型库中是有的，空气介质在气体介质模型库中也是有的.
