我有两个问题

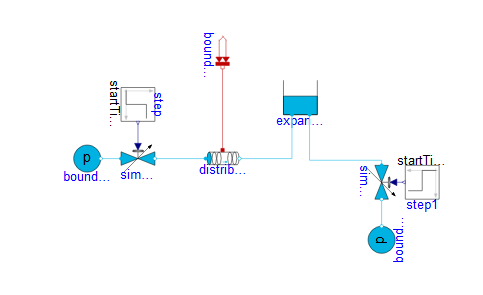

在b站公众号上2025年6月26日发布的‘MWORKS.Sysplorer模型库培训——基础热流体模型库’视频中，模型如下:
第一个问题
其中前五秒流经简单控制阀的曲线如视频中所示

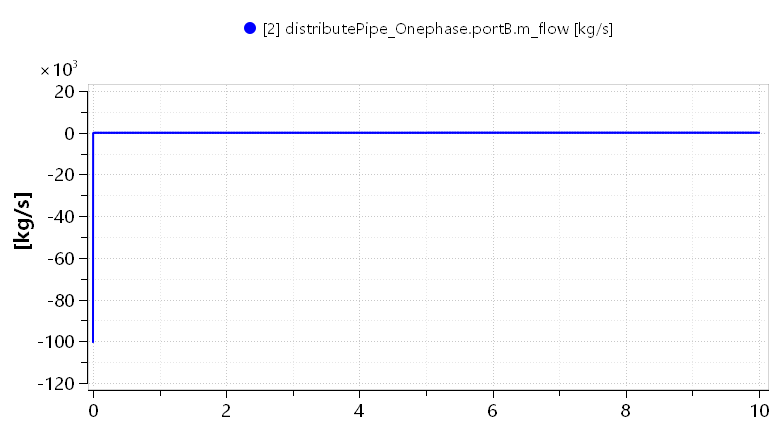

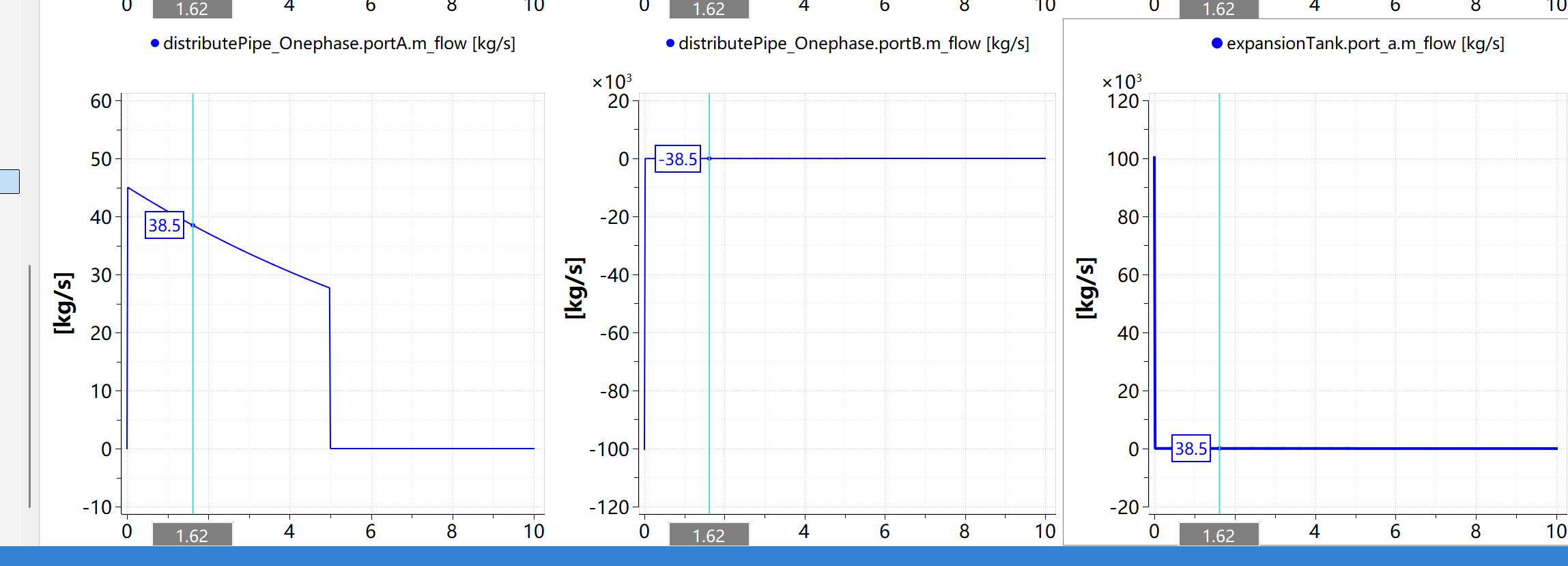

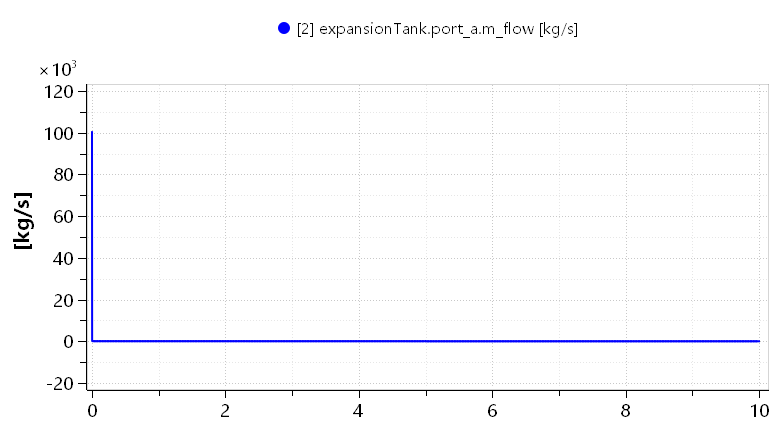

但前五秒简单控制阀后面的管道b口和敞口水箱的a口的流量均为0，如下两图
这是为什么
第二个问题

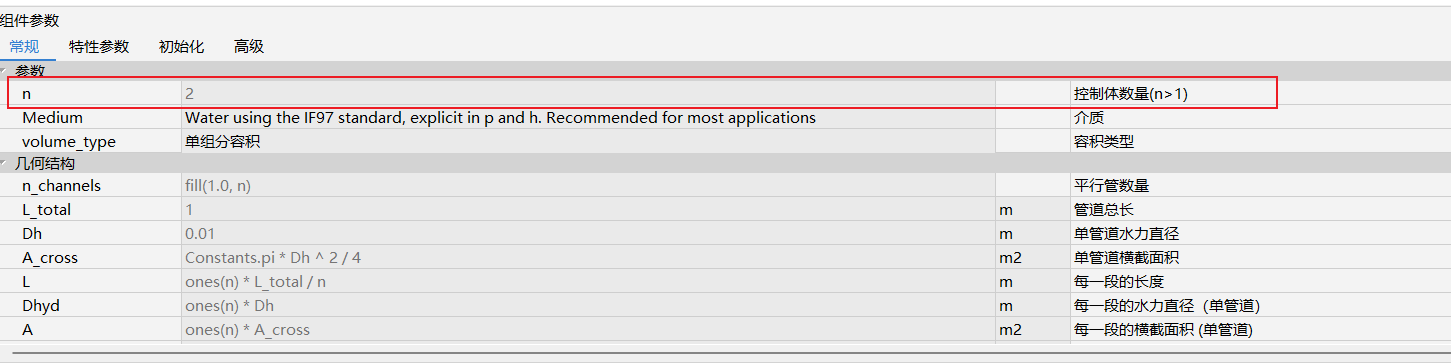

在连接热流边界和管道时，弹出的指定连接器的维度进行连接是什么意思，怎样确定维度要填多少
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
