为什么一个重物在一个斜坡上，v=0时，重物不沿斜坡下滑
一般问题
发布于 2025-10-30 16:45:21
查看 11过去241天

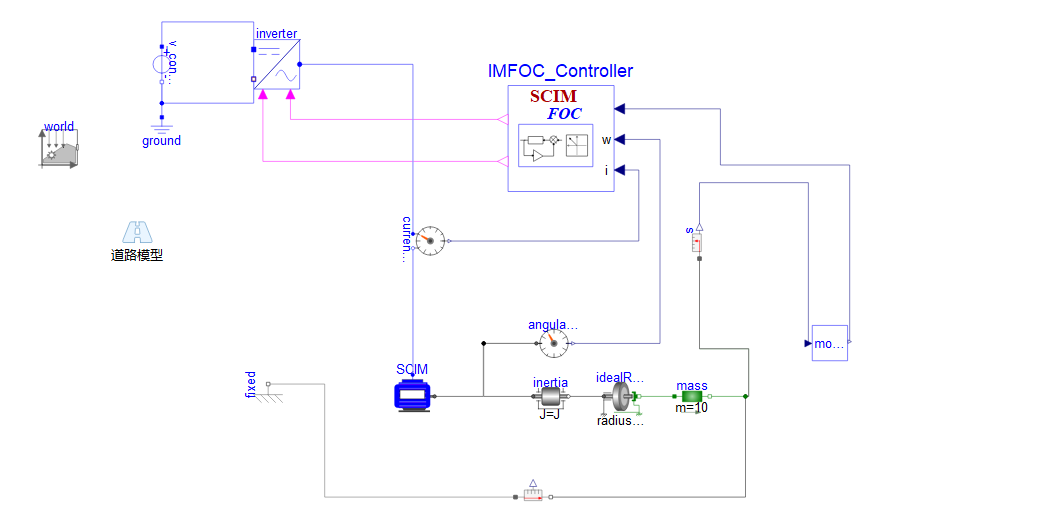

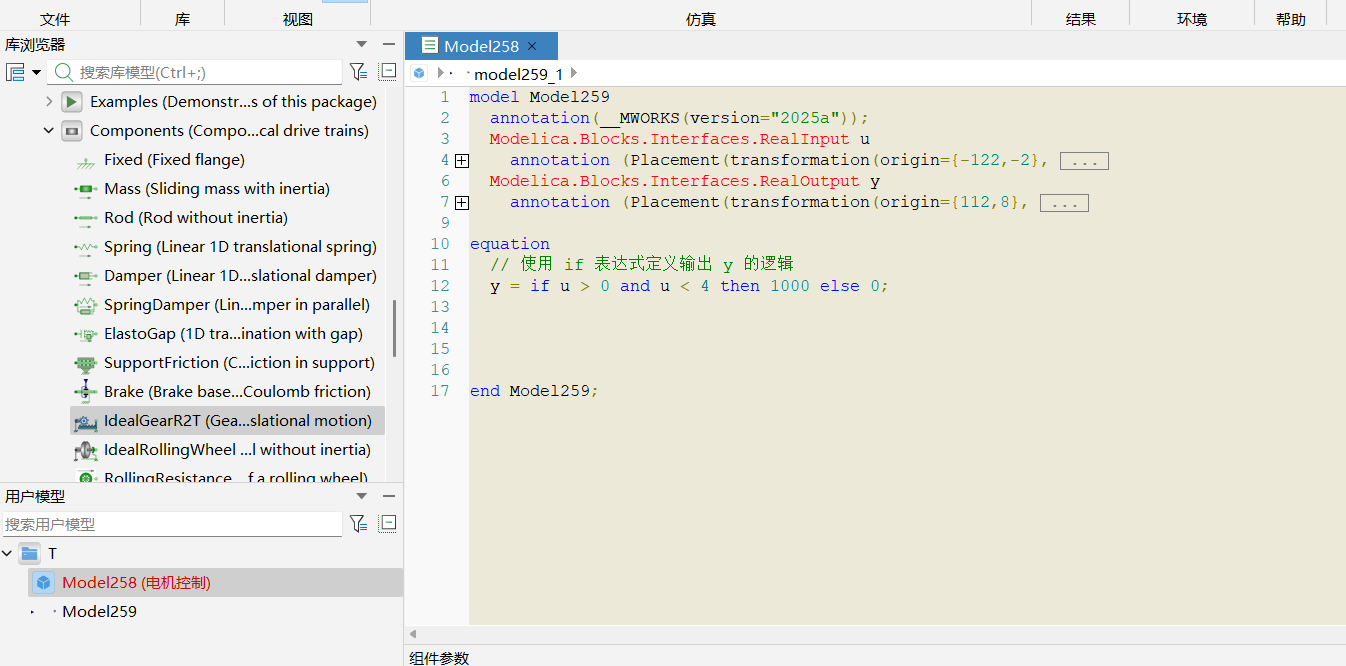

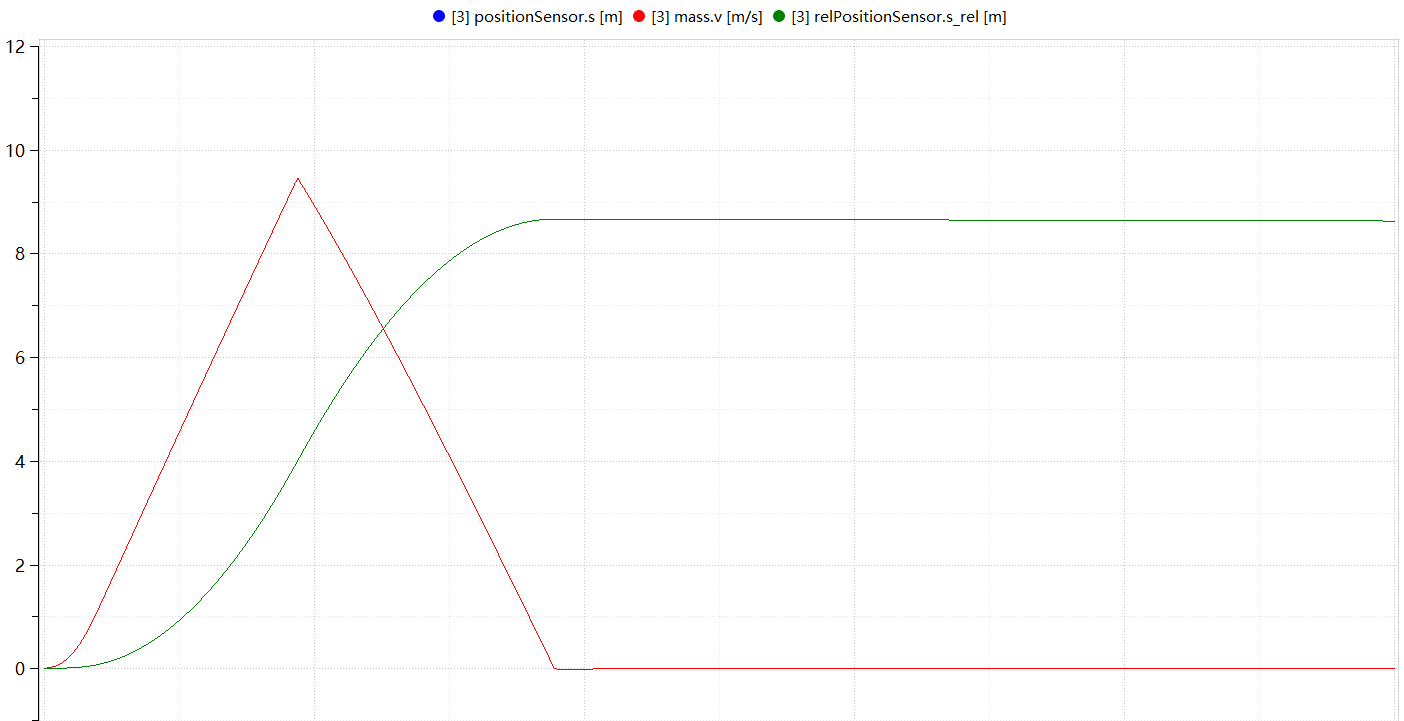

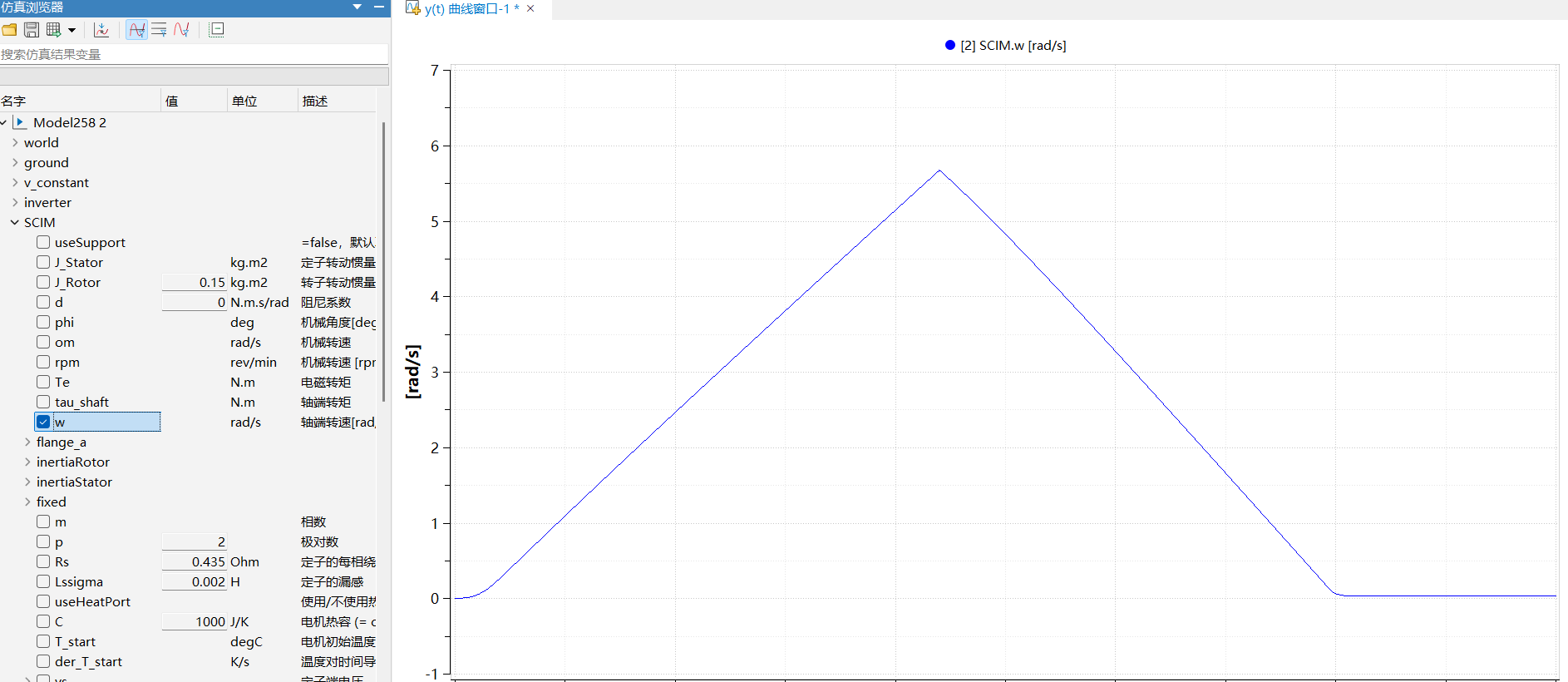

使用road组件定义了斜面，电机开始拉重物在斜坡上滑动，当位移>5时，让电机的输出转矩为0，按理说重物会开始从斜坡滑落，但不管是相对位移还是绝对位移，重物都在斜坡处停了下来，而且之后重物速度v=0，如果下滑，v应该开始变成负值，是设计出现什么问题了？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
4 个附件(7kb) 专栏
标签
高校专区
4 个附件(7kb) 全部回答 1
发布于 2025-10-31 08:48:40
您好，道路模型当前模型中并不生效，因为该模型适用于车辆模型库，相关变量及参数无法被其他组件获取使用。
建议您根据Modelica语法开发相关模型。
