三个问题，谢谢解答
通用套管式换热器的本级疏水接口和上级疏水接口是什么意思
在设置流量边界条件时，我想要将单位改成标方每小时，该怎么做
给定流量的气体经升温降温后排到大气中，请问大气该怎么表示
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
三个问题，谢谢解答
通用套管式换热器的本级疏水接口和上级疏水接口是什么意思
在设置流量边界条件时，我想要将单位改成标方每小时，该怎么做
给定流量的气体经升温降温后排到大气中，请问大气该怎么表示
您好，

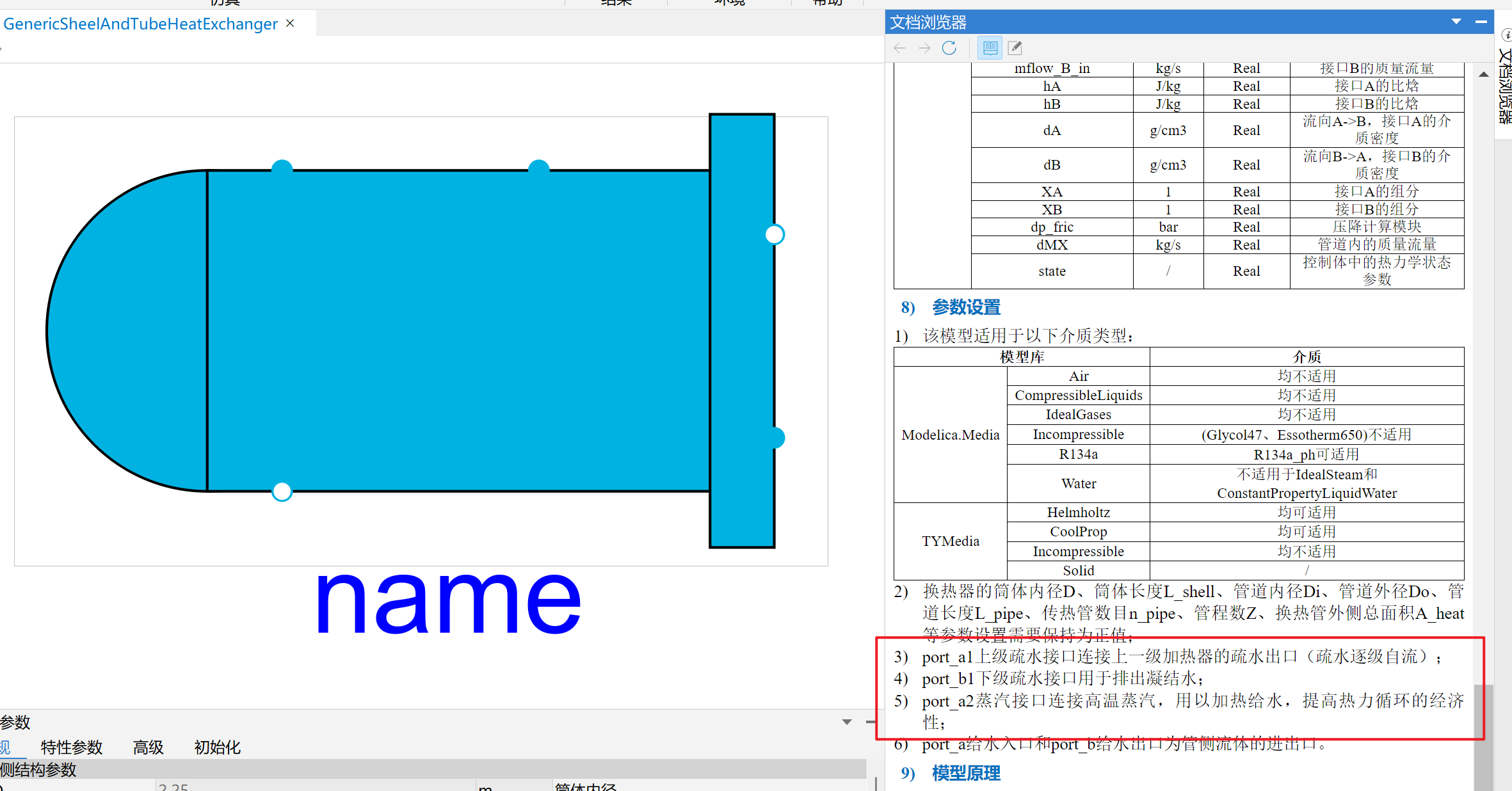

问题1 文档浏览器里有解释 请问您使用的是通用管壳式换热器吗？ 麻烦您确认一下，套管式换热器没有这两个接口
问题2 流量单位暂不支持修改，先换算后输入
问题三，接入大气用压力边界表示，压力设置为大气压
